REPLACEMENT KIT FOR FUHR 3 ROLLER AUTOMATIC MULTIPOINT LOCK – Golden Locks Inc .

REPLACEMENT KIT FOR FUHR 3 ROLLER AUTOMATIC MULTIPOINT LOCK

Hoppe
$261.25
Door Handing

REPLACEMENT KIT FOR FUHR 3 ROLLER AUTOMATIC MULTIPOINT LOCK

Part Number: 4990201-KIT

PLEASE READ
3 Roller Automatic Mutipoint Lock Replacement Kit with 37 inch Handle height
Used to replace the Fuhr 3 Roller Automatic Version Multipoint Lock
This is a Kit that Includes a Bottom Multipoint Lock Gear, Top Extension, Stainless Steel Screws, Underplate and Auto Release Roller Strike
Optional Strike Plates: Nickel or Oil Rubbed Brass

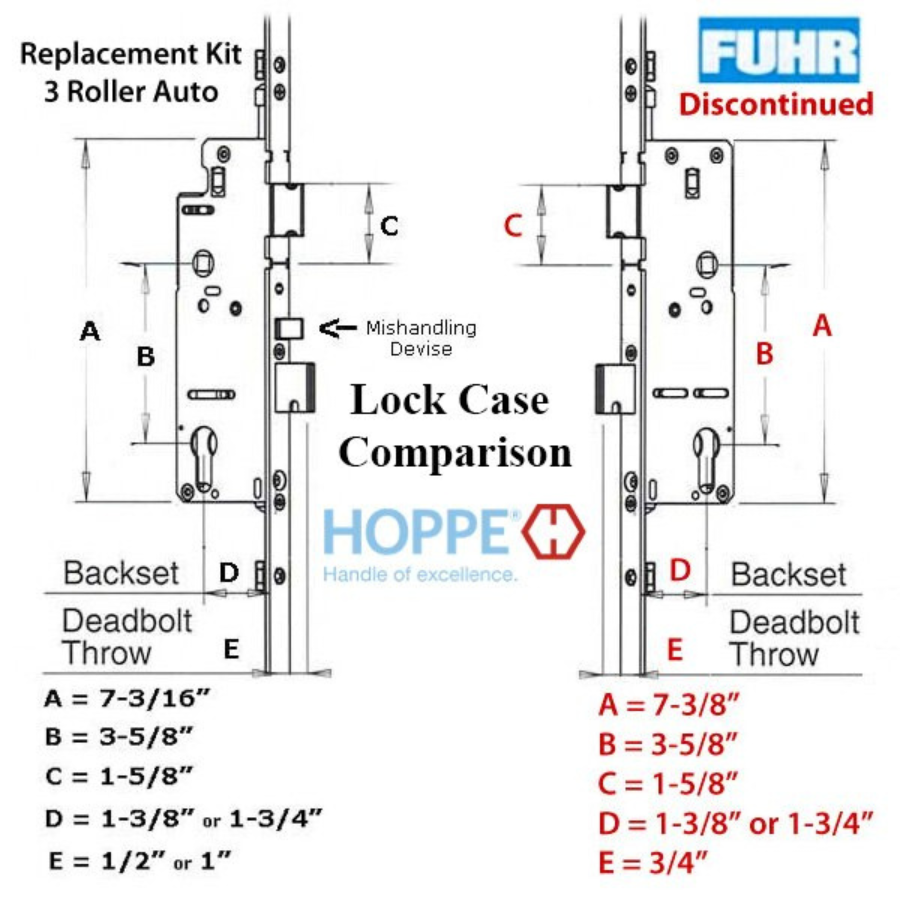

COMPARISONS:

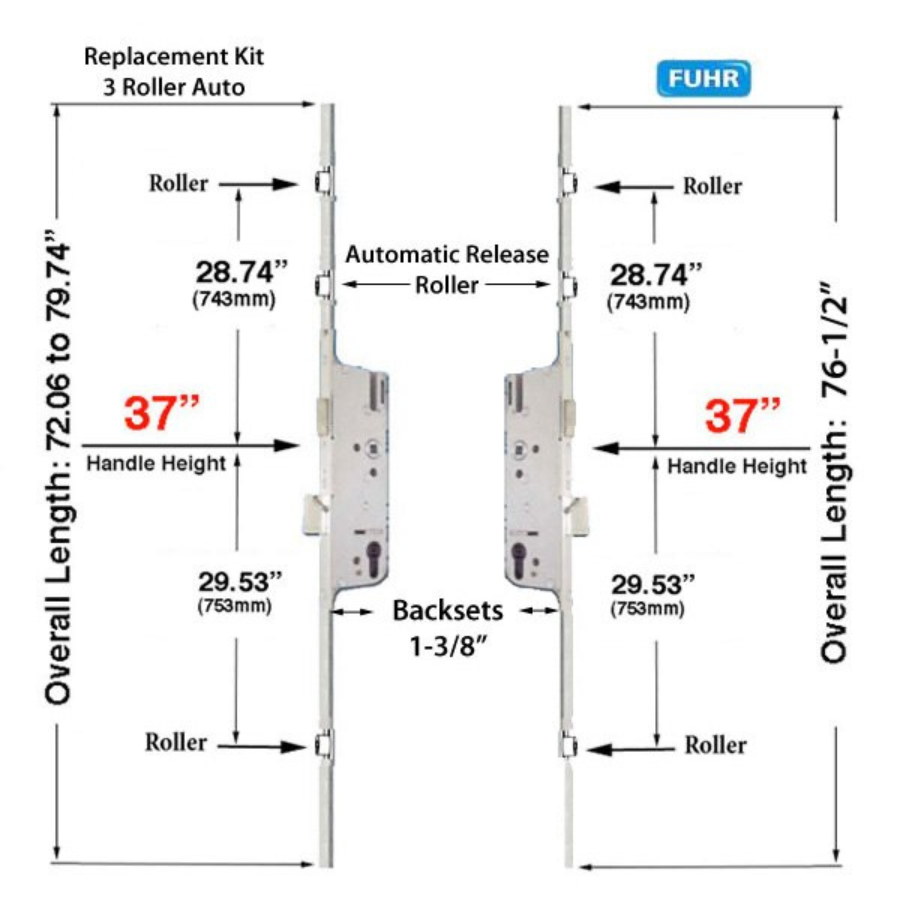

Fuhr 3 Roller Automatic vs. Replacement Kit 3 Roller AUTOMATIC Version

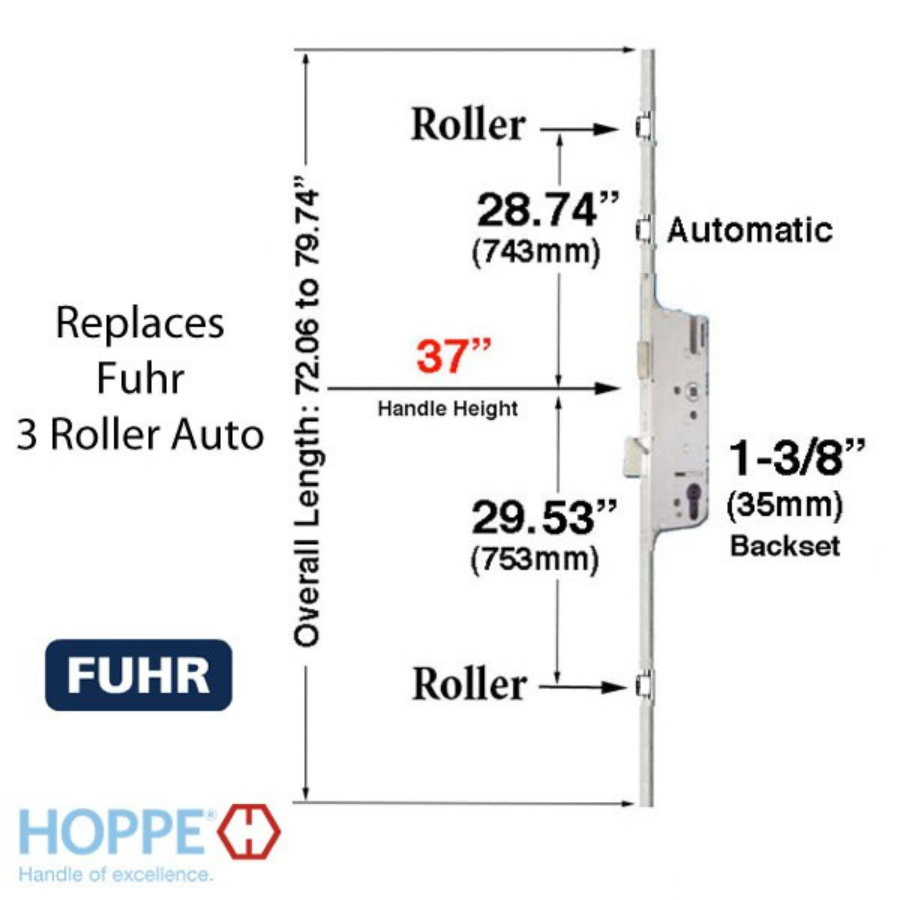

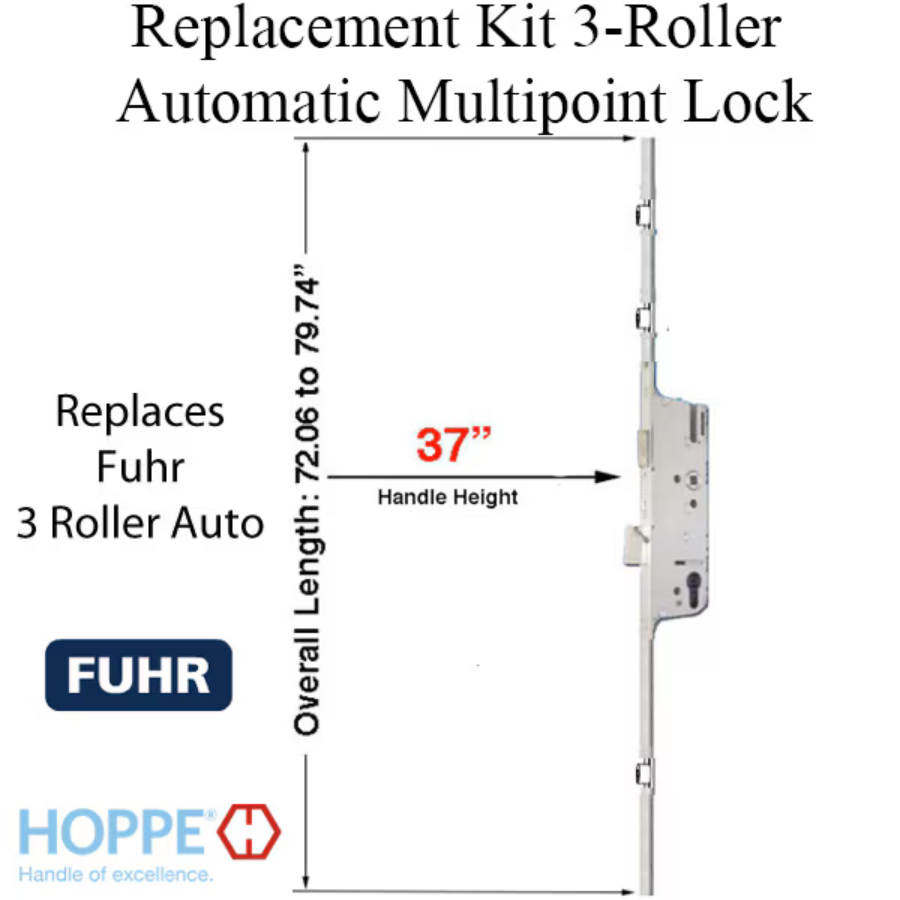

Handle Height: Fuhr - 37 inches, Replacement Kit - 37 inches (940mm)
Faceplate Width: 5/8 inch (16mm) wide - Same
Backset: 1-3/8 inch (35mm) - Same
Bottom Roller Position: 29.53 inches (750mm) when locked - Same
Top Roller Position: 28.74 inches (730mm) when locked - Same
Deadbolt Throw: Fuhr - 1/2 inch, Replacement Kit - 1 inch (25.4mm)
Automatic Release Roller: 6.38 when locks engage, 7.25 in Unlocked Position
Fuhr Overall Length: 76.5 inches - Heights vary by door
Replacement Kit Overall Length: 79.25 inch (2013mm) with 37 inch handle height
This lock is croppable up to 8.66 inches (20mm)

NOTES:
NOTE 1: The roller located about 7.25 inches (184mm) above the handle on the Fuhr lock is to trigger the automatic locking function. If replacing with the Replacement Kit - 3 roller Automatic Version, it will require replacing the Jamb strike with a new version.

NOTE 2: The Fuhr auto-roller moved horizontal the Replacement moves vertically. The rollers should move up and lock into place when the handle is depressed.
Once the door is closed, the auto pin hits the Auto Release strike and releases the rollers to the locked position (down).

NOTE 3: Roller is adjustable - The roller adjusts only in its spin, not up or down

2771546 Gear For FUHR Replacement Kit

2771511 Top Extension For FUHR Replacement- 40.6” Length

8778515 Top Extension For FUHR Replacement - 41” Length

8783867 Auto Release Strike FUHR Replacement (Brass)

8783871 Auto Release Strike FUHR Replacement(Stainless)

8784775 UnderPlate For Auto Release Strike FUHR Replacement - Brass

8784783 UnderPlate For Auto Release Strike- Stainless

8785695 Screws for FUHR Replacement 15 per kit
