Alarm Lock DL5200 Advanced Double-Sided Lock, Finish-Satin Chrome – Golden Locks Inc .
Sale

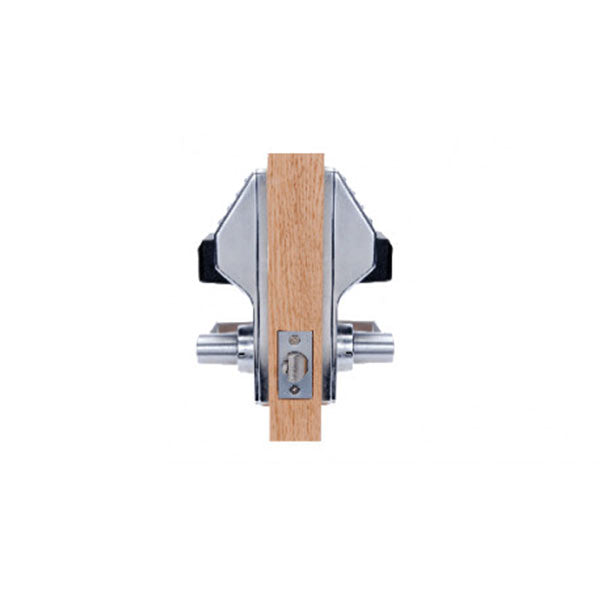

Alarm Lock DL5200 Advanced Double-Sided Lock, Finish-Satin Chrome

Alarm Lock
Alarm Lock CYLINDRICAL LOCKS
$1,800.00 $1,250.00
Door Handing
Function :

DL5200/26D

DETAILS: ALARM LOCK DL5200 ADVANCED DOUBLE-SIDED LOCK, FINISH-SATIN CHROME

Double sided electronic battery operated digital lock. Holds up to 100 user codes,

1 Master, 10 Manager codes & up to 3 one time user codes. Programmable keypad

on both sides of the door. Key override is only operable on the primary side. The key

on the secondary side is used only to remove the lever and access the batteries.

Features

  • Incorporates all of the important features of the most-popular Trilogy DL2700 (T2) into a double-sided lock
  • Keypad programmable for up to 100 users
  • Programming user codes on one side of the door work both sides, cutting your time and labor in half.
  • Comes in standard prep and IC models with LED and audible entry indicators, 5AA batteries and runs 80,000 cycles typical.
  • For outdoor use too. Standard in weatherproof to withstand temperatures of -31?F to 151?F (-35? to 66?C).

Specifications

Door Thickness
Fits 1 5/8" to 1718"
Backset
2 3/4" (2 3/8" also available. Must specify when ordering)
Strike
1 1/8" x 2 3/4" T strike & 1 1/4" 14 7/8" ASA strike included
Latch bolt
UL Listed, lire rated 3 hours, 112" throw, reversible
Handing
Non-handed
Power
4 AA alkaline batteries (included)
Keypad
All metal, 12 button
Door Prep
Basic functions programmed through keypad Standard ANSI A115 Series prep, modified by adding additional through-bolt holes
Compliances
BIIMA Certified Grade 1 heavy duty cylindrical lockset UL Listed IOC Positive Pressure Specification. FCC Certified ADA compliant levers
Cylinder
6 pin solid brass. SCY1 keyway furnished with all key override locks Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can he used with the 11W620 tailpiece (supplied)
Interchangeable Core Models
Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow only

AVAILABLE MODEL NUMBERS AND COMBINATIONS

Model/SKU Attributes
DL5200/26D Standard key Override
DL5200IC/26D Interchangeable Core (BEST, FALCON, ARROW, KSP)
