| Model & Feature | DL2700 | DL2700LD | DL2700CR/DB | DL1200 Series | ETDL27 Series |
| Lock Type | Cylindrical | Cylindrical | Mortise | Narrow Stile | Exit Trim for use w/ Panic Device |
| User Codes | 100 +3 +1 | 100 +3 +1 | 100 +3 +1 | 100 +3 +1 | 100 +3 +1 |
| Code Length | 3-6 digits | 3-6 digits | 3-6 digits | 3-5 digits | 3-6 digits |
| Programming | Keypad only | Keypad only | Keypad | Keypad | Keypad |
| Vandal-Proof Keypad | All metal, 12 button. For Double-Sided Keypads:Model DL5200 | All metal, 12 button | All metal, 12 button | All metal, 12 button | All metal, 12 button |
| Trim w/Rugged Clutch | Straight or curved lever | Straight or curved lever | Straight or curved lever | Straight or curved lever, thumbturn or knob | Straight or curved lever |
| Dimensions, Outside | 3-1/4”W x 8”H, 6-3/8” at lever | 3-1/4”W x 8”H, 6-3/8” at lever | 3”W x 11-1/16”H, 6-3/16” at lever | 14-3/8”H x 1-5/8”D x 13⁄4”W | 3”W x 11-1/16”H, 6-3/16” at lever |
| Privacy/Lockout | Lockdown Indicator bar & Keyfob incldd | ||||
| Special Model Ordering | Option - Double Sided Keypad Access, DL5200 | CR Classroom or DB Deadbolt | Option - Narrow Stile Exit Trim DL1200ET | ||
| Weather-Proof -31 to 151˚ F | WP version | Standard | Standard | Standard | Standard |
| Handing | Nonhanded | Nonhanded | Handed; Field Reversible | Nonhanded | Nonhanded |
| Door Thickness | 1-5/8 to 1-7/8” (others on request.) | 1-5/8 to 1-7/8” (others on request.) | 1-5/8 to 1-7/8” (others on request.) | 1-3/4” | 1-5/8 to 1-7/8” (others on request.) |
| Backset | 2-3/4” (included); 2-3/8”option. | 2-3/4” (included); 2-3/8”option. | 2-3/4” (included) | 31/32, 1-1/8 & 1-1/2" | |
| Cylinder | Large key-in-knob, incld -or- IC Prep for Best/Falcon/Arrow (w/o cyld.) | Large key-in-knob, incld -or- IC Prep for Best/Falcon/Arrow (w/o cyld.) | 1-3/8" mortise cylinder, supplied. | Generic Rim cylinder, supplied. 1-1/8, 1-1/4, 1-3/8” supported. | Generic Rim cylinder, supplied. Other mfrs. - Cylinder Adapters must be ordered separately. |
| Special Order Cylinders | Yale, Medeco, Sargent, Corbin/Russwin, Schlage | Yale, Medeco, Sargent, Corbin/Russwin, Schlage | (Others available on request thru factory) | ||
| Relay Options | yes | yes | yes | yes | yes |
| Battery/Cycles Typical | 5AA; 200000 or up to 5 years | 5AA; 100000 or up to 3 - 4 years | 5AA; 60000 | 2-3VLithium, 100000 | 5AA; 60000 |
| Ratings | BHMA Grade 1 Lockset; 3hr. Fire Rated UL | BHMA Grade 1 Lockset; 3hr. Fire Rated UL | 3hr. Fire Rated UL | 3hr. Fire Rated UL | |
| Architectural Finishes | US26D, US3, 10B | US26D, US3, 10B | US26D, US3, 10B | US10B,US26D,MS, MB | US26D, US3, 10B |

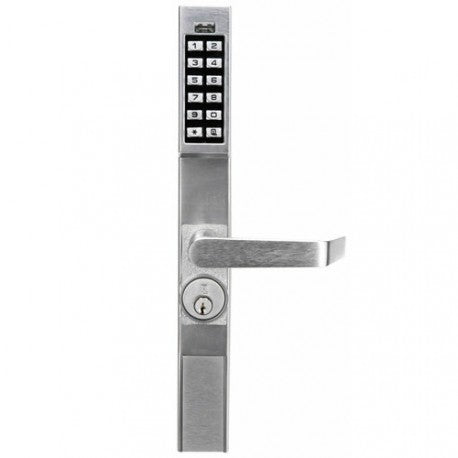

Alarm Lock DL1200 Series Trilogy Narrow Stile Digital Keypad Lock Exit Trim-4710, 4730, 4900 Series
DL1200/26D1
DETAILS: ALARM LOCK DL1200 SERIES TRILOGY NARROW STILE DIGITAL KEYPAD LOCK EXIT TRIM-4710, 4730, 4900 SERIES
Description
This keypad lock provides up to 100 codes with a digital keypad for access but does not include a latch or deadbolt. Trilogy features global lockdown in seconds and eliminates door-to-door programming and audit trail queries by communicating wirelessly via ethernet or 802.11. All Trilogys feature the same rugged dependability, and tool-free keypad programming, easy wireless installation, in under an hour, and all have unsurpassed battery life with standard off-the-shelf batteries. Whether you are replacing standard cylindrical door knobs or retrofitting maintenance-prone mechanical pushbutton locks or looking for a more quickly deployed, down-time-free alternative to a hardwired access system Alarm Lock's Trilogy is the access control solution you need. Just ask the growing list of hospitals, universities, retailers, airports, pharmacies and offices who standardize on them nationwide.
Features
- Aluminum door retrofit outside trim for Adams Rite® 1850, 1950, 4710, 4070, 4730, 4900 Series
- Add keyless convenience to mechanical latch locks from Trilogy's all-metal, vandal-resistant 12-button keypad
- DL1200 supports 100, 3-6 digit PIN user codes , fingertip programmable
- Long-life, battery- operated for 80,000 cycles, typ.on 2 lithium 3V batteries, supplied; low battery alert
- Compact styling 14⅜"H × 1⅝"D × 1¾"W
- Key override mortise cylinder, 1¼" supplied. (Supports 1⅛", 1¼" and 1⅜").
Specifications
- Backsets
- 31/32",1⅛" and 1½" ; Stile thickness 1¾"
- Non-handed
- fully field-reversible
- Finish
- US26D satin chrome
Alarm Lock is one of those rare companies whose success was trumped only by themselves. They began as leading manufacturers with their highly innovative Sirenlock panic exit alarms and have since enjoyed an even bigger success with the Trilogy Line of keyless access control solutions. Alarm Lock's innovative products are tested to stand up to the toughest situations and priced to fit any budget, ensuring they can deliver "a lock for every door."
Alarm Lock guarantees that their access control solutions can be applied to all security situations, and the Alarm Lock DL1200 Series Trilogy™ Narrow Stile Digital Keypad Lock Exit Trim for Adams Rite 4710-4900 is their testament to this. The Trilogy line is constantly upgrading and advancing its technology, whether it's through wireless access control or weather-proof models, Alarm Lock is on the cutting edge. Some features of the Alarm Lock DL1200 Series Trilogy™ Narrow Stile Digital Keypad Lock Exit Trim for Adams Rite 4710-4900 include support for 100 to 2000 PIN codes and HID proximity readers for use with access ID cards or fobs.
ALARM LOCK ELECTRONIC STANDALONE PUSHBUTTON LOCK COMPARISON CHART
AVAILABLE MODEL NUMBERS AND COMBINATIONS
| Model/SKU | Attributes |
|---|---|
| DL1200/26D1 | Satin Chrome, Lever |
| DL1200/10B1 | Duranodic, Lever |
| DL1250/26D2 | Satin Chrome, Knob |
