Schlage CS200-Series Commercial Grade 2 Interconnected Left Handed Mer – Golden Locks Inc .

Schlage CS200-Series Commercial Grade 2 Interconnected Left Handed Merano Entry Lever Set and Full Interchangeable Core Deadbolt with Camelot Escutcheon

Schlage
Schlage Residential Door Levers
$371.09
Door Handing
Finish :
Aged Bronze
Antique Brass
Polished Brass
Polished Chrome
Satin Chrome
Satin Nickel
Deadbolt Strike Plate :
Deadlatch Strike Plate :

Model: CS210RDMER643CAMLH, CS210RDMER609CAMLH, CS210RDMER605CAMLH, CS210RDMER625CAMLH, CS210RDMER626CAMLH, CS210RDMER619CAMLH

Interconnected Commercial Grade 2 Left Handed Merano Entry Lever Set and Full Interchangeable Core Deadbolt with Camelot Escutcheon from the CS200-Series

The Schlage CS200-Series grade 2 interconnected locks are the perfect combination of aesthetics and strength; and with an internal mechanism allowing the deadbolt to be released by turning the interior handle, this lock can help achieve strict life and safety code requirements. Known for accessible egress and dependable security, this lockset has heat-treated steel locking components, and independent heavy-duty lever torsion springs along with its adjustable 4 or 5.5 inch center to center installation capability. With an ANSI A156.25 rating for all 14 lever styles available, and its ADA compliance, this lock set is generally used in medium traffic areas, for a wide array of applications.



Features:

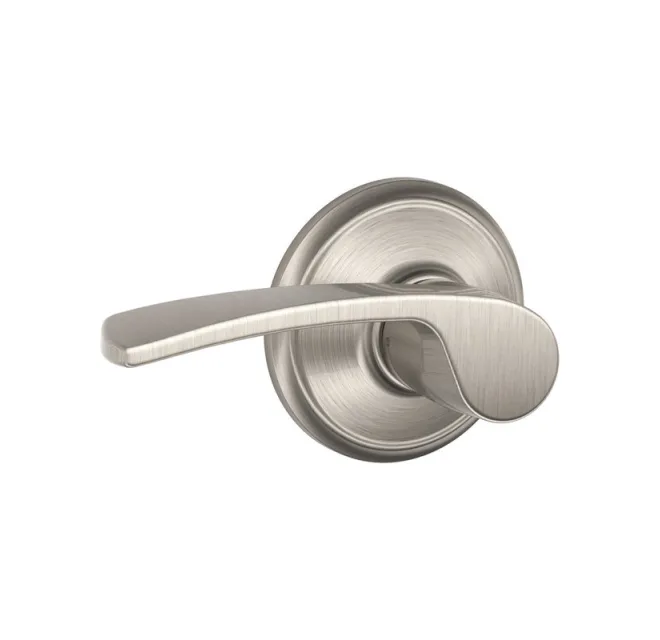

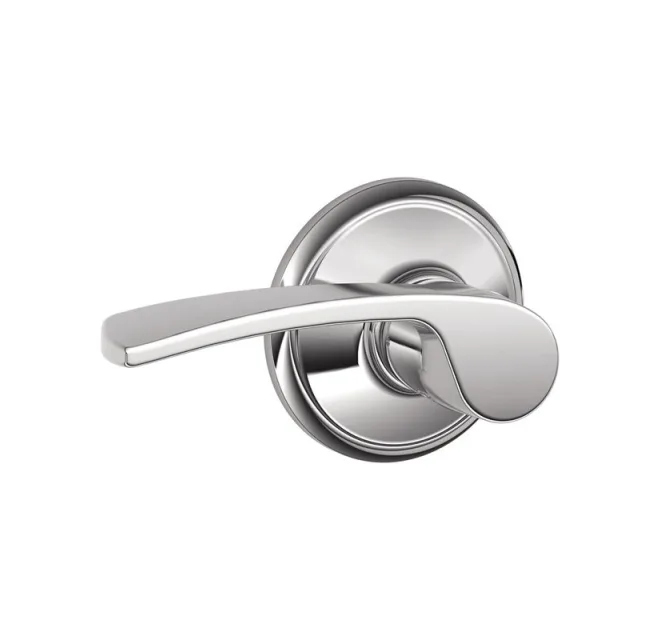

  • Features Merano Levers with Camelot Inside Escutcheon
  • For Left Handed Applications, Image May Not Accurately Depict Handing
  • ANSI Certified A156.12-2005
  • BHMA Grade 2 Certified
  • UL Listed for 3-Hour Fire Door
  • Extra Strength Derived from Heat-Treated Steel Locking Components
  • Durable Heavy-Duty Lever Torsion Springs
  • Versatile Choices for Face and Strike Plates
  • 3 Year Limited Warranty



Single Locking: With a lever that is always free to turn, this single locking entrance set relies solely on the deadbolt for security purposes. The deadbolt is thrown and retracted on the outside with a key, and utilizes a turn knob to lock and unlock from the interior. Another feature of this function is the ability of the interior handle to simultaneously release both the dead latch and deadbolt for safe, immediate exit capabilities.

Full Size Interchangeable Core: This lockset comes with a solid brass 6-Pin cylinder full size interchangeable core.

Specifications:

  • Backset: Adjustable 2-3/8 and 2-3/4 Inch
  • Deadbolt: 1" Housing Diameter and 1" Throw
  • Center to Center: Fits 4 and 5-1/2 Inch Door Preps
  • Door Thickness: 1-3/4 to 2 Inches
  • Projection: 2.625
  • Lever Length: 4.125 Inches
  • Cross Bore: 2-1/8 Inches
  • Edge Bore: 1 Inch

Includes:

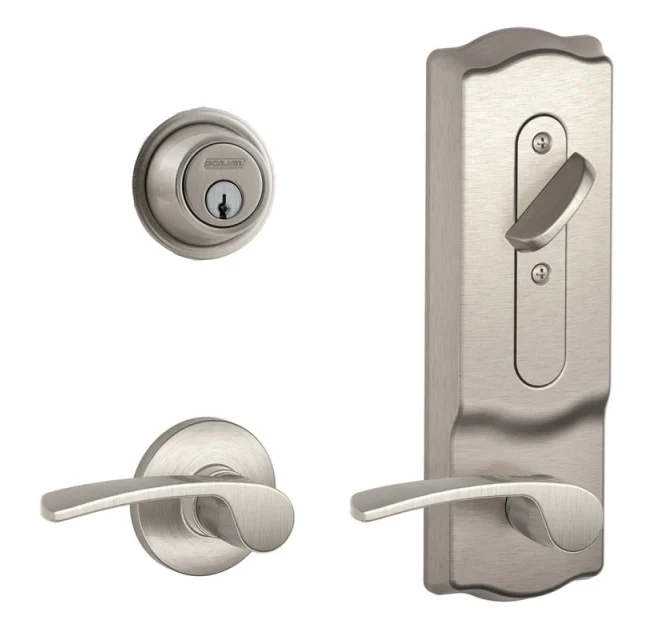

  • Interior and Exterior Merano Lever Sets
  • Interior Camelot Escutcheon
  • 2-3/8" or 2-3/4" Adjustable Backset Deadbolt/Dead Latch - Part Numbers 12-340 and 16-260
  • Selected Strike/Face Plates
  • 2 Nickel Silver Cut Keys

Similar and Related Products:

  • Same Levers with Plymouth Escutcheon: CS210RD-MER-PLY-LH
  • Right Handed Version: CS210RD-MER-CAM-RH
  • Same Design with 6 Pin Cylinder: CS210PD-MER-CAM-LH
  • Same Design with Full Size Less Core: CS210JD-MER-CAM-LH
  • Same Design with Small Format Less Core: CS210BD-MER-CAM-LH

For over 90 years, Schlage has been making homes more stylish and secure with the best door locks and door hardware. Today the Schlage family of products also includes the very best in electronic locks, keyless door locks, and home security. Let Schlage's hardware and security solutions protect and enhance the things that matter most to you.

Dimensions and Measurements
Backset: 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Center to Center: 4, 5.5 in.
Cross Bore: 2-1/8"
Deadbolt Throw: 1"
Door Thickness: 1-3/4", 2", 1-7/8"
Edge Bore: 1"
Handle Length: 4.125 in.
Handle Projection: 2.625 in.
Latch Throw: 0.5 in.

Included Components
Cylinder Included: Yes
Interchangeable Core: Yes

Characteristics and Features
Concealed Screws: Yes
Cylinder Type: Single Cylinder
Function: Keyed Entry, Entrance, Single Cylinder
Handing: Left
Handle Design: Merano
Interchangeable Core Type: Full Size
Interconnected: Yes
Keyway: C123
Latch Faceplate: Round Corner, Square Corner
Lever Shape: Scroll
Material: Brass
Mortise: No
Style: Commercial
Theme: Basic
