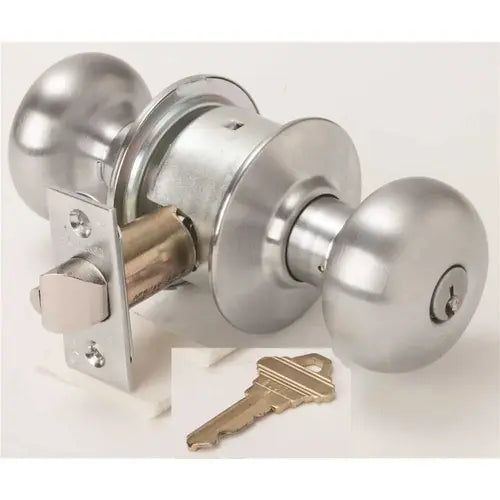

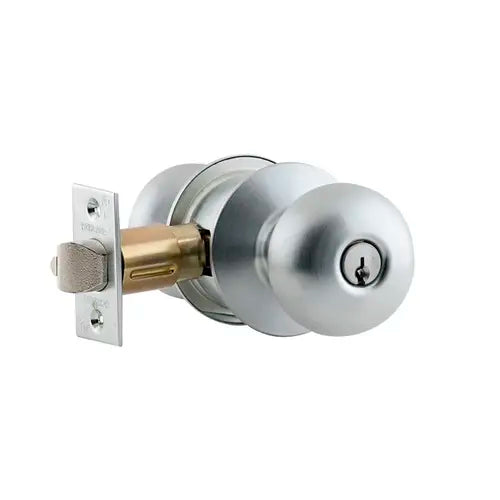

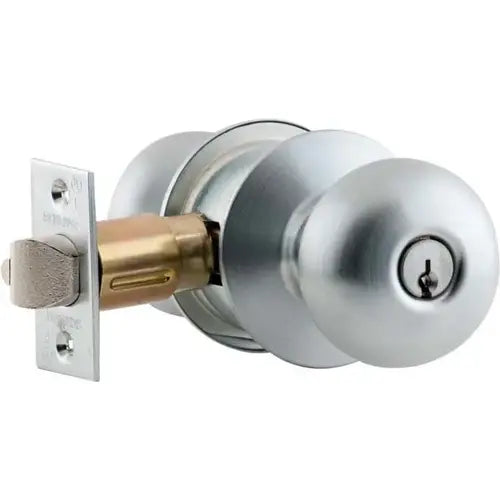

Schlage Commercial Plymouth Satin Chrome Residential Entry Lock, A53PD PLY 626
item # A53PD PLY 626
Features :
- Entry - Turn/Push Button Locks Outside Knob Until Unlocked with Key or Rotating Inside Turn
- ANSI/BHMA Certified A156.2
- 1-3/8" to 1-7/8" Door Range
- UL Listed for 3 Hour Fire Door
- Commercial Grade 2
Cold-Rolled Steel, and Machined and Threaded Hubs Prevent Loosening of the Lockset by Bolting the Chassis to the Door; Heavy-Duty Cast Mounting Plate With Specially Tapped Holes, Keeps Lockset Tight on the Door
Latch Corner : Square
Knob/Lever Size : 2-1/8 Inch
Latch Bolt Material : Brass
Knob Style Family : Round Flat Knob
Sub-Series : CL_Cylindrical_Locks_schlage_commercial_174
Backset size (in.) : 2-3/8 in
Required door thickness (in.) : 1-3/8 in.
A SeriesCylindrical locks
The A Series cylindrical lock is Schlage's first lock and continues to exceed ANSI/BHMA Grade 2 standards, allowing it to be used in a wide range of commercial and residential applications. A Series locks are available in ten finishes and five trim designs allowing it to fit any new or existing environments.
Specifications: Handing:
- Keyed functions are reversible. Non-keyed functions are not handed
Door thickness:
- 1 3/8" to 1 7/8" (35 mm to 48 mm) standar
Backset:
- 2 3/8" (60 mm) standard. 2 3/4" (70 mm)
Front:
- Steel. 1 1/8" x 2 1/4" square corner, beveled, for 2 3/4" backset standard. Optional 1" square corner, 1" radius corner, and non-UL drive-in/round face
Lock chassis:
- Steel, zinc dichromate plated for corrosion resistance
Latch bolt:
- Brass, chrome plated, 1/2" throw, deadlocking on keyed and exterior functions
Exposed trim:
- Wrought brass, bronze or stainless steel. Levers are pressure cast zinc, plated to match finish symbols
Strike:
- T-strike 1 1/8" x 2 3/4" (29 mm x 70 mm) x 1 1/8" (29 mm) lip to center with box standard
Cylinder and keys:
- Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock
- Residential: 6-pin C keyway, keyed 5-pin
Keying options:
- Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying.
Warranty:
- Commercial: three-year limited.
