Sargent 12-8713Trim Fire Rated Surface Vertical Rod Exit Device w/ 713 – Golden Locks Inc .

Sargent 12-8713Trim Fire Rated Surface Vertical Rod Exit Device w/ 713 Classroom Lever Trim

Sargent
Surface Vertical Rod Exit Device
$2,878.35
Door Handing
Color :
Trim Cylinder :

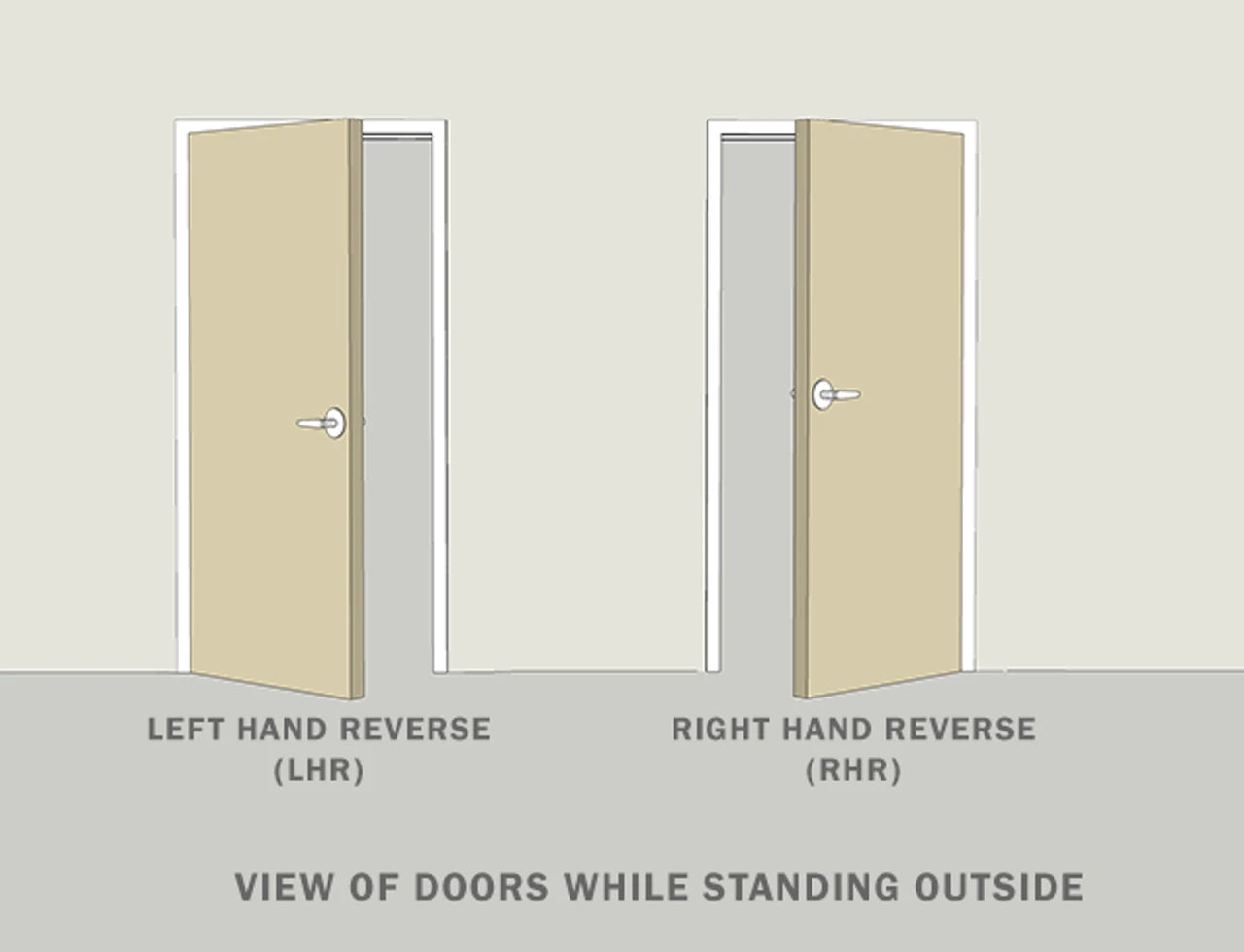

Handing :
SKU : 12-8713F ETL
Series: 80 Series
Dogging Options: Less Dogging
Trim Function: Classroom
Lever Trim: 713 ETL Trim - Cylinder included
ANSI Number: ANSI/BHMA A156.3 - Grade 1

Sargent 12-8713 ETL Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, Fire Rated, For 7 Foot Door Height, with 713 ETL Classroom  Function, L Lever with Escutcheon, Less Dogging

Designed for standard width stile applications on wood and metal doors.

Trim Function: Classroom
Key outside unlocks/Locks trim

Features:
• Two point latching (top & bottom with adjustability through center case)
• Standard bottom latch compatible with latch track thresholds (by others)
• Single and double door applications
• ANSI/BHMA A156.3 - Grade 1
• UL10C (Fire) and UL305 (Panic) Listed
• Rods are 1/2" (13mm) brass, bronze or stainless steel
Note: The 8700 Exit Device can not be used less bottom rod. If less bottom rod is desired, specify NB8700 Series Exit Device

Size:
E - 32" (For 24" to 32" doors) - No cutting required for 32" (81cm) door
F - 36" (For 33" to 36" doors) - No cutting required for 36" (91cm) door
J - 42" (For 37" to 42" doors) - No cutting required for 42" (107cm) door
G - 48" (For 43" to 48" doors) - No cutting required for 48" (122cm) door

Dogging Feature: Less dogging

Door Type: Wood or Metal Doors

Door Thickness: 1-3/4" (44mm) minimum thickness

Stile: 4-1/2" (114mm) minimum stile width with trim and 3-1/2" (44mm) minimum stile without trim

Strike: 646 Top Strike (Panic and Fire Rated), 624 Bottom Strike

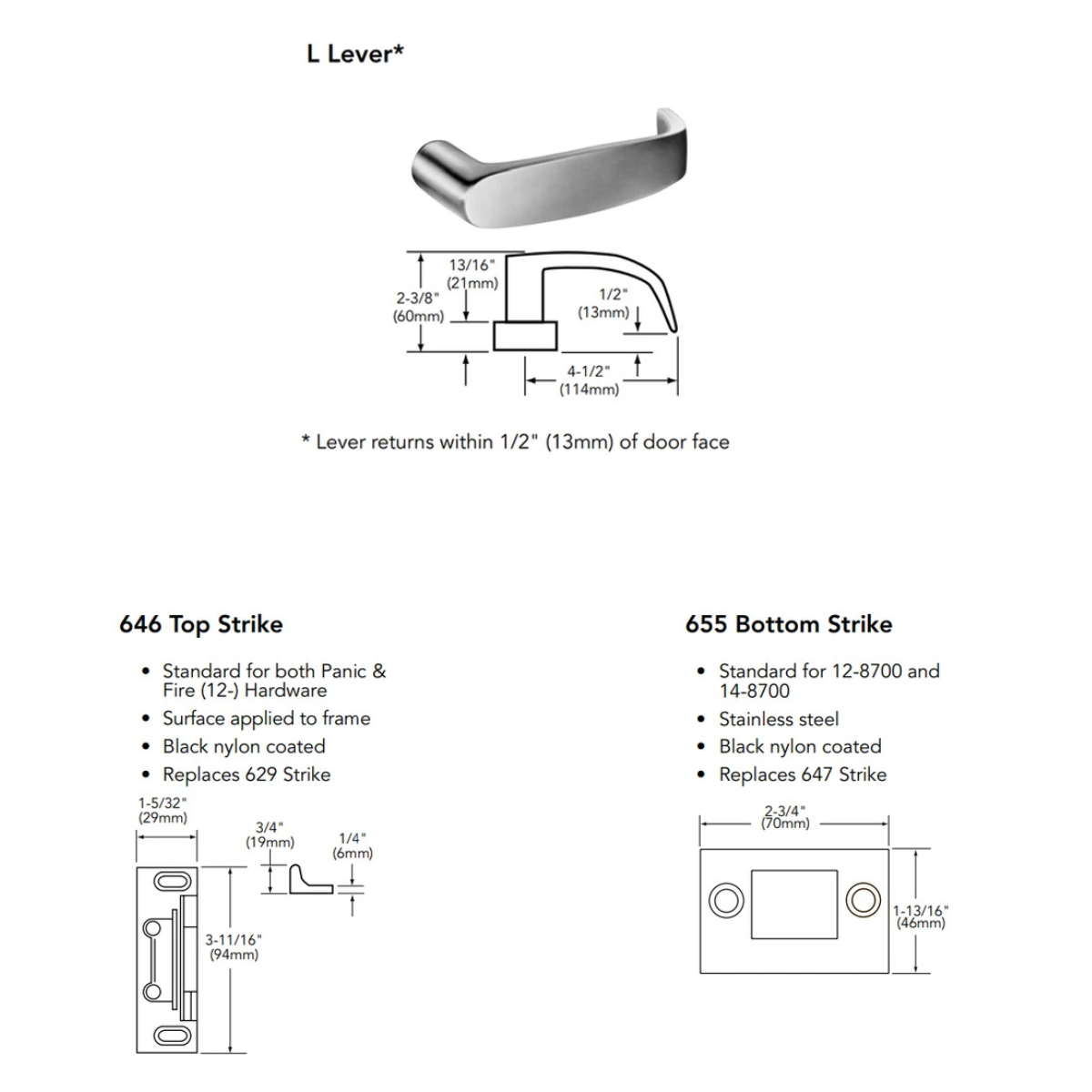

646 Top Strike
• Standard for both Panic & Fire (12-) Hardware
• Surface applied to frame
• Black nylon coated
• Replaces 629 Strike

655 Bottom Strike
• Standard for 12-8700 and 14-8700
• Stainless steel
• Black nylon coated
• Replaces 647 Strike

Mounting Fasteners: Supplied standard with wood and machine screws

Top & Bottom Bolt: Brass, Stainless steel

Device Centerline from Finished Floor: 41" (1041 mm) for Standard Applications; 38" (965mm) for elementary schools

Door Height: 7 Foot

Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)

Projection: Pushbar Neutral – 3" (76mm). Pushbar Depressed – 2-1/8" (54mm)

Trim Specifications

Cylinder Type: Mortise Cylinder - LA Keyway

Lever Style: L Lever

Lever Height: 2-3/8 Inch

Lever Length-Inches: 4-1/2 Inch

Trim Plate Width: 1-13/16 Inch

Trim Plate Height: 8-1/16 Inch

Product Projection: 3-9/16 Inch

Trim Plate Thickness: 13/16 Inch

Trim Handing: Device is handed.

Finishes: 32D - Satin Stainless Steel, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, BSP - Black Suede Powder Coat,
3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 32 - Bright Stainless Steel.
