Part Number : 322201H

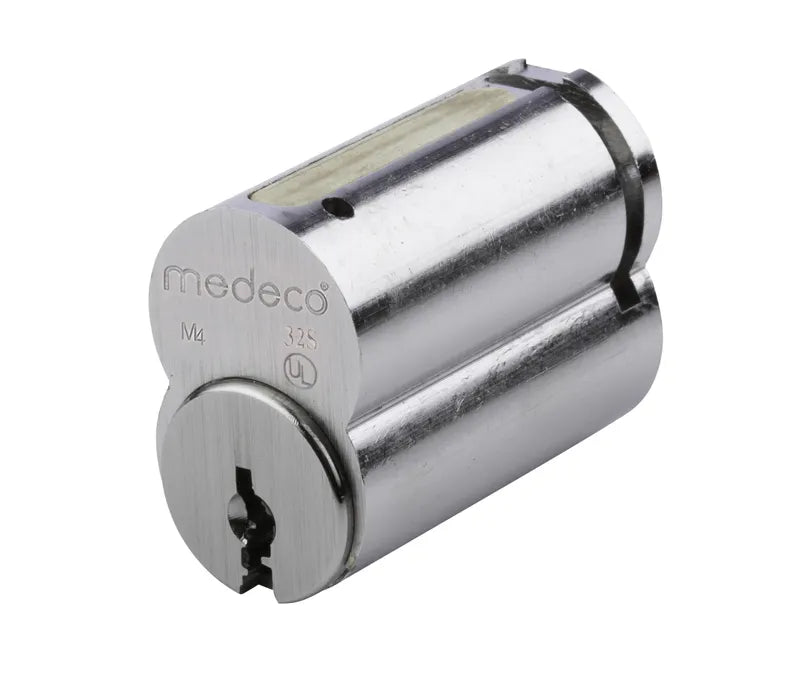

Medeco 4 Large Format Interchangeable Core (LFIC) cylinders are UL 437 listed to stand up to drilling, picking, and other forms of physical attack.
They meet ANSI 156.30, assuring patent protected key control and physical strength. And the ANSI A156.5 Grade 1 certification assures consistent quality for heavy use applications.
M4 LFICs allow cores to be changed without having to take the entire lock apart.
LFIC cylinders are often used in commercial applications where personnel turnover is higher and where rapid rekeying is needed.
Features :
-
Medeco 4 cylinders meet or exceed ANSI/BHMA A156.30 and 156.5 Grade 1 high security criteria, which includes testing for strength, durability, and resistance to surreptitious entry along with patented key control.

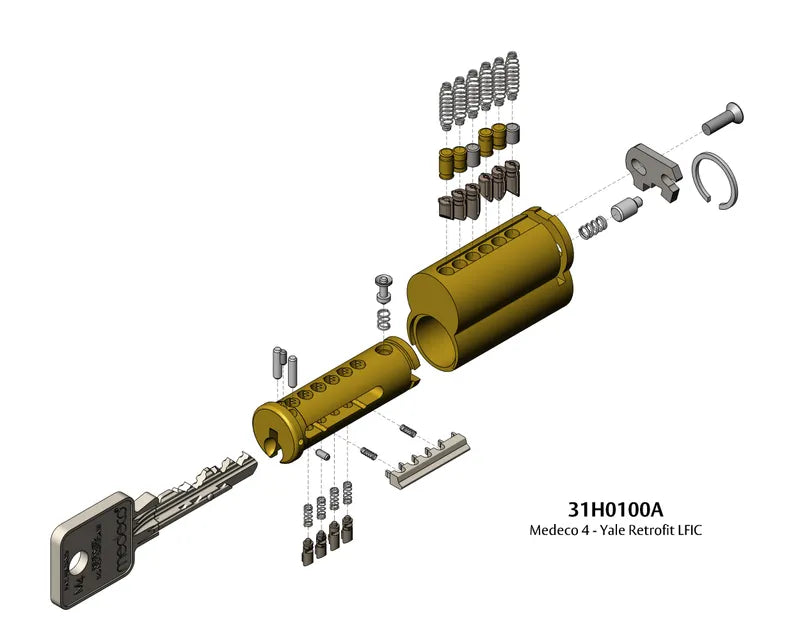

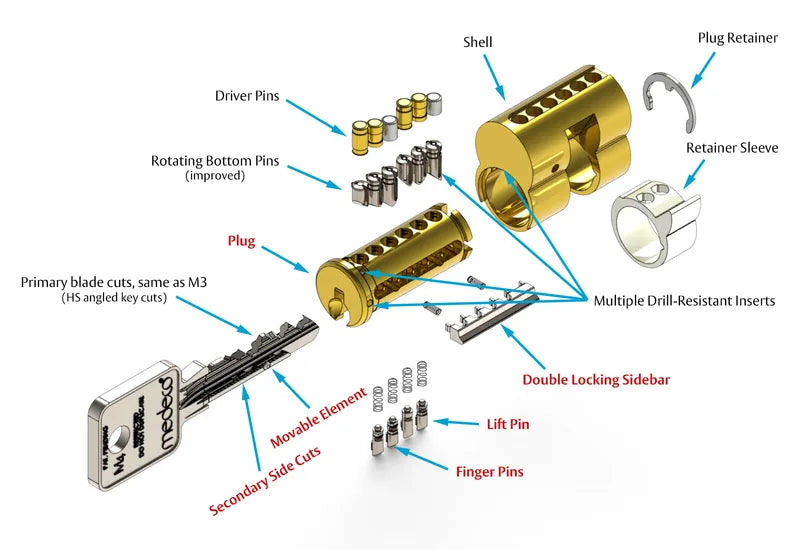

Medeco 4's cylinder design includes 4 Side Pins made up of 3 Finger Pins and 1 Lift Pin. The Lift Pin is activated by contact with the movable element in the key, providing a high level of pick resistance.
Patented key control provides protection against the unauthorized duplication of keys.
UL 437 listing provides assurance that cylinders meet universal standards for endurance, drill and pick resistance, and resistance against other types of forced attack.
Patented movable element in the key deters unauthorized 3D printed copies of keys or blanks.
Angled cuts on the keys, along with rotating pins, provide added dimensions that dramatically increase key combinations. Secondary side pin bitings provide even greater combinations, making very large systems possible.
Cylinder side pins and a lift pin which engage the sidebar prevent the key from turning until the elements are aligned in the correct position, protecting against bumping and picking.
If you are able to cut Biaxial or Medeco 3 keys, you are able to cut Medeco 4 keys on the same equipment.
Finger Pins work with Secondary Side cuts on the key to provide increased security and greater potential combinations.
Enable quick and easy cylinder change using a special control key to remove the cylinder (core) from the lock housing.
Offers increased security without costly and time-consuming rekeying.
Solid brass construction provides high quality and long cylinder life.
Ability to key with non-interchangeable core cylinders for cost effective system flexibility.
Benefits
-
Maximum physical protection from attacks
Drill Protection: Offers maximum protection against drilling attack with solid-brass construction and strategically placed steel inserts.
Large retrofit capability: Available in retrofit cylinder formats to fit most popular manufacturer door hardware.
Restricted Keys: Utility patented keys are only available through authorized dealers and require a special key cutting machine and access to Medeco specific blanks.
System Flexibility: Medeco 4 integrates with M4 BiLevel for custom security level at each opening.
Masterkeying Capabilities: Secondary side pin bitings provide expanded masterkeying capabilities. Very large systems are possible.
Uses Existing Hardware: large selection of retrofit LFIC for popular manufacturer's hardware, reduces costs by eliminating the need to replace existing hardware.
Quick Change: Provides quick and easy cylinder changes in the event of personnel changes, or if keys are lost or stolen.
Durable: Constructed of durable machined brass components, designed to last the life of your equipment.
Flexible: Formats available to fit into a variety of locks prepped to accept LFIC, including rim and mortise, key-in-knob locks, padlocks, and bored auxiliary deadlatches and deadbolts prepped for LFIC.
Timesaver: Quick installation without changes to hardware.
Specifications
-
Body Material: Solid brass
-
Core Type: Interchangeable
-
Cylinder Format: Large Format
-
Cylinder Option: Single
-
Cylinder Pins: 5 pin, 6 pin
-
Cylinder Type: Component
-
Device Type: Mechanical
-
Grade: Grade 1
-
Key Retaining: Non-Key Retaining
-
Key System: Mechanical
-
Lock Core Type: LFIC
-
Number of Keys: 2
-
Patented: Yes
-
Patent End Date: December 31, 2040
-
Security Type: High Security [UL 437], Patented
-
UL Listed: Yes
-
ULC Listed: Yes
-
USA Patent Number: 11624206
-
Warranty: 2-year limited warranty
-
Weather Resistance: Indoor/Outdoor.
Certifications
-
UL437 Listed
ANSI/BHMA A156.30
ANSI/BHMA A156.5, Grade 1
-
