Medeco Bilevel Standard 6 Pin Mortise Cylinder, 1-1/8" - 1-3/4", Straight Cam, DL Keyway

Medeco
Mortise Cylinder
$147.24
Door Handing
Cylinder Length :
Pinning :

Model: MED-100200J

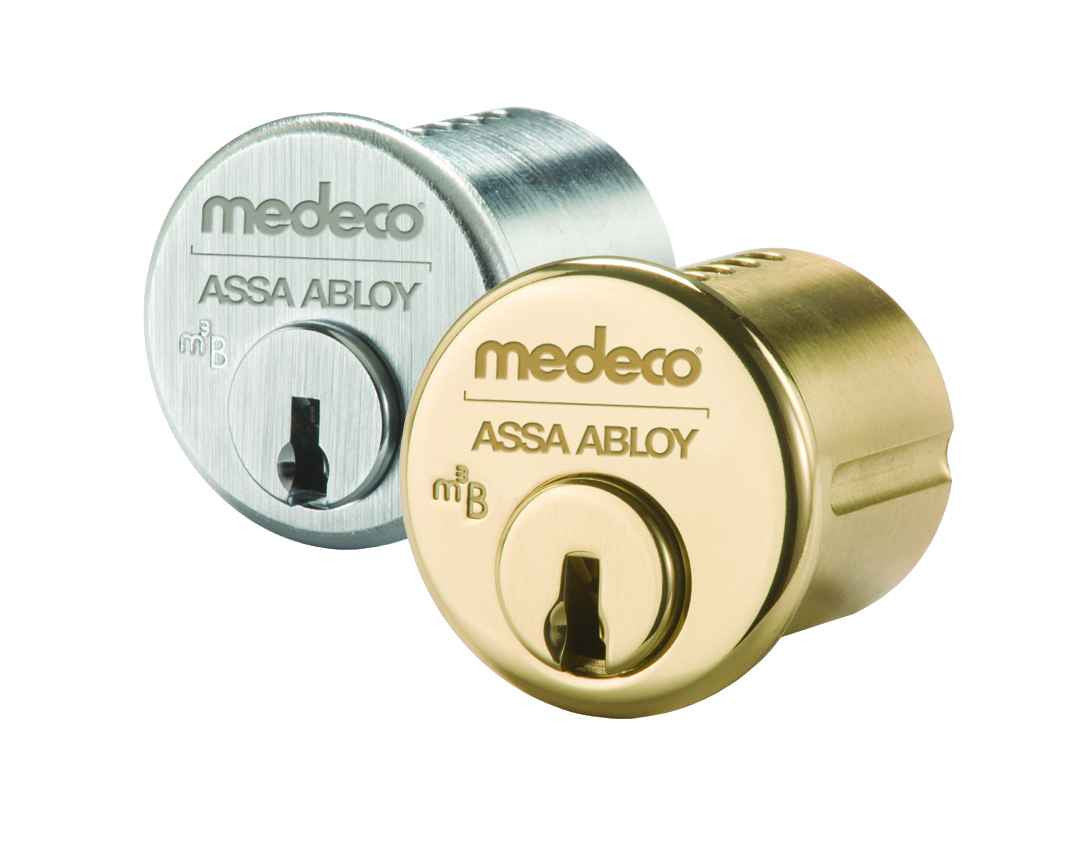

Medeco® Mortise & Rim Cylinders – High-Security UL437 Certified Cylinder Locks

Medeco® rim and mortise cylinders are engineered for high-security applications requiring enhanced key control, durability, and resistance to physical attacks. Built with utility-patented Medeco 4 (M4) technology, these locks are ideal for commercial, institutional, and government facilities where security and key duplication control are critical.

Medeco Mortise Cylinder :

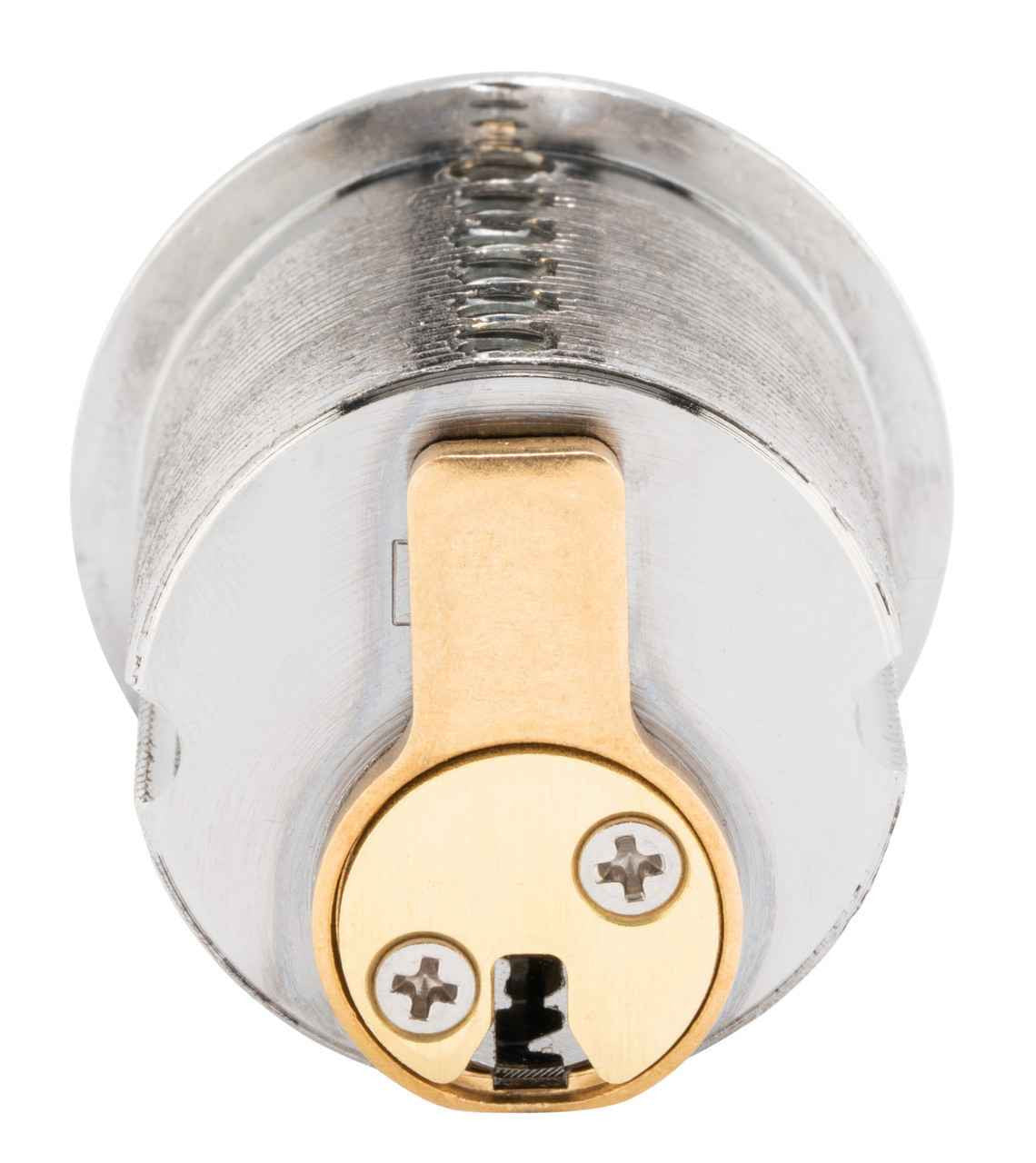

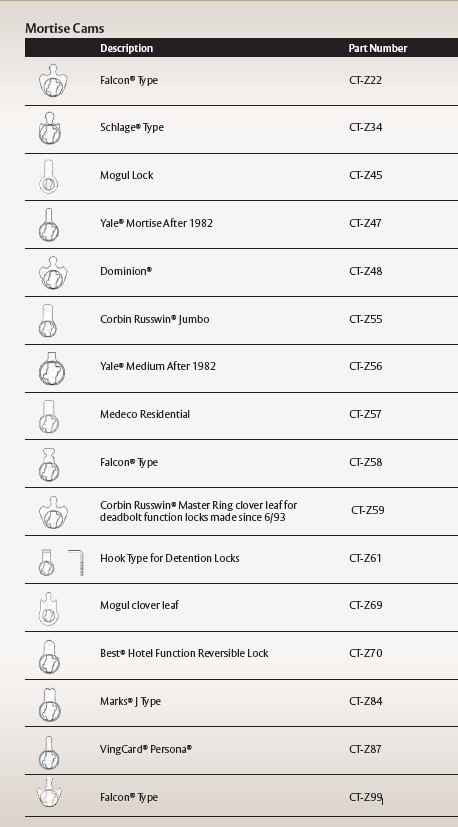

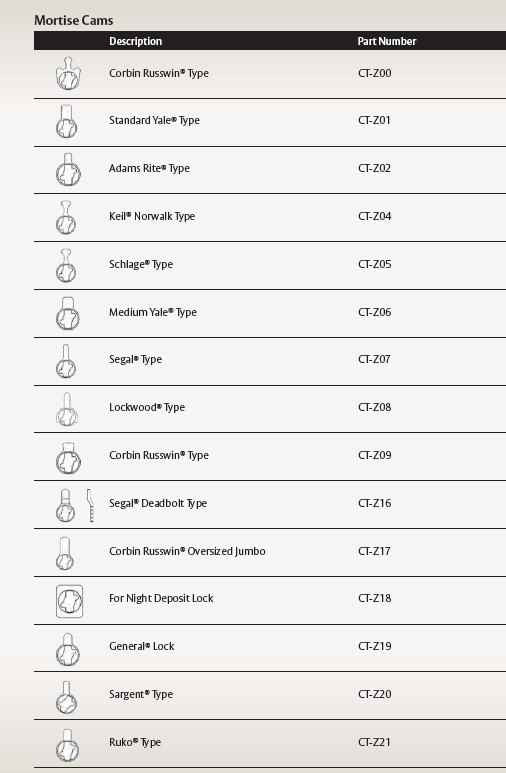

The Medeco mortise cylinder features external threads designed to screw directly into standard mortise lock cylinder housings from other manufacturers. A cam on the back engages the internal lock mechanism, and the cylinder is secured with a set screw. These cylinders provide a seamless retrofit for upgrading to Medeco cylinder lock protection without replacing the existing hardware.

Medeco Rim Cylinder Overview :

Rim cylinders are typically used with auxiliary locking devices such as:

  • Surface-mounted deadbolts

  • Night latches

  • Panic exit devices

  • Jimmyproof locks (interlocking deadbolts / vertical dropbolts)

They mount with a back plate and two screws, offering a secure and compatible fit for a wide variety of aftermarket and OEM applications.

High Security Features – Medeco 4 (M4) Technology :

  • Patented Key Control: Medeco keys can only be duplicated by authorized dealers, ensuring strict control.

  • UL 437 Listed: Certified against drilling, picking, and pulling attacks.

  • Sidebar Locking Mechanism: Keys must be elevated, rotated, and aligned properly before the lock can be turned—providing superior protection against picking and bumping.

  • Special Angle-Cut Keys: Requires proprietary key cutting machines and blanks, increasing protection against unauthorized duplication.

  • Master Keying Compatibility: Can be master keyed into M4 BiLevel, CLIQ, or legacy Medeco systems.

Applications :

  • Commercial buildings

  • Multi-tenant residential properties

  • Educational institutions

  • Retail storefronts

  • Government facilities

  • Any retrofit requiring an upgrade to a high-security mortise lock cylinder.
