Medeco 600350T 5-Pin Cam Lock Kit in Satin Chrome (26D) with Multiple Cam Configurations
Model: 600350T, 600350TT, 600350TW
Medeco 600350T 5-Pin Cam Lock Kit in Satin Chrome (26D) with Multiple Cam Configurations

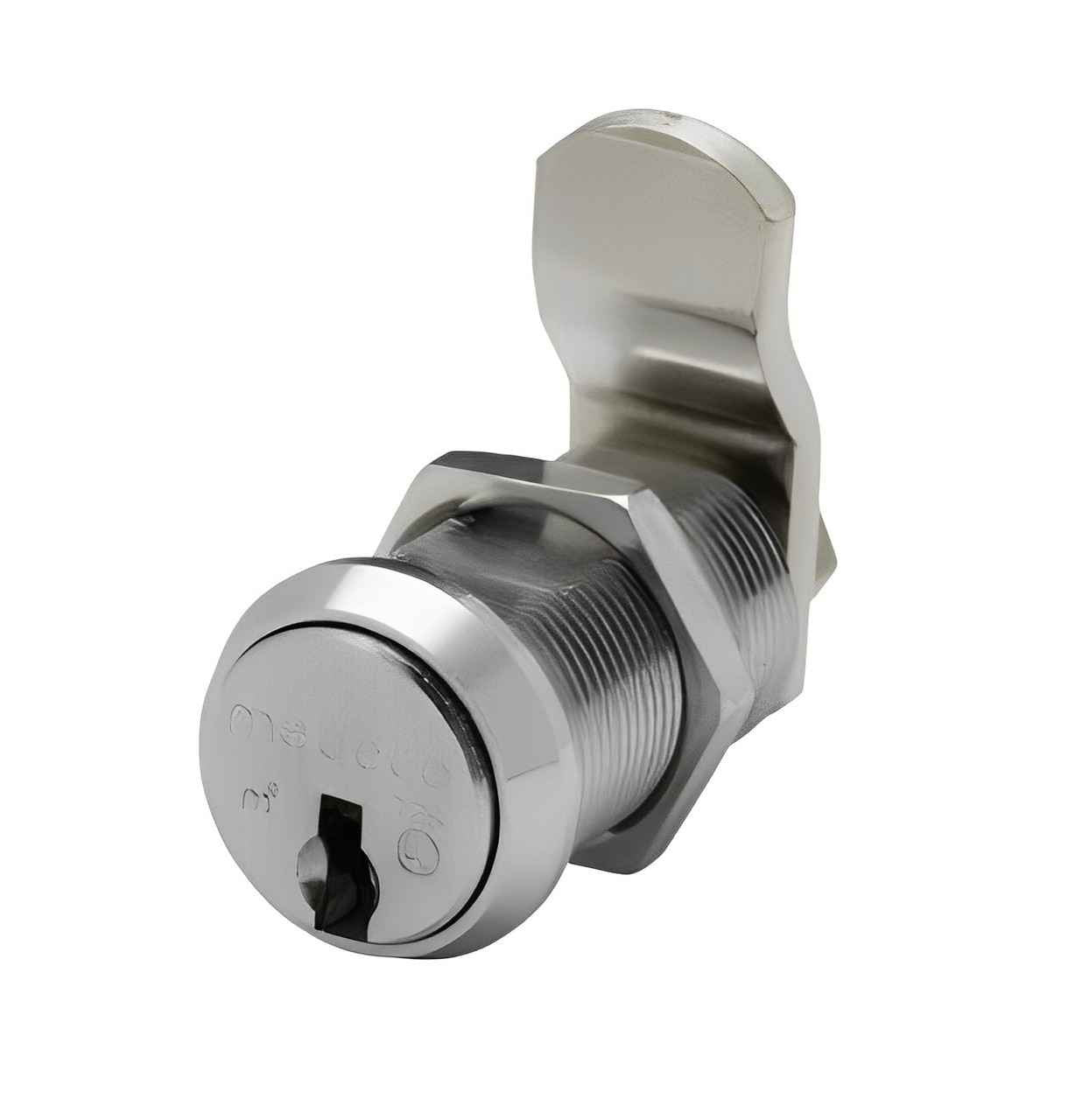

The Medeco 600350T All-In-One 5-Pin Cam Lock Kit is a premium high-security cam lock solution engineered for top-tier physical security and key control across a wide range of locking applications. Built with a solid machined brass body and hardened steel internal components, this UL 437 Listed medeco cylinder lock provides superior protection against drilling, picking, and unauthorized key duplication. The 3/4" diameter cam lock is available in lengths from 7/16" to 2" and supports clockwise or counterclockwise rotation at 90° or 180°, making it highly adaptable for diverse OEM and commercial installations. Finished in 26D Satin Chrome and compatible with existing Medeco3 60 and 10 series keying systems, this kit ships in a pack of 6 for high-volume deployments in banking, utilities, telecom, and transit environments.
Key Features
- Standard 3/4" Diameter Cam Lock: Industry-standard 3/4" diameter with available lengths from 7/16" to 2" to accommodate a wide variety of panel thicknesses and installation requirements.
- Flexible Rotation Options: Supports clockwise or counterclockwise rotation at 90° or 180° via included CP-040451 90° Stop Washer and CP-040461 180° Stop Washer for precise cam positioning.

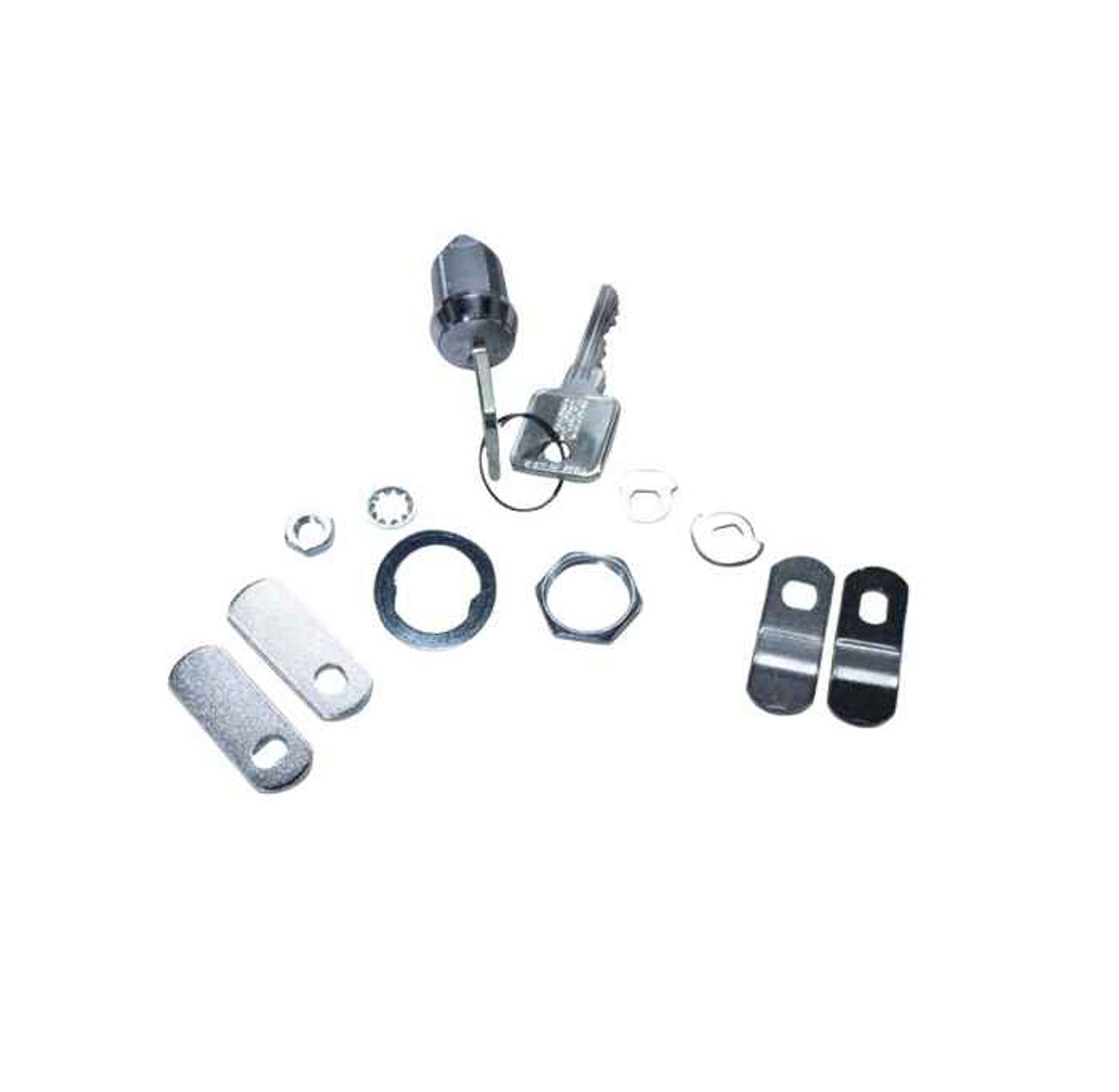

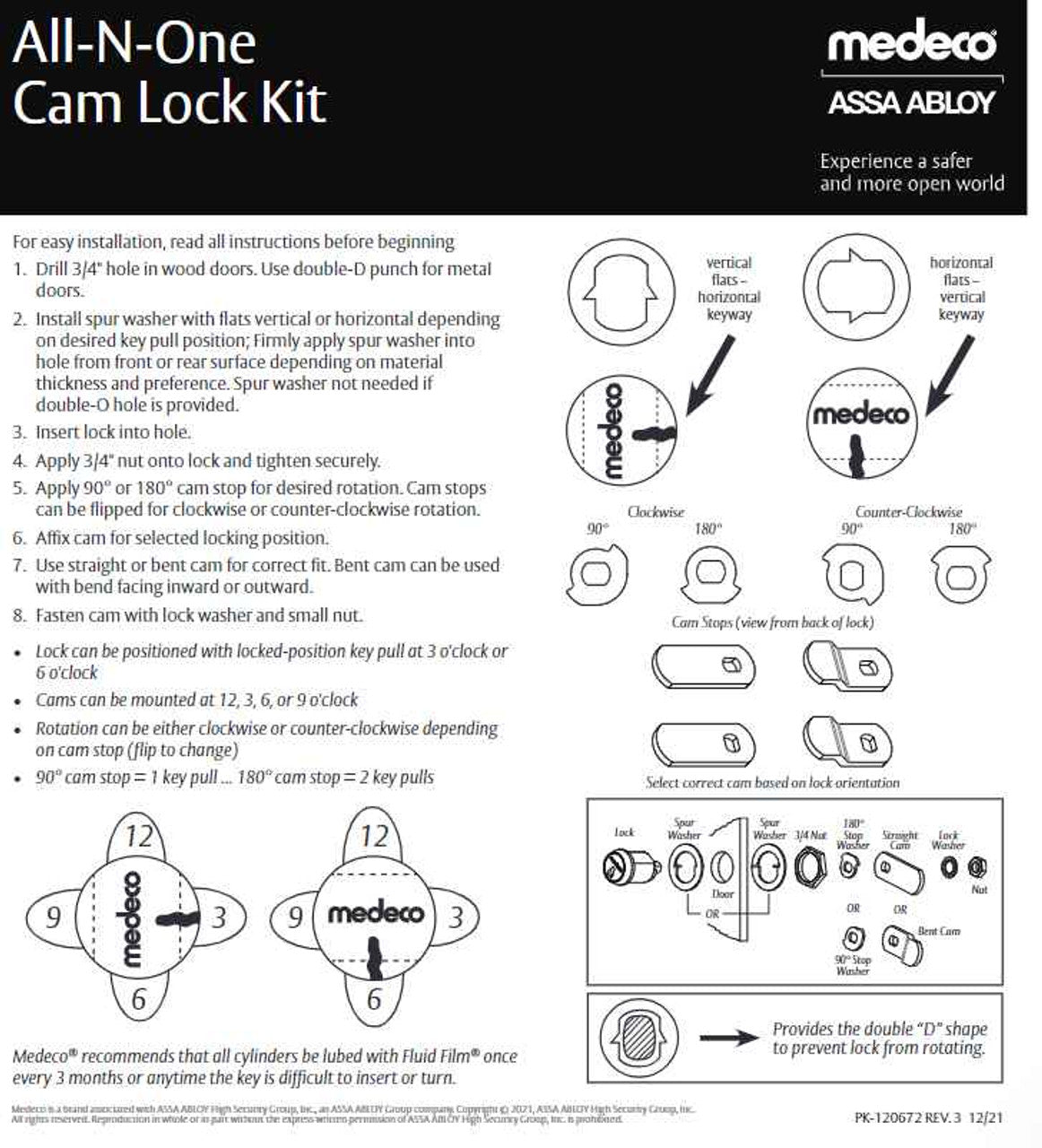

- Comprehensive Kit Components: Each kit includes a Medeco 5-Pin High-Security Cam Lock, CP-040500 Pronged Washer, CT-A05 & CT-D05 Flat Cams, CT-J01 & CT-H07 Offset Cams, CP-040451 90° Stop Washer, CP-040461 180° Stop Washer, CP-05006 3/4"-27 Mounting Nut, and 2 Medeco3 Keys.
- UL 437 Listed High-Security Construction: Virtually pick-proof triple-locking cam lock design built with a machined brass body and hardened steel internal components for maximum resistance to physical attack.
- Controlled Key Duplication: Medeco3 keys can only be duplicated by Medeco or an authorized Medeco service outlet, and only at your request, ensuring strict key control and access management.
- Versatile Keying Options: Can be keyed alike, keyed different, or master keyed; compatible with existing Medeco3 60 and 10 series systems for seamless integration into established key control programs.
- Multiple Pin and Configuration Options: Available in three, four, or five-pin models with multiple key pull and key-retaining options, plus removable core format and custom finishes available upon request.
- Patent, Trademark, and Copyright Protected: Protected under patent, trademark, and copyright laws, reinforcing the integrity of the Medeco security platform against counterfeiting and unauthorized reproduction.
Certifications & Compliance
- UL 437 Listed for Physical Security
- Commercial Grade Application
- Patent, Trademark, and Copyright Protected
Technical Specifications
- Product Type: Medeco High Security Cam Lock

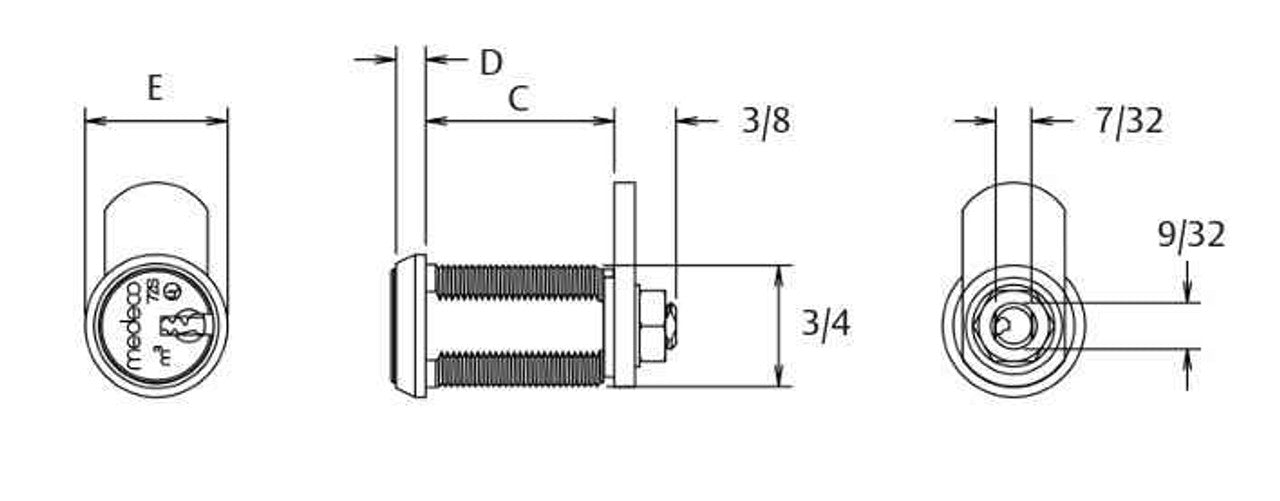

- Diameter: 3/4"
- Pinning: 4 or 5-pin depending on size
- Certification: UL 437 Listed
- Construction: Durable machined brass components with hardened stainless-steel inserts
- Keying: Keyed alike, keyed different, or master keyed
- Finish: Satin Chrome
- Warranty: 2-year manufacturer's warranty
Typical Applications
- Banking and ATM Terminals
- Transit and Fare Collection Systems
- Alarm and Communication Equipment Enclosures
- Access Control and Data Encryption Panels
- Safes, Cabinets, Lockers, and Furniture
- Vending Machines and Payphone Installations
- OEM and Custom Hardware Projects
Why Medeco?
Medeco cam lock products deliver professional-grade security through solid machined brass construction with hardened steel internal components and a virtually pick-proof triple-locking design that meets the rigorous UL 437 standard. The Medeco3 key control system ensures that key duplication is strictly controlled, making this kit an ideal choice for OEMs, security integrators, and facilities requiring verifiable access management across banking, telecom, transit, and other high-security commercial environments.
