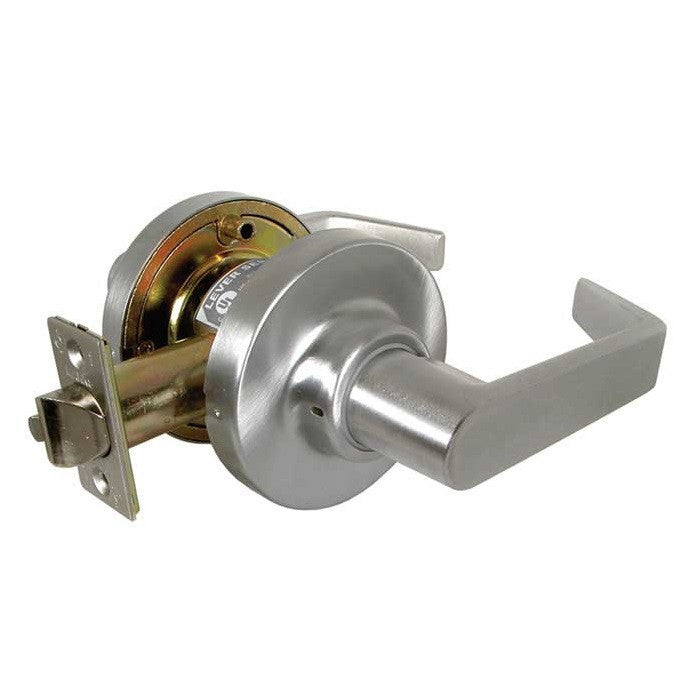

Marks USA 295L Privacy Lever Lockset — Curved Lever, 2-3/4" Backset, ANSI Strike, Grade 1, ADA Compliant
Part Number: 295L
Marks USA 295L Privacy Lever Lockset — Curved Lever, 2-3/4" Backset, ANSI Strike, Grade 1, ADA Compliant
The Marks USA 295L is a commercial-grade cylindrical Privacy Lever Lockset engineered for demanding, high-traffic environments where durability and long-term performance are essential. Built on the Marks USA Survivor platform, this lockset features a unique stainless steel "clutch" mechanism combined with bronze roller bearings that disengage the levers from the retractor when locked, eliminating lever droop and dramatically reducing internal wear. Rated to exceed BHMA Grade 1 specifications by 300% — surpassing 3.6 million cycles — and carrying a 3-Hour Fire Rating, the 295L is designed for doors with a 2-3/4" backset and accommodates door thicknesses from 1-5/8" to 1-7/8" (with optional K1904 spacer for 1-3/8" doors). ADA compliant and backed by the Marks Lifetime Mechanical Warranty, this lockset delivers professional-grade reliability for commercial applications.
Key Features
- Exceptional Cycle Durability: Exceeds BHMA Grade 1 specifications by 300%, tested to over 3.6 million cycles for unmatched long-term reliability in high-traffic commercial settings.
- Unique Clutch Mechanism: Stainless steel "clutch" disengages levers from the retractor when locked, eliminating lever droop and significantly reducing wear on internal lock components.
- Cast Bronze Roller Bearings: Cylindrical lock chassis constructed with cast retractors on bronze roller bearings for smooth, durable operation over millions of cycles.
- Backset & Door Compatibility: Designed for a 2-3/4" backset (also available in 2-3/8"); accommodates door thicknesses of 1-5/8" to 1-7/8"; use K1904 spacer for 1-3/8" doors.
- Latch Specifications: Latch #1834 with 1-1/8" x 2-1/4" front, 9/16" throw, and stainless steel nose for reliable deadlocking performance.
- Solid Cast Zamac Levers: Curved lever design in solid cast zamac with 1/2" return; thru-bolted roses at 3-7/16" diameter with spring-loaded 2-#10 thru-bolts for secure mounting.
- ANSI Curved Lip Strike Included: Ships with Strike #1135, a 4-7/8" ASA curved lip strike for standard ANSI-compliant installation.
- Marks Lifetime Mechanical Warranty: Backed by Marks USA's Lifetime Mechanical Warranty for long-term confidence and protection.
Certifications & Compliance
- ANSI/BHMA Grade 1 — Exceeds specification by 300% (3.6 million cycles)
- UL Listed
- 3-Hour Fire Rated
- ADA Compliant
- Marks Lifetime Mechanical Warranty
Technical Specifications
- Series: 295 Series
- Product Group: Mechanical Locks
- Product Subgroup: Bored Locksets
- ANSI/BHMA: ANSI/BHMA, UL Listed
- Commercial/Residential: Commercial
- Function Description: Latch retracted by knobs/levers at all times
- ADA Compliant: Yes
- Product Function: Passage/Hall/Closet
- Latch Type Specification: Deadlocking
- Strike Classification: ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner
- Product Category: Mechanical Locks
- Department: Door Hardware
Typical Applications
- Commercial Office Buildings and Private Offices
- Healthcare Facilities and Patient Rooms
- Educational Institutions and Classroom Corridors
- Hospitality and Hotel Guest Rooms
- Retail Establishments and Back-of-House Areas
- Multi-Tenant Residential and Apartment Buildings
- Government and Municipal Buildings
Why Marks USA 295L?
Marks USA 295L Lever Locksets are built on a foundation of proven commercial-grade engineering, featuring solid cast zamac levers, bronze roller bearings, and a proprietary stainless steel clutch mechanism that sets the Survivor series apart from conventional cylindrical locksets. With a tested performance rating that exceeds BHMA Grade 1 by 300% — surpassing 3.6 million cycles — and a 3-Hour Fire Rating, the 295L is engineered for environments where dependable, low-maintenance performance is non-negotiable.
