Marks USA 5SS19EU LifeSaver Anti-Ligature Electrically Unlocked Lever Mortise Lock - Institutional, Storeroom Function, ADA Compliant
Part Number: 5SS19EU
Marks USA 5SS19EU LifeSaver Anti-Ligature Electrically Unlocked Lever Mortise Lock — Institutional Storeroom, ADA Compliant

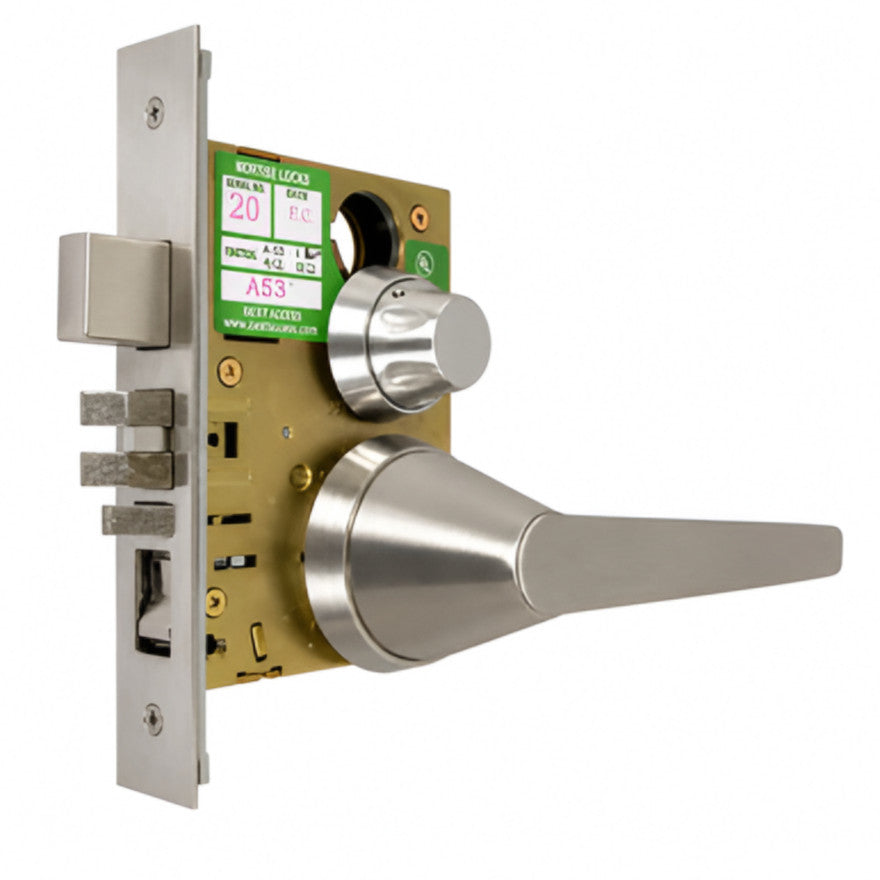

The Marks USA 5SS19EU LifeSaver is an institutional-grade, anti-ligature electrically unlocked lever mortise lockset engineered for demanding environments where safety and security are paramount. This storeroom-function lockset uses an internal solenoid activated by an electrical power source to retract the latch and unlock the door when the access control system is disengaged, with a manual override option available via keyway. Designed for doors with a required thickness of 1 3/4" and a 2 3/4" backset, the 5SS19EU features a steel mortise case measuring 4 3/16" x 6 1/16" x 7/16" and is finished in Polished Stainless. The SS19 lever design is ligature-resistant, ADA compliant, and meets BHMA and CULUS LISTED standards, making it ideal for healthcare, correctional, and other institutional applications.
Key Features
- Anti-Ligature Design: SS19 lever style is ligature-resistant, specifically engineered for institutional environments such as behavioral health and correctional facilities where safety is critical.
- Electrically Unlocked Operation: Internal solenoid retracts the latch to unlock the door when the access control system is disengaged, with a manual override option via keyway for added flexibility.
- Storeroom Function (ANSI F75): Latch retracted by knobs/levers at all times per ANSI function F75, providing controlled access with deadlocking latch for security.
- Precise Door Compatibility: Designed for 1 3/4" door thickness with a 2 3/4" backset; steel mortise case dimensions of 4 3/16" x 6 1/16" x 7/16" and a front size of 1-1/8" x 2-1/4" ensure accurate fit.
- Heavy-Duty Construction: Steel mortise case with clutch lever and needle bearings provides exceptional durability and smooth operation in high-traffic commercial and institutional settings.
- Non-Handed Installation: Non-handed design simplifies installation and reduces inventory requirements, compatible with doors of any swing direction.
- ADA Compliant Lever Trim: Rose trim style with SS19 lever meets ADA accessibility requirements, ensuring compliance in public and institutional facilities.
- Curved Lip Strike & 9/16" Latch Throw: Includes a curved lip strike plate (4 7/8" height) and a 9/16" deadlocking latch throw for reliable door latching and security.
- Marks C Keyway with 2 Keys Included: Keyed to the Marks C keyway system; ships with 2 keys for immediate use.
Certifications & Compliance
- BHMA Certified
- CULUS Listed
- ANSI/BHMA and UL Listed
- ADA Compliant
- Fire Rated
- Grade 1
Technical Specifications
- Series: 5SS19 Series
- Latch Throw: 9/16"
- Grade: Grade 1
- Product Group: Mechanical Locks
- Product Subgroup: Bored Locksets
- Product Type: Cylindrical Locks
- Subcategory: Cylindrical Locks
- ANSI/BHMA: ANSI/BHMA, UL Listed
- Lock Type: Cylindrical
- Function Description: Latch retracted by knobs/levers at all times
- Front Size: 1-1/8" x 2-1/4"
- ADA Compliant: Yes
- Keyed: No
- ANSI Function: F75
- Product Attribute: Cylindrical Locks
- Product Function: Passage/Hall/Closet
- Latch Type Specification: Deadlocking
- Product Category: Mechanical Locks
- Backset (Distance): 2-3/4"
- Department: Door Hardware
Typical Applications
- Behavioral Health and Psychiatric Facilities
- Correctional and Detention Institutions
- Healthcare and Hospital Environments
- Educational Institutions Requiring Ligature-Resistant Hardware
- Government and Municipal Buildings
- Commercial Office Buildings with Access Control Systems
- Multi-Tenant Residential and Assisted Living Properties
Why Marks USA 5SS19EU LifeSaver?
Marks USA 5SS19EU LifeSaver mortise locksets deliver institutional-grade reliability through a steel mortise case, clutch lever with needle bearings, and a ligature-resistant SS19 lever design certified to BHMA, CULUS, and ADA standards. Engineered for the most demanding commercial and institutional applications, the 5SS19EU combines electrically unlocked access control functionality with the durability and safety features required in high-risk environments where dependable performance is non-negotiable.
