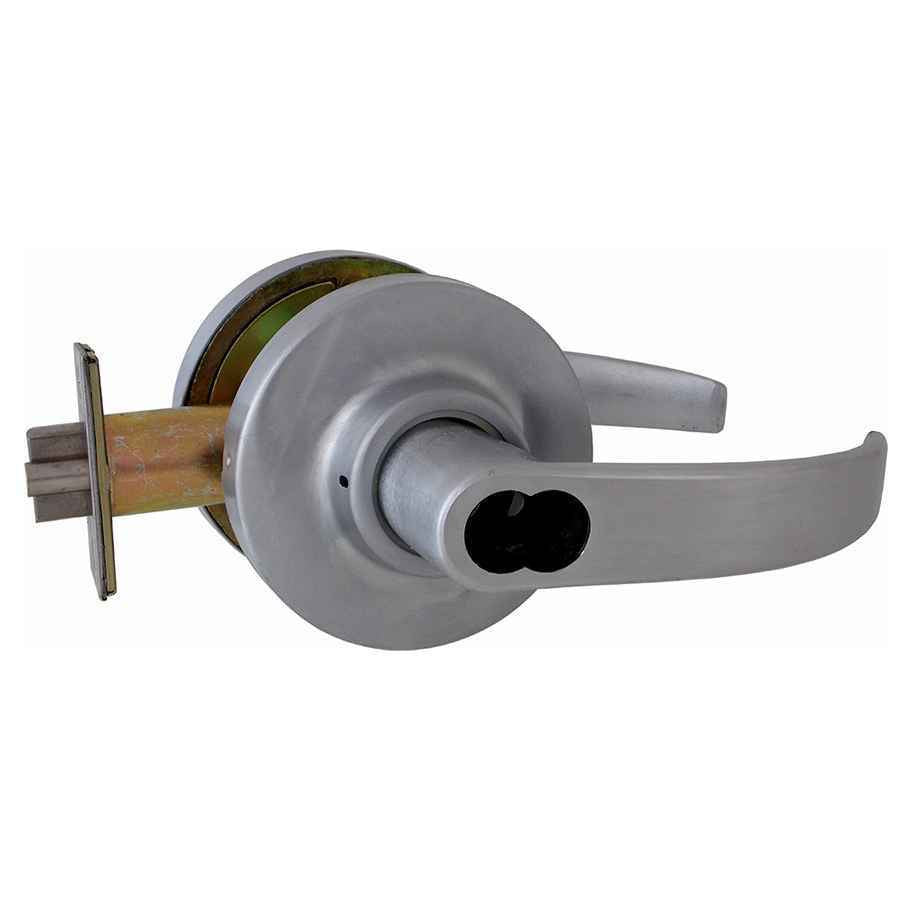

Marks USA 295RF Storeroom Lever Lockset with Curved Lever, Small Format IC, Less Core, 2-3/4" Backset, Grade 1
Part Number: 295RF
Marks USA 295RF Storeroom Lever Lockset — Curved Lever, Small Format IC, Grade 1, 2-3/4" Backset
The Marks USA 295RF is a commercial-grade cylindrical storeroom lever lockset engineered for demanding, high-traffic environments where durability and long-term performance are paramount. Featuring a unique stainless steel "clutch" mechanism and bronze roller bearings on a cast retractor chassis, this lockset exceeds BHMA Grade 1 specifications by 300%, achieving over 3.6 million cycles. Designed for doors 1-5/8" to 1-7/8" thick with a 2-3/4" backset, it accepts a Small Format Interchangeable Core (SFIC) and ships less core for maximum keying flexibility. The 295RF carries a 3-Hour Fire Rating and is ADA Compliant, making it a trusted solution for commercial storeroom applications.
Key Features
- Exceptional Cycle Durability: Exceeds BHMA Grade 1 specifications by 300% with over 3.6 million cycles, ensuring long-term reliability in high-traffic commercial settings.
- Unique Clutch Mechanism: Stainless steel "clutch" disengages levers from the retractor when locked, dramatically reducing wear, eliminating lever droop, and lowering maintenance requirements.
- Cast Retractor on Bronze Roller Bearings: Solid cast zamac levers with 1/2" return ride on bronze roller bearings for smooth, consistent operation over millions of cycles.
- Door Thickness & Backset Compatibility: Fits doors 1-5/8" to 1-7/8" thick; accommodates both 2-3/8" and 2-3/4" backsets. For 1-3/8" doors, use K1904 spacer.
- Latch Specifications: Latch #1834 with 1-1/8" x 2-1/4" front, 9/16" throw, and stainless steel nose for reliable deadlocking performance.
- Thru-Bolted Rose Design: 3-7/16" diameter roses are thru-bolted with spring-loaded 2-#10 thru-bolts for a secure, tamper-resistant installation.
- ANSI Curved Lip Strike Included: Ships with Strike #1135, a 4-7/8" ASA curved lip strike for proper door frame engagement.
- Small Format IC, Less Core: Accepts Small Format Interchangeable Core for flexible master keying and re-keying without special tools; ships less core.
- Marks Lifetime Mechanical Warranty: Backed by Marks USA's Lifetime Mechanical Warranty for added confidence and long-term value.
Certifications & Compliance
- ANSI/BHMA Grade 1 — Exceeds specification by 300% (3.6 million cycles)
- UL Listed
- 3-Hour Fire Rated
- ADA Compliant
- Marks Lifetime Mechanical Warranty
Technical Specifications
- Product Group: Mechanical Locks
- Product Subgroup: Bored Locksets
- ANSI/BHMA: ANSI/BHMA, UL Listed
- Commercial/Residential: Commercial
- Function Description: Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
- ADA Compliant: Yes
- ANSI Function: F109
- Series: 295 Series
- Product Function: Entrance/Office
- Latch Type Specification: Deadlocking
- Product Category: Mechanical Locks
- Department: Door Hardware
Typical Applications
- Commercial Office Buildings and Storerooms
- Educational Facilities and School Classrooms
- Healthcare Institutions and Medical Offices
- Retail Establishments and Back-of-House Storage
- Industrial and Warehouse Facilities
- Multi-Tenant Residential and Mixed-Use Properties
- Government and Municipal Buildings
Why Marks USA 295RF?
Marks USA 295RF cylindrical locksets are built on a foundation of solid cast zamac levers, bronze roller bearings, and a proprietary stainless steel clutch mechanism that together deliver performance exceeding BHMA Grade 1 by 300% — over 3.6 million cycles. The 3-Hour Fire Rating and ADA compliance make the 295RF a code-ready, professional-grade solution engineered for the most demanding commercial door applications where dependable, low-maintenance performance is non-negotiable.
