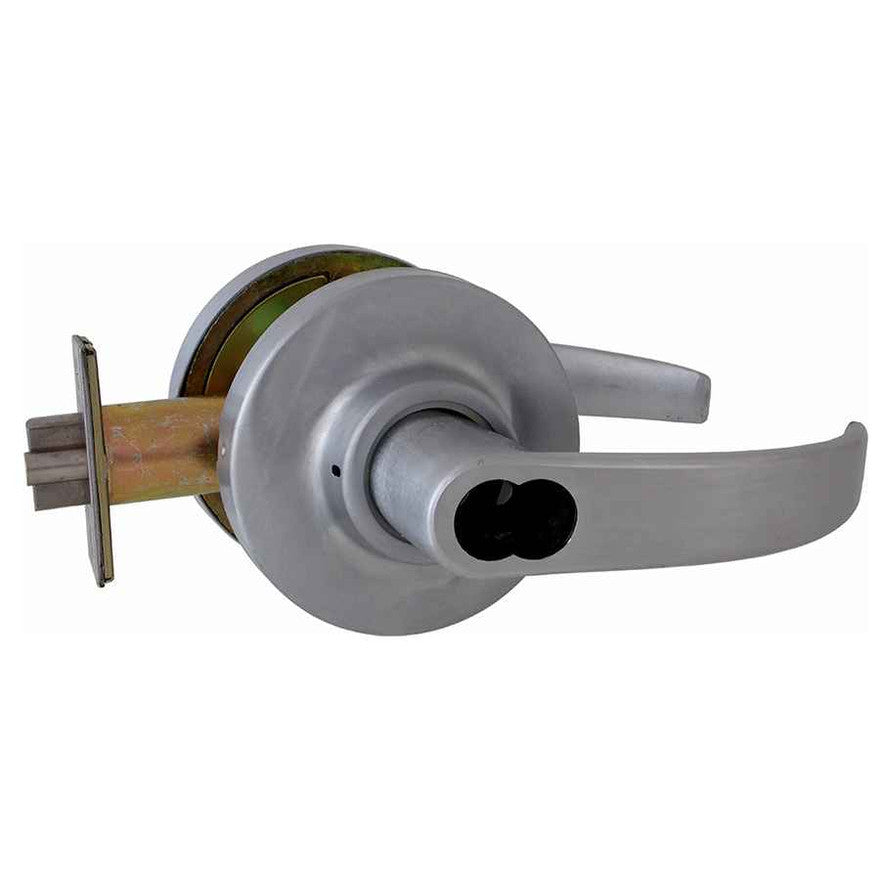

Marks USA 295RAB Entry Lever Lockset, Curved Lever, Small Format IC, Less Core, 2-3/4" Backset, Grade 1, ADA Compliant
Part Number: 295RAB
Marks USA 295RAB Entry Lever Lockset — Curved Lever, Small Format IC, Grade 1, ADA Compliant
The Marks USA 295RAB is a commercial-grade cylindrical entry lever lockset from the 295 Series, engineered for demanding applications where durability and long-term performance are essential. Featuring a unique stainless steel "clutch" mechanism and bronze roller bearings on a cast retractor chassis, this lockset exceeds BHMA Grade 1 specifications by 300%, achieving over 3.6 million cycles. Designed for doors with a 2-3/4" backset and door thickness of 1-5/8" to 1-7/8" (with optional K1904 spacer for 1-3/8" doors), it ships with a Small Format IC cylinder housing, less core, and an ANSI #1135 4-7/8" curved lip strike.
Key Features
- Exceptional Cycle Rating: Exceeds BHMA Grade 1 specifications by 300% with over 3.6 million cycles, delivering long-term reliability in high-traffic commercial environments.
- Unique Clutch Mechanism: Stainless steel "clutch" and bronze roller bearings disengage levers from the retractor when locked, dramatically reducing wear, abuse, and lever droop for lower maintenance operation.
- Backset & Door Compatibility: Accommodates 2-3/8" and 2-3/4" backsets; fits door thickness of 1-5/8" to 1-7/8"; use K1904 spacer for 1-3/8" doors.
- Latch Specifications: Latch #1834 with 1-1/8" x 2-1/4" front, 9/16" throw, and stainless steel nose for reliable deadlocking performance.
- Solid Cast Zamac Levers: Curved lever design with 1/2" return, constructed from solid cast zamac for durability and a professional appearance.
- Thru-Bolted Rose Assembly: 3-7/16" diameter roses, spring loaded with 2 #10 thru-bolts for secure, stable mounting.
- 3-Hour Fire Rated: Rated for 3-hour fire door assemblies, supporting code-compliant installations in fire-rated openings.
- Marks Lifetime Mechanical Warranty: Backed by Marks' Lifetime Mechanical Warranty for added confidence and long-term protection.
- Wide Function Availability: Available in numerous functions including Entry (AB), Classroom (S), Storeroom (F), Hotel (H), Classroom Intruder (DB), Electrically Locked (FEL), Electrically Unlocked (FEU), and many more.
Certifications & Compliance
- ANSI/BHMA Grade 1 — Exceeds by 300% (over 3.6 million cycles)
- UL Listed
- ADA Compliant
- 3-Hour Fire Rated
- Marks Lifetime Mechanical Warranty
Technical Specifications
- Product Group: Mechanical Locks
- Product Subgroup: Bored Locksets
- ANSI/BHMA: ANSI/BHMA, UL Listed
- Commercial/Residential: Commercial
- Function Description: Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
- ADA Compliant: Yes
- ANSI Function: F109
- Series: 295 Series
- Product Function: Entrance/Office
- Latch Type Specification: Deadlocking
- Product Category: Mechanical Locks
- Department: Door Hardware
Typical Applications
- Commercial Office Buildings
- Educational Facilities (Classroom and Intruder Functions Available)
- Healthcare Institutions
- Retail and Storefront Establishments
- Hotel and Hospitality Properties
- Government and Municipal Buildings
- Multi-Tenant Residential and Mixed-Use Properties
Why Marks USA 295 Series?
Marks USA 295 Series cylindrical locksets are built on a cast retractor chassis with bronze roller bearings and a proprietary stainless steel clutch mechanism that sets them apart from standard commercial lever sets. By exceeding BHMA Grade 1 specifications by 300% — over 3.6 million cycles — and carrying a 3-Hour Fire Rating along with UL Listing and ADA compliance, the 295RAB delivers professional-grade performance engineered for the most demanding commercial door openings.
