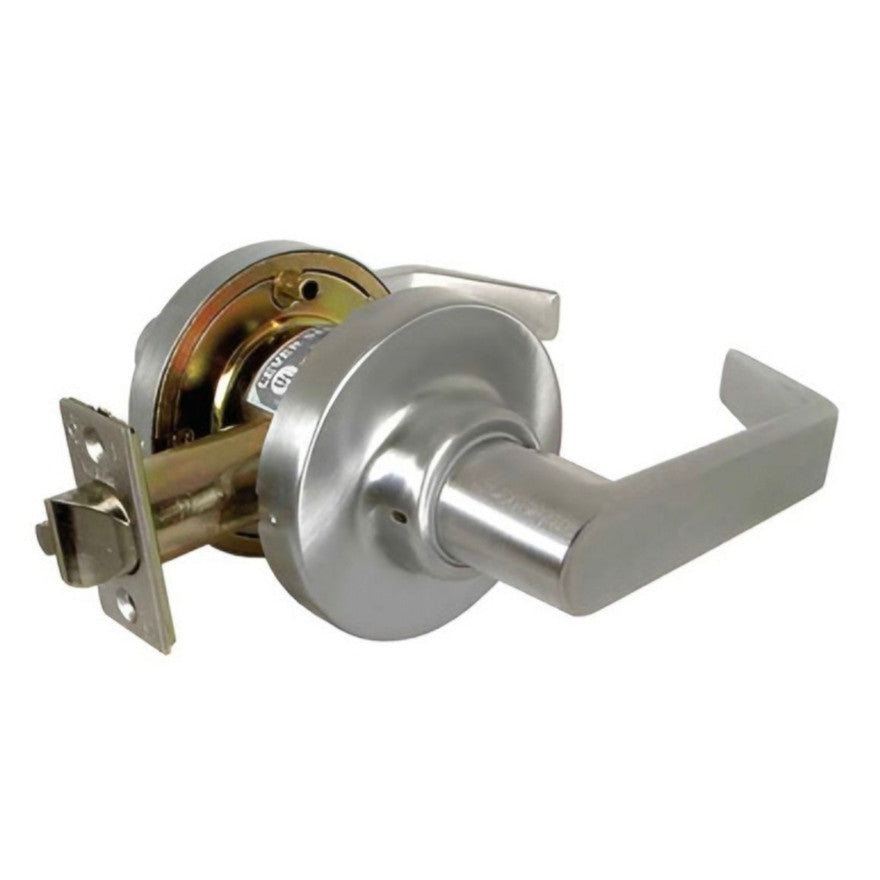

Marks USA 295N Passage Lever Lockset — Grade 1, Curved Lever, 2-3/4" Backset, 3-Hour Fire Rated
Part Number: 295N
Marks USA 295N Passage Lever Lockset — Grade 1, Curved Lever, 2-3/4" Backset, 3-Hour Fire Rated
The Marks USA 295N is a commercial-grade cylindrical passage lever lockset engineered for demanding, high-traffic environments where durability and long-term performance are paramount. Featuring a unique stainless steel "clutch" mechanism paired with bronze roller bearings on a cast retractor chassis, this lockset exceeds BHMA Grade 1 specifications by 300%, achieving over 3.6 million cycles. Designed for door thicknesses of 1-5/8" to 1-7/8" (with optional K1904 spacer for 1-3/8" doors) and a 2-3/4" backset, it ships with a #1135 4-7/8" ASA curved lip strike and is 3-Hour Fire Rated. ADA compliant and backed by the Marks Lifetime Mechanical Warranty, the 295N delivers a high-quality, lower-maintenance solution for commercial passage applications.
Key Features
- Exceeds BHMA Grade 1 by 300%: Tested to over 3.6 million cycles, far surpassing standard Grade 1 requirements for exceptional long-term reliability in high-traffic commercial settings.
- Unique Stainless Steel Clutch Mechanism: When locked, levers disengage from the retractor and interior mechanisms, swinging freely without resistance — dramatically reducing wear, eliminating lever droop, and extending service life.
- Cast Retractor on Bronze Roller Bearings: All cylindrical lock chassis feature cast retractors on bronze roller bearings for smooth, durable operation across millions of cycles.
- Door Thickness & Backset Compatibility: Fits door thicknesses of 1-5/8" to 1-7/8"; use K1904 spacer for 1-3/8" doors. Accommodates both 2-3/8" and 2-3/4" backsets.
- Latch #1834 Specifications: Front measures 1-1/8" x 2-1/4" with a 9/16" throw and stainless steel nose for reliable deadlocking performance.
- Thru-Bolted Rose Assembly: Roses are 3-7/16" diameter, spring-loaded, and secured with 2 #10 thru-bolts for a solid, tamper-resistant installation.
- 3-Hour Fire Rated: Certified for 3-hour fire-rated door assemblies, supporting life-safety compliance in commercial construction.
- Marks Lifetime Mechanical Warranty: Backed by Marks USA's Lifetime Mechanical Warranty for long-term confidence and protection.
Certifications & Compliance
- ANSI/BHMA Grade 1 — Exceeds specification by 300% (over 3.6 million cycles)
- UL Listed
- ADA Compliant
- 3-Hour Fire Rated
- Marks Lifetime Mechanical Warranty
Technical Specifications
- Series: 195 Series
- Product Group: Mechanical Locks
- Product Subgroup: Bored Locksets
- ANSI/BHMA: ANSI/BHMA, UL Listed
- Commercial/Residential: Commercial
- Function Description: Latch retracted by knobs/levers at all times
- ADA Compliant: Yes
- Product Function: Passage/Hall/Closet
- Latch Type Specification: Deadlocking
- Strike Classification: ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner
- Product Category: Mechanical Locks
- Department: Door Hardware
Typical Applications
- Commercial Office Buildings — Passage and corridor doors requiring high-cycle durability
- Educational Facilities — Hallway and classroom passage doors
- Healthcare Institutions — High-traffic corridor and passage applications
- Retail Establishments — Interior passage doors in commercial retail environments
- Hospitality Properties — Hotel corridor and common-area passage doors
- Government and Municipal Buildings — Public-access passage doors requiring Grade 1 performance
- Multi-Tenant Residential and Mixed-Use Properties — Common-area passage doors
Why Marks USA 295N?
Marks USA 295N cylindrical lever locksets are built around a solid cast retractor on bronze roller bearings and a proprietary stainless steel clutch mechanism that eliminates lever droop and reduces interior wear — delivering performance that exceeds BHMA Grade 1 specifications by 300% at over 3.6 million cycles. With 3-Hour Fire Rating, ADA compliance, UL listing, and a Lifetime Mechanical Warranty, the 295N is engineered for commercial environments where dependable, low-maintenance performance is non-negotiable.
