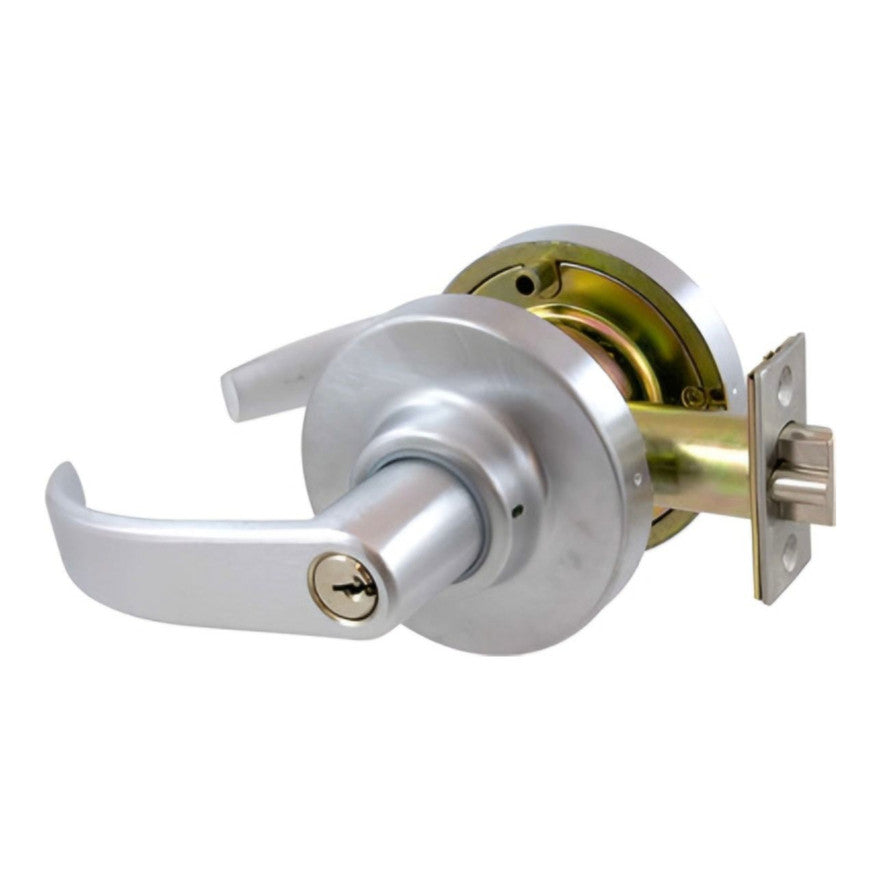

Marks USA 295AB Entry Lever Lockset with Curved Lever, Marks C Keyway, 6 Pin, 2-3/4" Backset, Grade 1
Part Number: 295AB
Marks USA 295AB Entry Lever Lockset — Curved Lever, Marks C Keyway, 6 Pin, Grade 1
The Marks USA 295AB is a commercial-grade cylindrical entry lever lockset from the Survivor Series, engineered for demanding applications where durability and long-term performance are essential. Featuring a unique stainless steel "clutch" mechanism and bronze roller bearings, this lockset exceeds BHMA Grade 1 specifications by 300%, achieving over 3.6 million cycles. Designed for door thicknesses of 1-5/8" to 1-7/8" (with optional K1904 spacer for 1-3/8" doors), it accommodates a 2-3/4" backset and is 3-Hour Fire Rated. The Marks "C" keyway 6-pin cylinder with 2 keys provides reliable entry security, while the solid cast zamac levers with 1/2" return and thru-bolted roses ensure a robust, professional installation.
Key Features
- Exceptional Cycle Durability: Exceeds BHMA Grade 1 specifications by 300% with over 3.6 million cycles, ensuring long-term reliability in high-traffic commercial environments.
- Unique Clutch Mechanism: Stainless steel "clutch" disengages levers from the retractor when locked, dramatically reducing wear, eliminating lever droop, and extending service life.
- Bronze Roller Bearings: Cast retractors on bronze roller bearings provide smooth, durable operation across millions of cycles.
- Door Thickness Compatibility: Fits doors 1-5/8" to 1-7/8" thick; use K1904 spacer for 1-3/8" doors. Accommodates 2-3/8" and 2-3/4" backsets.
- Latch & Strike Specifications: Latch #1834 with 1-1/8" x 2-1/4" front, 9/16" throw, and stainless steel nose; includes #1135 4-7/8" ASA curved lip ANSI strike.
- Solid Cast Zamac Levers: Curved lever design with 1/2" return and thru-bolted roses (3-7/16" dia., spring loaded, 2-#10 thru-bolts) for secure, professional mounting.
- 3-Hour Fire Rated: Rated for 3-hour fire door applications, supporting code compliance in commercial and institutional settings.
- Marks Lifetime Mechanical Warranty: Backed by Marks' Lifetime Mechanical Warranty for added confidence and long-term value.
- Multiple Available Functions: Available in a wide range of functions including Entry (AB), Passage, Privacy, Classroom, Storeroom, Hotel, Institution, and more for versatile application coverage.
Certifications & Compliance
- ANSI/BHMA Grade 1 — Exceeds by 300% (over 3.6 million cycles)
- UL Listed
- ADA Compliant
- 3-Hour Fire Rated
- Marks Lifetime Mechanical Warranty
Technical Specifications
- Product Group: Mechanical Locks
- Product Subgroup: Bored Locksets
- ANSI/BHMA: ANSI/BHMA, UL Listed
- Commercial/Residential: Commercial
- Function Description: Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
- ADA Compliant: Yes
- ANSI Function: F109
- Series: 295
- Product Function: Entrance/Office
- Latch Type Specification: Deadlocking
- Product Category: Mechanical Locks
- Department: Door Hardware
Typical Applications
- Commercial Office Buildings
- Educational Facilities and Schools
- Healthcare Institutions and Hospitals
- Retail Establishments
- Government and Municipal Buildings
- Multi-Tenant Residential and Mixed-Use Properties
- Industrial and Warehouse Facilities
Why Marks USA 295AB?
Marks USA 295AB Survivor Series locksets are built with solid cast zamac levers, stainless steel clutch components, and bronze roller bearings — a combination that delivers over 3.6 million cycles, exceeding BHMA Grade 1 requirements by 300%. UL Listed, ADA Compliant, and 3-Hour Fire Rated, the 295AB is engineered for the most demanding commercial door applications where dependable, low-maintenance performance is non-negotiable.
