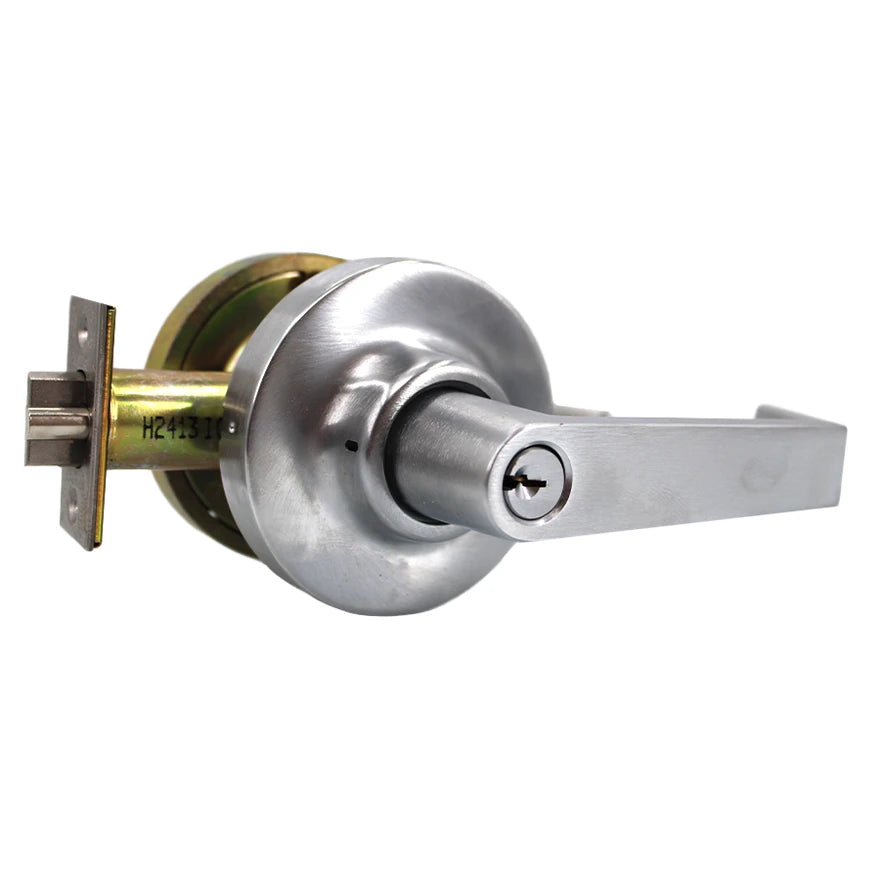

Marks USA 195T Corridor Clutched Lever Lockset with Marks C Keyway, 6 Pin, 2-3/4" Backset, ANSI Strike, Grade 1
Part Number: 195T
Marks USA 195T Corridor Clutched Lever Lockset — Marks C Keyway, 6 Pin, 2-3/4" Backset, Grade 1
The Marks USA 195T is a commercial-grade corridor clutched lever lockset engineered for exceptional durability and long-term performance in high-traffic environments. Featuring a unique stainless steel clutch mechanism and bronze roller bearings, this cylindrical lockset exceeds BHMA Grade 1 specifications by 300%, achieving over 3.6 million cycles. Designed for doors 1-5/8" to 1-7/8" thick with a 2-3/4" backset, it includes a Marks "C" keyway 6-pin cylinder with 2 keys and a 3-hour fire rating. The clutch design disengages the levers from the retractor when locked, eliminating lever droop and dramatically reducing wear on internal components.
Key Features
- Exceeds BHMA Grade 1 by 300%: Rated for over 3.6 million cycles, far surpassing standard Grade 1 requirements for unmatched longevity in demanding commercial applications.
- Unique Stainless Steel Clutch Mechanism: When locked, levers disengage from the retractor and swing freely without resistance, eliminating lever droop and dramatically reducing wear on internal lock components.
- Cast Bronze Roller Bearings: Solid cast retractors on bronze roller bearings provide a strong, durable chassis foundation for millions of cycles of reliable operation.
- Door Thickness & Backset Compatibility: Fits doors 1-5/8" to 1-7/8" thick; accommodates both 2-3/8" and 2-3/4" backsets. For 1-3/8" doors, use K1904 spacer.
- Latch #1834 Specifications: Front measures 1-1/8" x 2-1/4" with a 9/16" throw and stainless steel nose for corrosion resistance and reliable latching.
- Solid Cast Zamac Levers: Levers feature solid cast zamac construction with 1/2" return (except 395 & 495 models) for a robust, professional appearance and feel.
- Thru-Bolted Roses: 3-7/16" diameter roses are spring-loaded and secured with 2 #10 thru-bolts for a secure, rattle-free installation.
- Strike #1135 Included: 4-7/8" ASA curved lip strike included for proper door frame engagement and code-compliant installation.
- 3-Hour Fire Rated: Certified for 3-hour fire-rated door assemblies, supporting life-safety compliance in commercial buildings.
- Marks Lifetime Mechanical Warranty: Backed by Marks USA's Lifetime Mechanical Warranty for long-term confidence and lower total cost of ownership.
Certifications & Compliance
- ANSI/BHMA Grade 1 — Exceeds by 300% (over 3.6 million cycles)
- UL Listed
- 3-Hour Fire Rated
- ADA Compliant
- Marks Lifetime Mechanical Warranty
Technical Specifications
- Series: 195 Series
- Product Group: Mechanical Locks
- Product Subgroup: Bored Locksets
- ANSI/BHMA: ANSI/BHMA, UL Listed
- Commercial/Residential: Commercial
- Function Description: Latch retracted by knobs/levers at all times
- ADA Compliant: Yes
- Keyed: No
- ANSI Function: F75
- Product Function: Passage/Hall/Closet
- Latch Type Specification: Deadlocking
- Product Category: Mechanical Locks
- Department: Door Hardware
Typical Applications
- Commercial Office Buildings and Corporate Campuses
- Educational Facilities including Schools and Universities
- Healthcare Institutions and Medical Office Buildings
- Hotel and Hospitality Properties
- Government and Municipal Buildings
- Retail Establishments and Service Facilities
- Industrial and Institutional Facilities Requiring Fire-Rated Hardware
Why Marks USA 195T?
Marks USA 195T Corridor Clutched Lever Locksets are built on a foundation of solid cast zamac levers, stainless steel clutch components, and bronze roller bearings — a combination engineered to exceed BHMA Grade 1 specifications by 300% and deliver over 3.6 million cycles of reliable operation. UL Listed, 3-hour fire rated, and ADA compliant, the 195T is a professional-grade solution for commercial door openings where durability, safety compliance, and low maintenance are essential.
