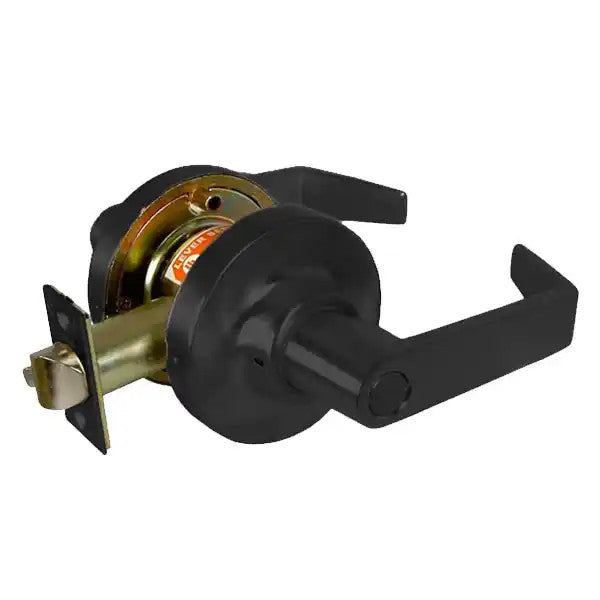

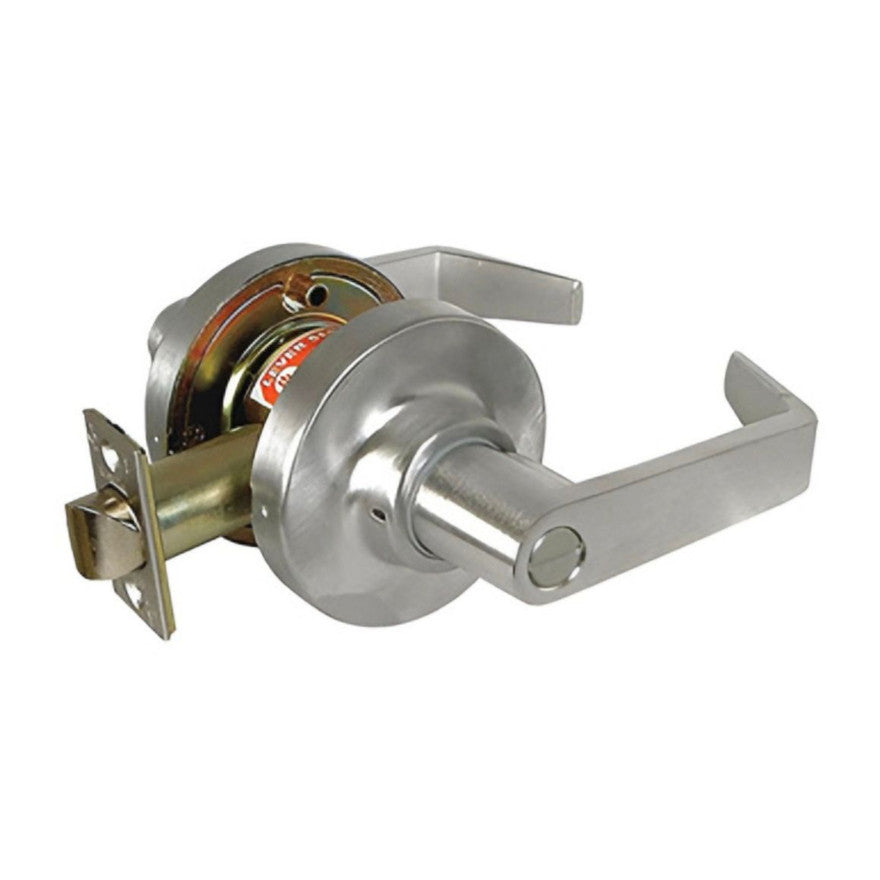

Marks USA 195P Patio Clutched Lever Lockset — Grade 1 Survivor Series, American Lever, 2-3/4" Backset
Part Number: 195P
Marks USA 195P Patio Clutched Lever Lockset — Grade 1 Survivor Series, American Lever, 2-3/4" Backset
The Marks USA 195P is a commercial-grade Patio Clutched Lever Lockset from the Survivor Series, engineered for exceptional durability and long-term performance in demanding applications. Featuring a unique stainless steel clutch mechanism paired with bronze roller bearings on a cast retractor chassis, this cylindrical lockset exceeds BHMA Grade 1 specifications by 300% — rated for over 3.6 million cycles. Designed for doors 1-5/8" to 1-7/8" thick with a 2-3/4" backset (2-3/8" backset also available), and 3-Hour Fire Rated for code-compliant installations.
Key Features
- Exceptional Cycle Rating: Exceeds BHMA Grade 1 specifications by 300%, tested to over 3.6 million cycles for unmatched long-term reliability in high-traffic commercial environments.
- Unique Clutch Mechanism: Stainless steel clutch disengages levers from the retractor and interior mechanisms when locked, allowing levers to swing freely without resistance — eliminating lever droop and dramatically reducing wear and maintenance.
- Heavy-Duty Chassis Construction: Cast retractors on bronze roller bearings provide a strong, durable foundation for millions of cycles of dependable operation.
- Solid Cast Zamac Levers: American lever style crafted from solid cast zamac with 1/2" return for a professional, lasting finish (except 395 & 495 variants).
- Latch Specifications: Latch #1834 with 1-1/8" x 2-1/4" front, 9/16" throw, and stainless steel nose for smooth, reliable latching performance.
- Thru-Bolted Roses: 3-7/16" diameter roses, spring loaded with 2 #10 thru-bolts for secure, tamper-resistant mounting.
- 3-Hour Fire Rated: Meets 3-hour fire rating requirements; compatible with 2-3/8" and 2-3/4" backsets for flexible installation.
- Marks "C" Keyway Cylinder: 6-pin cylinder with Marks "C" keyway and 2 keys included; K1904 spacer available for 1-3/8" doors.
- Marks Lifetime Mechanical Warranty: Backed by Marks USA's Lifetime Mechanical Warranty for long-term confidence and protection.
Certifications & Compliance
- ANSI/BHMA Grade 1 — Exceeds specification by 300% (over 3.6 million cycles)
- UL Listed
- 3-Hour Fire Rated
- ADA Compliant
- Marks Lifetime Mechanical Warranty
Technical Specifications
- Series: 195 Series
- Product Group: Mechanical Locks
- Product Subgroup: Bored Locksets
- ANSI/BHMA: ANSI/BHMA, UL Listed
- Commercial/Residential: Commercial
- Function Description: Latch retracted by knobs/levers at all times
- ADA Compliant: Yes
- Keyed: No
- ANSI Function: F75
- Product Function: Passage/Hall/Closet
- Latch Type Specification: Deadlocking
- Product Category: Mechanical Locks
- Department: Door Hardware
Typical Applications
- Commercial Office Buildings
- Educational Facilities and Schools
- Healthcare Institutions and Hospitals
- Retail Establishments
- Industrial and Warehouse Facilities
- Multi-Tenant Residential and Apartment Properties
- Government and Municipal Buildings
Why Marks USA 195P?
Marks USA 195P Survivor Series locksets are built to outperform standard commercial hardware, with a proprietary stainless steel clutch and bronze bearing chassis that exceeds BHMA Grade 1 requirements by 300% — delivering over 3.6 million cycles of reliable, low-maintenance operation. The innovative clutch design eliminates lever droop and reduces interior mechanism wear, making the 195P an ideal choice for high-traffic commercial doors where long-term performance and minimal maintenance are essential.
