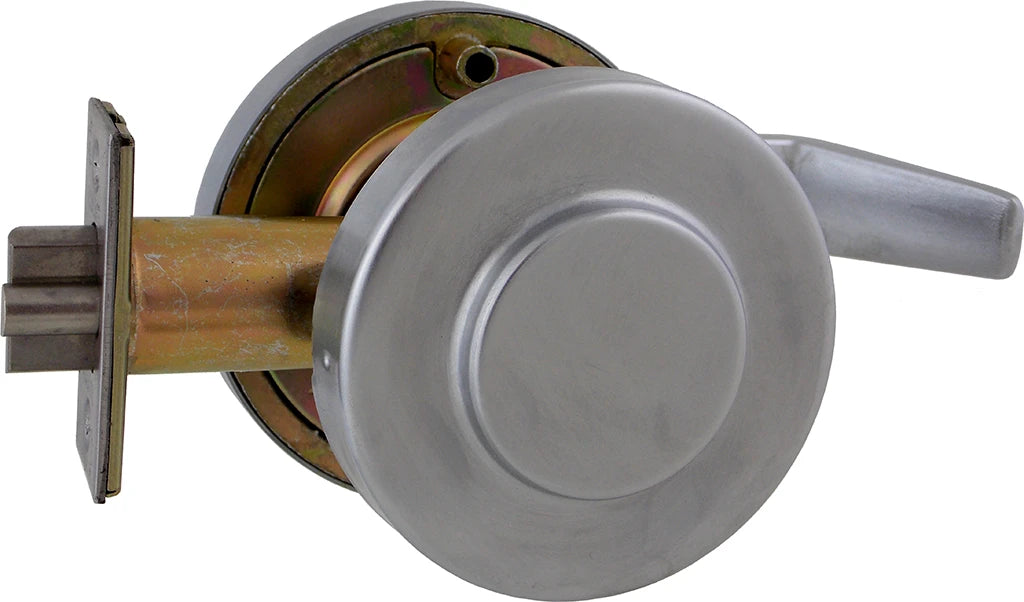

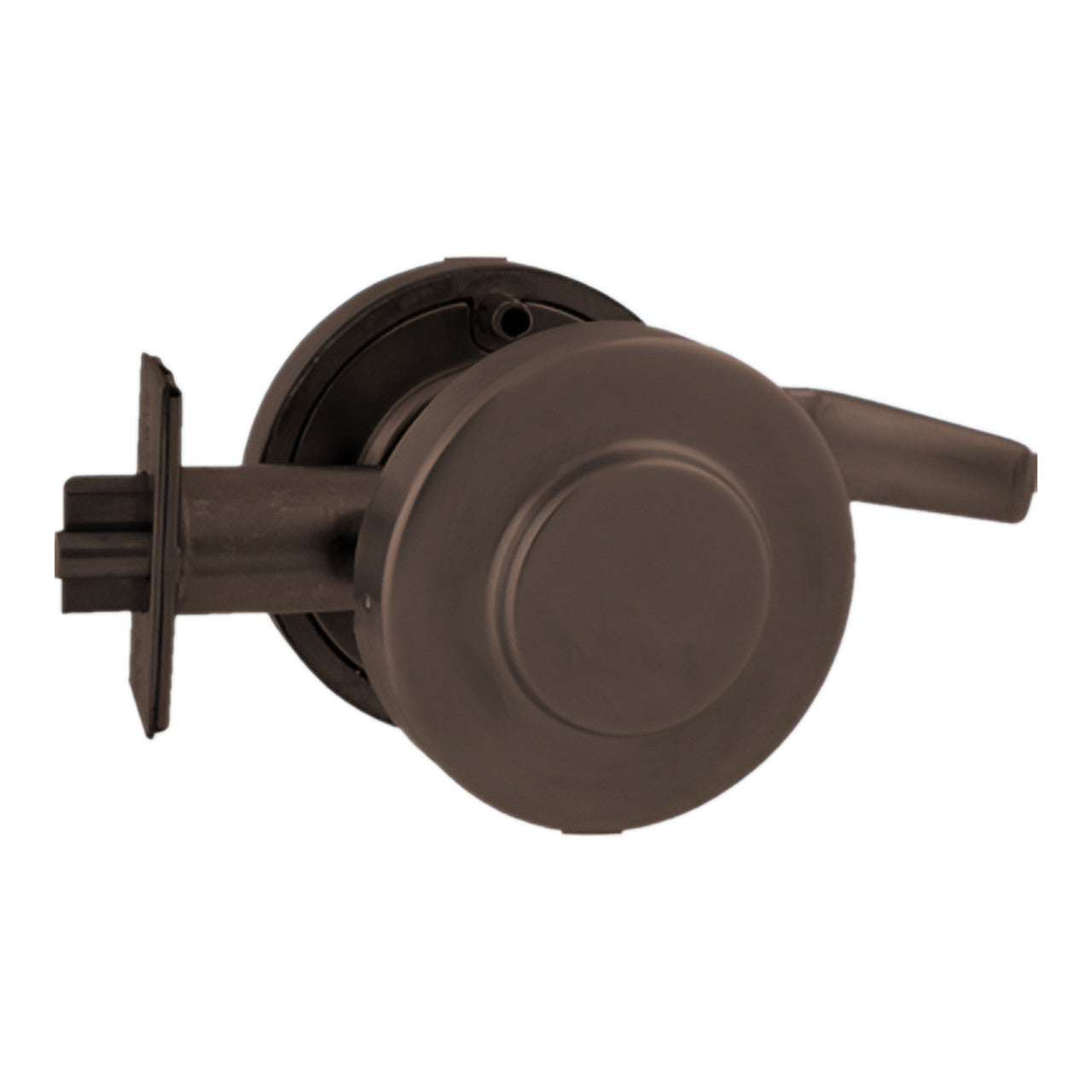

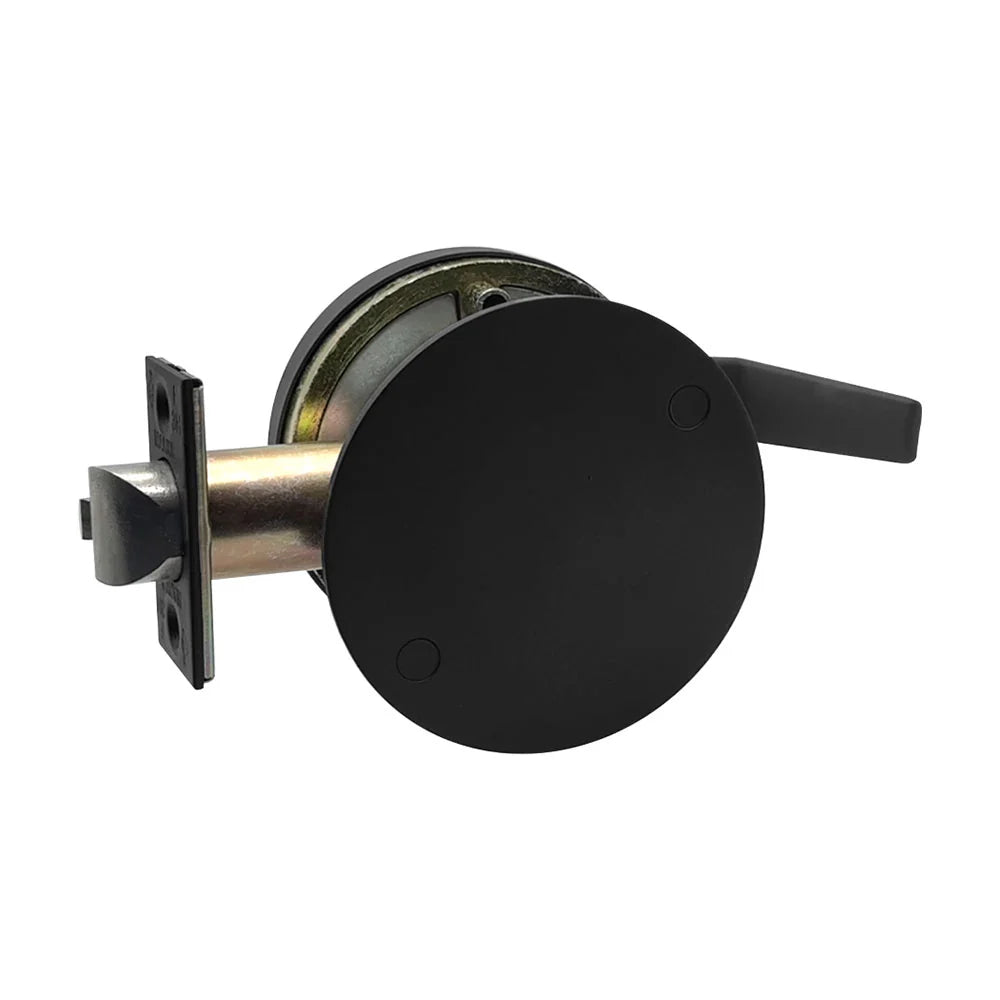

Marks USA 195NB Communicating Passage Clutched Lever Lockset — Survivor Series with Stainless Steel Clutch
Part Number: 195NB
Marks USA 195NB Communicating Passage Clutched Lever Lockset — Survivor Series with Lifetime Mechanical Warranty
The Marks USA 195NB is a commercial-grade cylindrical communicating passage lever lockset from the Survivor Series, engineered with a unique stainless steel clutch mechanism and bronze roller bearings that dramatically reduce wear, eliminate lever droop, and extend service life well beyond standard industry benchmarks. Designed for door thicknesses of 1-5/8" to 1-7/8" (with K1904 spacer for 1-3/8" doors), the 195NB supports both 2-3/8" and 2-3/4" backsets and carries a 3-Hour Fire Rating. The cast retractor on bronze roller bearings and solid cast zamac levers deliver a durable, lower-maintenance solution for high-traffic commercial environments, exceeding BHMA Grade 1 specifications by 300% — over 3.6 million cycles.
Key Features
- Exceptional Cycle Durability: Exceeds BHMA Grade 1 specifications by 300%, tested to over 3.6 million cycles for unmatched long-term reliability in demanding commercial applications.
- Unique Stainless Steel Clutch Mechanism: When locked, levers disengage from the retractor and interior mechanisms, swinging freely without resistance — eliminating lever droop and dramatically reducing component wear.
- Bronze Roller Bearing Construction: Cast retractors on bronze roller bearings provide a strong, durable chassis foundation that contributes to the lockset's millions-of-cycles service life.
- Backset & Door Compatibility: Accommodates 2-3/8" and 2-3/4" backsets; fits door thicknesses of 1-5/8" to 1-7/8"; use K1904 spacer for 1-3/8" doors.
- Latch Specifications: Latch #1834 with 1-1/8" x 2-1/4" front, 9/16" throw, and stainless steel nose for reliable latching performance.
- Thru-Bolted Rose Design: 3-7/16" diameter roses are spring-loaded and secured with 2 #10 thru-bolts for a solid, tamper-resistant installation.
- Strike Included: Ships with #1135 4-7/8" ASA curved lip strike for complete, ready-to-install configuration.
- 3-Hour Fire Rated: Meets fire door requirements for use in rated assemblies, supporting code compliance in commercial construction.
- Marks Lifetime Mechanical Warranty: Backed by Marks USA's Lifetime Mechanical Warranty for long-term confidence and protection.
Certifications & Compliance
- Exceeds ANSI/BHMA Grade 1 by 300% — over 3.6 million cycles
- ANSI/BHMA Certified, UL Listed
- 3-Hour Fire Rated
- ADA Compliant
- Marks Lifetime Mechanical Warranty
Technical Specifications
- Series: 195 Series
- Product Group: Mechanical Locks
- Product Subgroup: Bored Locksets
- ANSI/BHMA: ANSI/BHMA, UL Listed
- Commercial/Residential: Commercial
- Function Description: Latch retracted by knobs/levers at all times
- ADA Compliant: Yes
- Keyed: No
- ANSI Function: F75
- Product Function: Passage/Hall/Closet
- Latch Type Specification: Deadlocking
- Product Category: Mechanical Locks
- Department: Door Hardware
Typical Applications
- Commercial Office Buildings — communicating passage between adjoining suites or offices
- Healthcare Facilities — high-cycle corridor and patient room passage doors
- Educational Institutions — classroom and administrative passage doors requiring fire-rated hardware
- Hotel and Hospitality Properties — communicating room and suite passage configurations
- Government and Municipal Buildings — high-traffic passage doors requiring ADA-compliant hardware
- Multi-Tenant Residential and Mixed-Use Properties — fire-rated passage door applications
- Retail and Commercial Establishments — interior passage doors in high-use environments
Why Marks USA 195NB?
Marks USA 195NB Survivor Series locksets are built around a proprietary stainless steel clutch and bronze roller bearing chassis that exceeds BHMA Grade 1 performance by 300%, delivering over 3.6 million cycles of reliable operation. Solid cast zamac levers, a thru-bolted rose assembly, and a stainless steel nose latch combine with 3-Hour Fire Rating and ADA compliance to make the 195NB an engineered solution for the most demanding commercial passage door applications.
