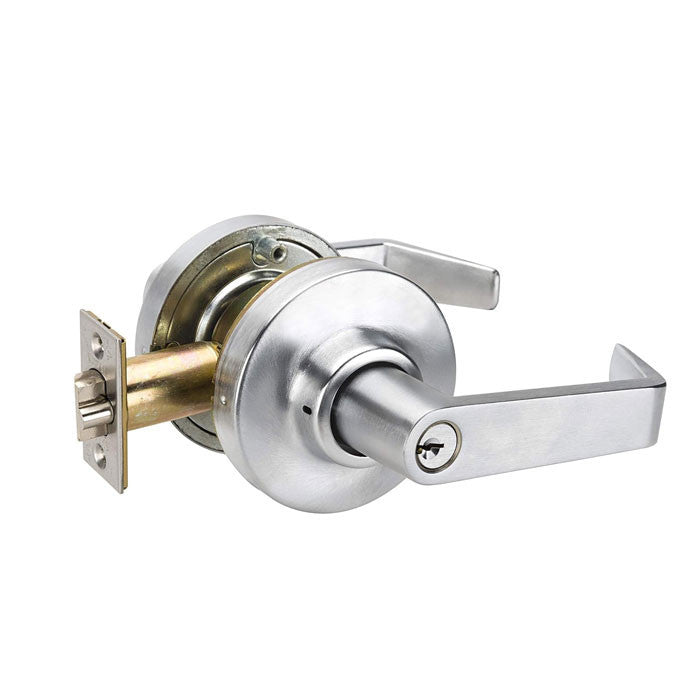

Marks USA 195FB Communicating Storeroom Clutched Lever Lockset with Breakaway Handles, 2-3/4" Backset, Grade 1
Part Number: 195FB
Marks USA 195FB Communicating Storeroom Clutched Lever Lockset with Breakaway Handles, 2-3/4" Backset, Grade 1
The Marks USA 195FB is a Grade 1 Communicating Storeroom Clutched Lever Lockset engineered for demanding commercial applications. Supplied with 6-pin cylinders in Marks "C" keyway and 2 nickel-silver keys, this lockset features a cast stainless steel retractor with bronze roller bearings for ultra-high strength, smooth operation, and long life. The 195FB supports a standard 2-3/4" backset (with 2-3/8", 3-3/4", and 5" optional) and accommodates door thicknesses of 1-5/8" to 1-7/8" (use K1704 spacer for 1-3/8" doors). UL Listed and 3-hour fire rated, this lockset is built to exceed ANSI/BHMA standards in high-traffic commercial environments.
Key Features
- Exceptional Torque Resistance: Withstands torque of 1,800 inch-pounds — over twice the ANSI/BHMA (1996) test value — for superior durability under abuse.
- Proven Cycle Life: Life tested over 6 million cycles and fully operational after testing, ensuring long-term reliability in high-traffic applications.
- Clutch Mechanism: Features "The Clutch" — when locked, the clutch disengages the outside lever allowing it to turn freely without opening the latch, reducing torque on the outside lever and preventing the failures common with rigid lever locksets.
- Breakaway Handles: American and Crescent design breakaway handles protect against excessive abuse and forced entry attempts.
- Backset & Door Compatibility: Standard 2-3/4" backset; optional 2-3/8", 3-3/4", and 5" backsets available. Fits door thicknesses of 1-5/8" to 1-7/8" (K1704 spacer required for 1-3/8" doors).
- Latch Specifications: Latch #1834 with 1-1/8" x 2-1/4" front, 9/16" throw, and stainless steel nose for corrosion resistance and smooth latching.
- Rose & Mounting: Thru-bolted rose, 3-7/16" diameter, spring loaded with 2 #10 thru-bolts; epoxy-coated bolts ensure vibration-proof mounting with only two thru-bolts for easy installation.
- Electrified Option: 100% duty cycle; 24V/AC supplied with bridge rectifier; 24V/DC at 0.21 Amps standard; 12V/DC optional. Request to Exit (REX) Switch available: single pole, double throw, 3 amp, 125 AC, wired normally open or normally closed (not standard on electrified leverset).
- Cylinder Options: Marks C keyway, 6-pin with 2 keys or IC Core housing for master key system compatibility.
- Strike: Strike #1135, 4-7/8" ASA curved lip for secure door frame engagement.
Certifications & Compliance
- ANSI/BHMA Grade 1
- UL Listed
- 3-Hour Fire Rated
- ADA Compliant
Technical Specifications
- Series: 195 Series
- Product Group: Mechanical Locks
- Product Subgroup: Bored Locksets
- Product Type: Cylindrical Locks
- Subcategory: Cylindrical Locks
- ANSI/BHMA: ANSI/BHMA, UL Listed
- Commercial/Residential: Commercial
- Lock Type: Cylindrical
- Function Description: Latch retracted by knobs/levers at all times
- ADA Compliant: Yes
- Keyed: No
- ANSI Function: F75
- Product Attribute: Cylindrical Locks
- Product Function: Passage/Hall/Closet
- Latch Type Specification: Deadlocking
- Product Category: Mechanical Locks
- Department: Door Hardware
Typical Applications
- Commercial Office Buildings
- Educational Facilities and Classrooms
- Healthcare Institutions and Hospitals
- Retail Establishments and Storerooms
- Government and Municipal Buildings
- Industrial and Warehouse Facilities
- Multi-Tenant Residential and Institutional Properties
Why Marks USA 195FB?
The Marks USA 195FB delivers professional-grade security with a cast stainless steel retractor and bronze roller bearings rated for over 6 million life cycles, withstanding torque of 1,800 inch-pounds — more than twice the ANSI/BHMA test requirement. Its patented clutch mechanism and breakaway handle design set it apart from rigid lever locksets, making it the dependable choice for high-traffic commercial applications where long-term performance and resistance to abuse are essential.
