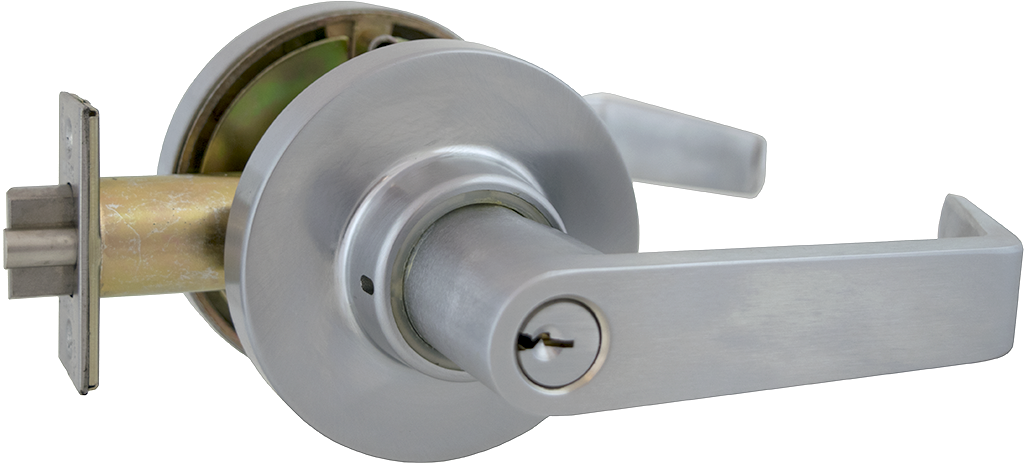

Marks USA 195DB Classroom Intruder Clutched Lever Lockset with Breakaway Handles, Marks C Keyway, 6 Pin
Part Number: 195DB
Marks USA 195DB Classroom Intruder Clutched Lever Lockset with Breakaway Handles, Marks C Keyway, 6 Pin
The Marks USA 195DB is a Grade 1 commercial cylindrical lever lockset engineered for classroom intruder protection, featuring "The Clutch" — a mechanism that disengages the outside lever when locked, allowing it to spin freely without opening the latch and dramatically reducing torque-related failure risk. Supplied with 6-pin cylinders in Marks "C" keyway and 2 nickel-silver keys, this lockset withstands torque of 1,800 inch-pounds — over twice the ANSI/BHMA (1996) test value — and has been life tested over 6 million cycles with full operability after testing. Designed for doors 1-5/8" to 1-7/8" thick (K1704 spacer required for 1-3/8" doors), it supports a standard 2-3/4" backset with optional 2-3/8", 3-3/4", and 5" backsets available. UL Listed and 3-hour fire rated, the 195DB is ADA compliant and built for demanding commercial environments.
Key Features
- Clutch Mechanism — "The Clutch": When locked, the outside lever disengages and spins freely without actuating the latch, eliminating the excessive torque that causes rigid-lever locksets to fail under forced entry attempts.
- Exceptional Torque Resistance: Withstands 1,800 inch-pounds of torque — more than twice the ANSI/BHMA (1996) test value — for superior security in high-risk environments.
- Heavy-Duty Cycle Rating: Life tested over 6 million cycles with full operational integrity maintained after testing, ensuring long-term reliability in high-traffic applications.
- Breakaway Handles: American and Crescent design breakaway handles protect against excessive abuse and lever manipulation attempts.
- Cast Stainless Steel Retractor with Bronze Roller Bearings: Delivers ultra-high strength, smooth operation, and extended service life.
- Solid Cast Zamac Levers: Levers feature a 1/2" return; rose is thru-bolted at 3-7/16" diameter with spring-loaded 2-#10 thru-bolts for vibration-proof mounting using #10 epoxy-coated bolts.
- Latch & Strike Specifications: Latch #1834 with 1-1/8" x 2-1/4" front, 9/16" throw, and stainless steel nose; Strike #1135, 4-7/8" ASA curved lip.
- Door Thickness Compatibility: Fits doors 1-5/8" to 1-7/8" thick; use K1704 spacer for 1-3/8" doors. Standard backset 2-3/4"; optional 2-3/8", 3-3/4", and 5" backsets available.
- Electrified Function Option: 100% duty cycle; 24V/AC supplied with bridge rectifier; 24V/DC at 0.21 Amps; 12V/DC optional. Request to Exit (REX) Switch available: single pole, double throw, 3 amp, 125 AC, wired normally open or normally closed (not standard).
- Versatile Function Availability: Available in Passage, Privacy, Patio, Communicating, Entry, Exit, Classroom, Storeroom, Institution, Vestibule, Corridor, Store Door, Hospital/Privacy, Service Station Lock, Classroom Intruder, Dummy Trim, and more.
Certifications & Compliance
- ANSI/BHMA Grade 1 — Exceeds ANSI/BHMA (1996) torque test value by over 2x
- UL Listed
- 3-Hour Fire Rated
- ADA Compliant
Technical Specifications
- Series: 195 Series
- Product Group: Mechanical Locks
- Product Subgroup: Bored Locksets
- Product Type: Cylindrical Locks
- Subcategory: Cylindrical Locks
- ANSI/BHMA: ANSI/BHMA, UL Listed
- Commercial/Residential: Commercial
- Lock Type: Cylindrical
- Function Description: Latch retracted by knobs/levers at all times
- ADA Compliant: Yes
- Keyed: No
- ANSI Function: F75
- Product Attribute: Cylindrical Locks
- Product Function: Passage/Hall/Closet
- Latch Type Specification: Deadlocking
- Product Category: Mechanical Locks
- Department: Door Hardware
Typical Applications
- K-12 Schools and Educational Facilities Requiring Classroom Intruder Lockdown Capability
- Universities and Higher Education Buildings
- Healthcare Institutions and Hospital Corridors
- Government and Municipal Buildings
- Commercial Office Buildings
- Retail and Service Establishments
- Multi-Tenant Residential and Institutional Properties
Why Marks USA 195DB?
The Marks USA 195DB stands apart from conventional lever locksets through its patented clutch mechanism, which eliminates the torque-induced failures common in rigid-lever designs by allowing the outside lever to spin freely when locked. With a verified torque resistance of 1,800 inch-pounds — more than double the ANSI/BHMA (1996) standard — and a life test exceeding 6 million cycles, the 195DB delivers the durability and security performance that demanding commercial and institutional environments require. UL Listed, 3-hour fire rated, and ADA compliant, it is a trusted solution wherever classroom intruder protection and long-term reliability are non-negotiable.
