Marks USA 195BHN LifeSaver Behavioral Health Anti-Ligature Passage Lever Lockset — Grade 1, Stainless Steel, Lifetime Warranty
Part Number: 195BHN
Marks USA 195BHN LifeSaver Behavioral Health Anti-Ligature Passage Lever Lockset — Grade 1, Stainless Steel, Lifetime Warranty

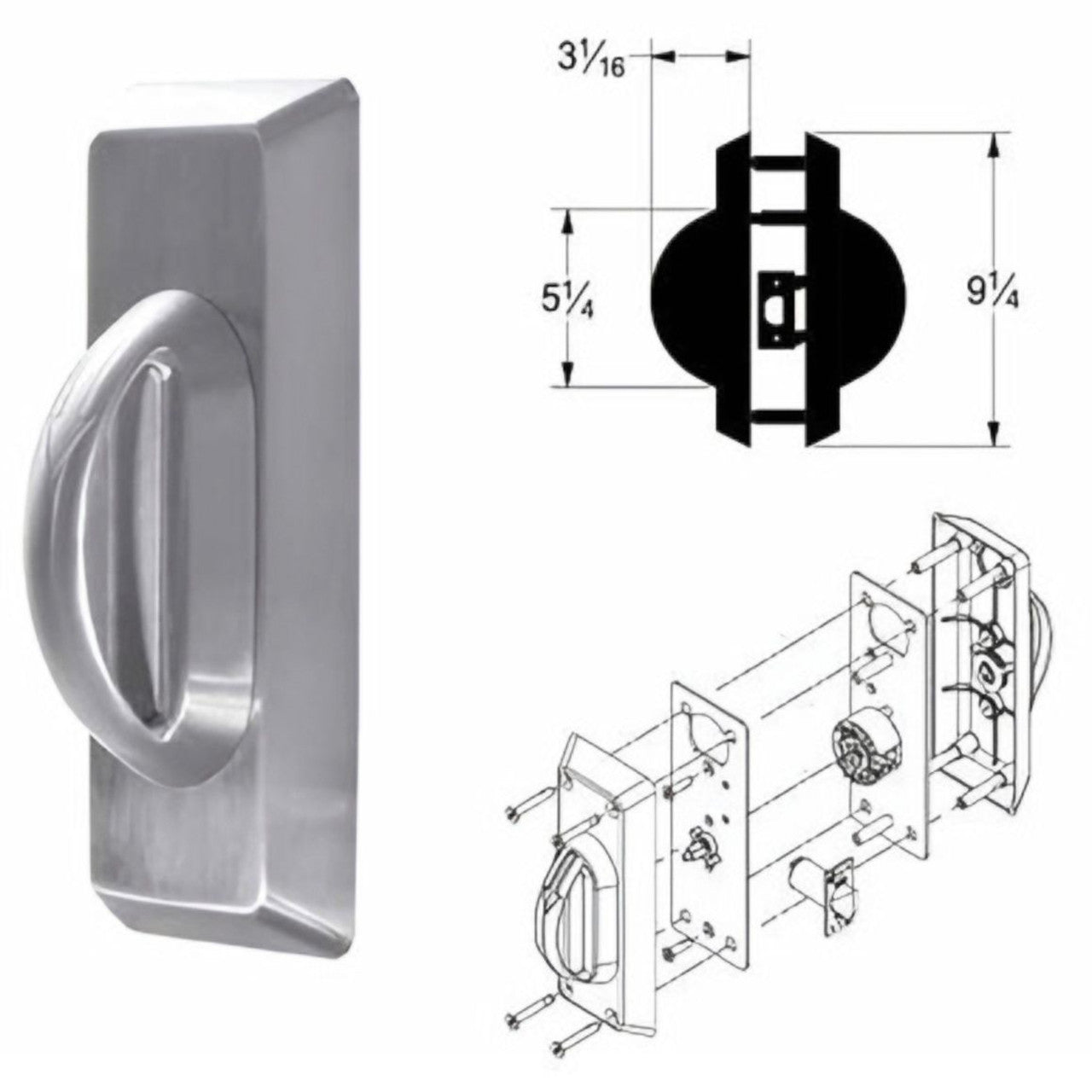

The Marks USA 195BHN is part of the LifeSaver Series, a line of ANSI A156.2 Grade 1 institutional life safety locksets engineered specifically for Behavioral Health Care Institutions, X-ray settings, and correctional facilities. Featuring a 5-Point Ligature Resistant D-Lig Slide Trim that meets the BHMA 156.34 Anti-Ligature Trim Standard, this cylindrical passage lockset is constructed entirely of solid cast stainless steel for maximum durability and corrosion resistance. Designed for 1-3/4" door thickness with a standard 2-3/4" backset, it retrofits all popular door preps and constructions, and carries a UL Listed 3-Hour Fire Rating alongside ADA compliance.
Key Features

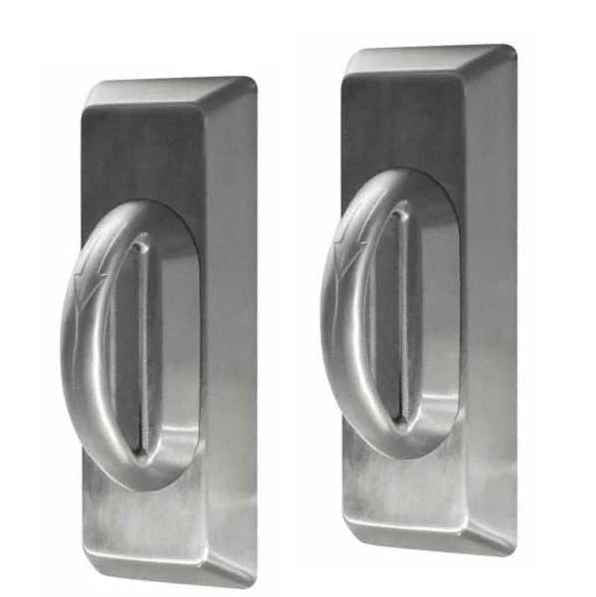

- 5-Point Ligature Resistant Slide Trim: D-Lig Slide design meets BHMA 156.34 Anti-Ligature Trim Standard, engineered to reduce self-harm risks in behavioral health and institutional environments.
- ANSI A156.2 Grade 1 & UL Listed 3-Hour Fire Rating: Certified for the most demanding commercial and institutional applications requiring verified life safety performance.
- Ergonomic Solid Cast Stainless Steel Slide: Slides down freely in both the locked and unlocked position, providing intuitive operation while maintaining institutional security requirements.
- Solid Cast Stainless Steel Escutcheon Plate: Through-bolted for superior strength and simplified installation, ensuring long-term structural integrity under heavy use.
- Marks Stainless Steel Retractor — Long Life: Rated at 3X the BHMA Grade 1 cycle standard for exceptional longevity in high-traffic, high-demand institutional settings.
- Backset Flexibility: Standard 2-3/4" backset with 2-3/8", 3-3/4", and 5" options available to accommodate a wide range of door preparations.
- Latch — #1834 Stainless Steel Nose: Deadlocking latch with 1/2" throw and 1-1/8" x 2-1/4" front size for reliable latching performance.
- Strike — #1135, 4-7/8" ASA Curved Lip: ANSI-compliant 1-1/4" x 4-7/8" square corner strike with 1-1/4" lip for secure door frame engagement.
- Tamper Resistant Mounting Screws: Deters unauthorized disassembly, critical for correctional and behavioral health security environments.
- Antimicrobial Finish Available: Optional antimicrobial finish (Code AM) supports hygiene requirements in healthcare and institutional settings.
- Cylinder Options: Conventional Key-in-Knob cylinder with Marks "C" Keyway, 6-pin with 2 keys; available in IC and all OEM cylinder preps. Marks Hi-Security Cylinder also available.
- Marks Lifetime Mechanical Warranty: Backed by the Marks USA Lifetime Mechanical Warranty for long-term confidence and protection.
Certifications & Compliance
- ANSI A156.2 Grade 1
- UL Listed — 3-Hour Fire Rating
- BHMA 156.34 Anti-Ligature Trim Standard
- ANSI/BHMA Certified
- ADA Compliant
- Marks USA Lifetime Mechanical Warranty
Technical Specifications
- Latch Throw: 1/2"
- Product Group: Mechanical Locks
- Product Subgroup: Bored Locksets
- Product Type: Cylindrical Locks
- Subcategory: Cylindrical Locks
- ANSI/BHMA: ANSI/BHMA, UL Listed
- Commercial/Residential: Commercial
- Function Description: Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
- Front Size: 1-1/8" x 2-1/4"
- ADA Compliant: Yes
- Keyed: Yes
- ANSI Function: F109
- Product Attribute: Cylindrical Locks
- Product Function: Entrance/Office
- Door Thickness Range: 1-3/4"
- Latch Type Specification: Deadlocking
- Strike Classification: ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner
- Product Category: Mechanical Locks
- Backset (Distance): 2-3/4"
- Department: Door Hardware
Typical Applications
- Behavioral Health Care Institutions
- Correctional Facilities
- X-Ray and Medical Imaging Settings
- Psychiatric and Mental Health Wards
- Healthcare and Hospital Facilities
- Institutional and Government Buildings
- High-Security Commercial Environments
Why Marks USA 195BHN LifeSaver?
Marks USA LifeSaver locksets are purpose-built for the most demanding institutional environments, combining solid cast stainless steel construction with a retractor rated at 3X the BHMA Grade 1 cycle standard for unmatched longevity. The 195BHN meets ANSI A156.2 Grade 1, carries a UL Listed 3-Hour Fire Rating, and complies with BHMA 156.34 Anti-Ligature standards — delivering the verified life safety performance and managed liability protection that behavioral health and correctional facilities require.
