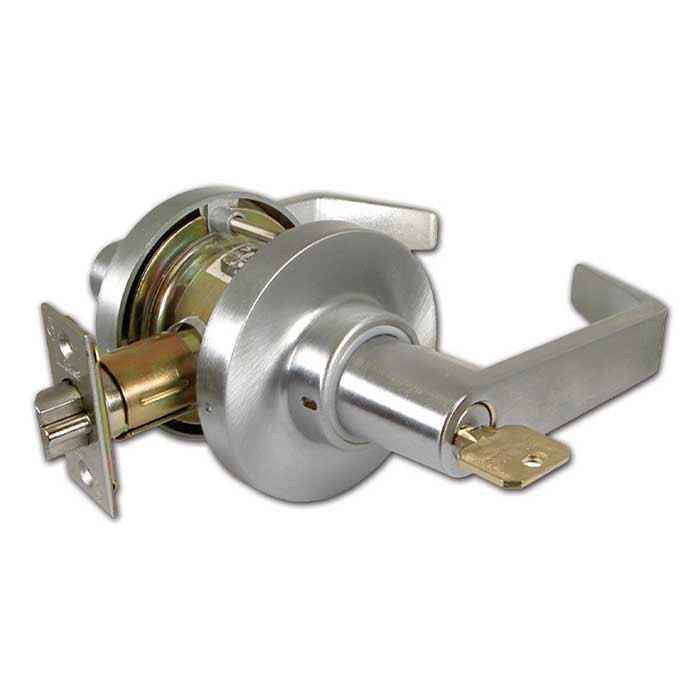

Marks USA 175T Corridor Lever Lockset — Survivor Series, Clutch Mechanism, ADA Compliant, Grade 1
Part Number: 175T
Marks USA 175T Corridor Lever Lockset — Survivor Series, Clutch Mechanism, ADA Compliant
The Marks USA 175T is a Grade 1 Survivor Series Corridor Lever Lockset engineered for demanding commercial environments where durability and low maintenance are essential. Featuring a unique clutch mechanism, the levers disengage from the retractor and interior lock components when locked, allowing them to swing freely without resistance — eliminating lever droop and dramatically reducing wear on internal components. Designed for doors 1-5/8" to 1-7/8" thick (with optional K1704 spacer for 1-3/8" doors), this cylindrical lockset ships with a 2-3/4" backset and a MARKS "C" keyway 6-pin cylinder with 2 keys. ANSI/BHMA certified and UL Listed, it meets the rigorous demands of asylum, institution, and utility applications.
Key Features
- Innovative Clutch Mechanism: When locked, levers disengage from the retractor and interior mechanisms, allowing free swing without resistance — eliminating lever droop and reducing long-term wear on lock components.
- Door Thickness Compatibility: Accommodates doors 1-5/8" to 1-7/8" thick; use K1704 spacer for 1-3/8" doors for versatile installation across door types.
- Backset & Latch Specifications: 2-3/4" backset with Latch #1134 featuring a 1-1/8" x 2-1/4" front, 1/2" throw, and stainless steel nose for reliable latching performance.
- Solid Cast Zamac Levers: Levers are constructed from solid cast Zamac with a 1/2" return (except models 370 & 470), providing exceptional strength and a professional appearance.
- Thru-Bolted Rose Design: 3-1/4" diameter roses are spring-loaded and secured with 2 #10 thru-bolts for a secure, tamper-resistant installation.
- MARKS "C" Keyway Cylinder: 6-pin cylinder with MARKS "C" keyway and 2 keys included; ANSI Function F87 — deadlocking latch bolt operated by key in lever from either side with both levers always inoperable.
- ASA Strike Included: Ships with Strike #1145 ASA strike, classified ANSI 1-1/4" x 4-7/8", 1-1/4" lip, square corner for standard door frame compatibility.
- ADA Compliant: Lever design meets ADA accessibility requirements, making it suitable for public and commercial facilities requiring accessible hardware.
Certifications & Compliance
- Grade 1 — ANSI/BHMA Certified
- UL Listed
- ADA Compliant
- ANSI Function F87 — Asylum/Institution/Utility
Technical Specifications
- Grade: Grade 1
- Product Group: Mechanical Locks
- Product Subgroup: Bored Locksets
- Product Type: Cylindrical Locks
- Subcategory: Cylindrical Locks
- ANSI/BHMA: ANSI/BHMA, UL Listed
- Commercial/Residential: Commercial
- Function Description: Deadlocking latch bolt operated by key in lever from either side. Both levers are always inoperable.
- ADA Compliant: Yes
- Keyed: Yes
- ANSI Function: F87
- Product Attribute: Cylindrical Locks
- Product Function: Asylum/Institution/Utility
- Door Thickness Range: 1-3/4"
- Strike Classification: ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner
- Product Category: Mechanical Locks
- Department: Door Hardware
Typical Applications
- Asylum and Institutional Facilities
- Healthcare and Hospital Environments
- Educational Institutions and Schools
- Government and Municipal Buildings
- Commercial Office Buildings
- Utility and Maintenance Areas
- Multi-Tenant Residential and Mixed-Use Properties
Why Marks USA 175T?
Marks USA 175T Survivor Series locksets are built around a patented clutch mechanism that sets them apart from conventional cylindrical lever locks — when locked, levers disengage entirely from internal components, eliminating the wear, lever droop, and maintenance cycles that plague standard lever sets. Constructed with solid cast Zamac levers, thru-bolted roses, and a stainless steel latch nose, the 175T delivers Grade 1, ANSI/BHMA-certified, UL Listed performance engineered for the most demanding commercial and institutional applications.
