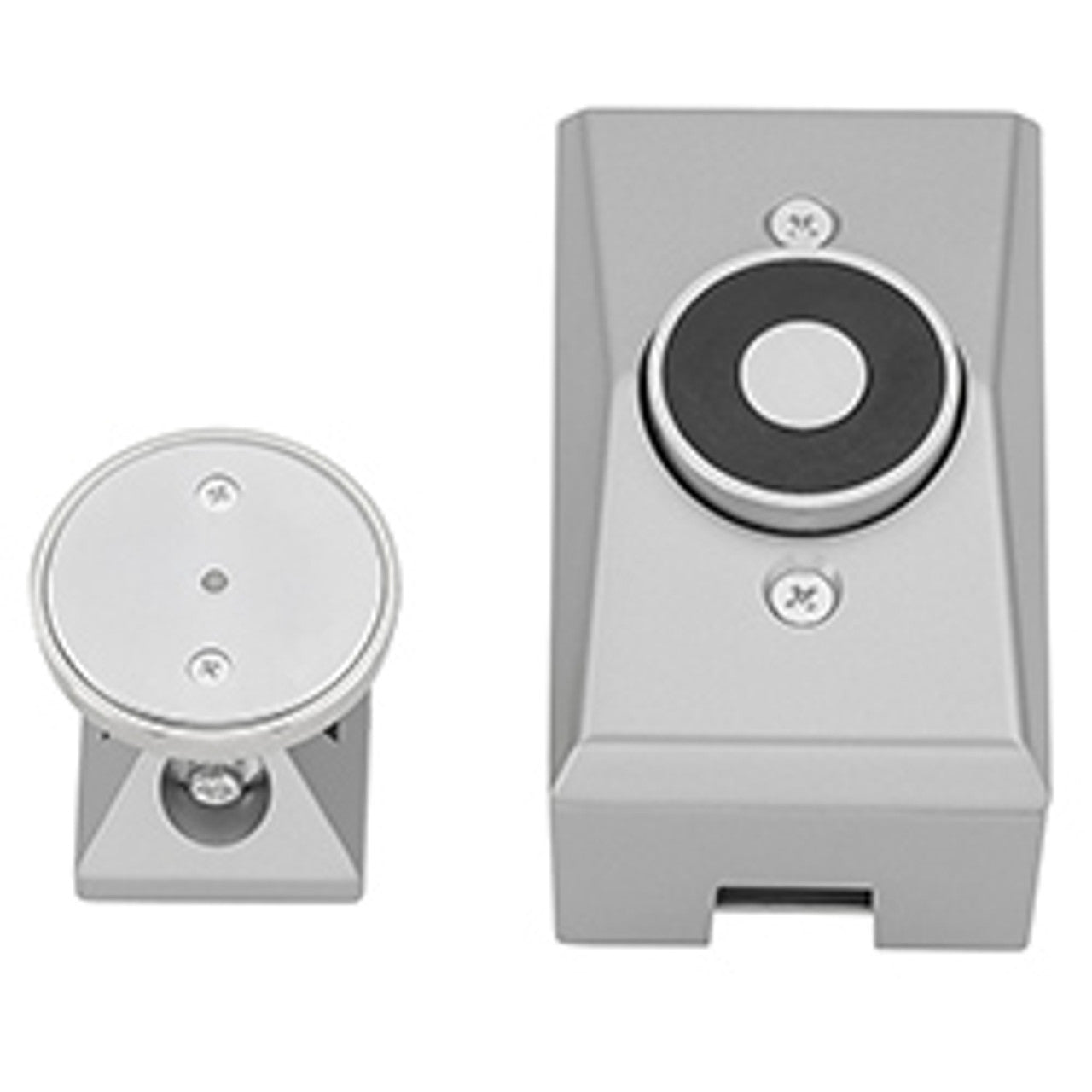

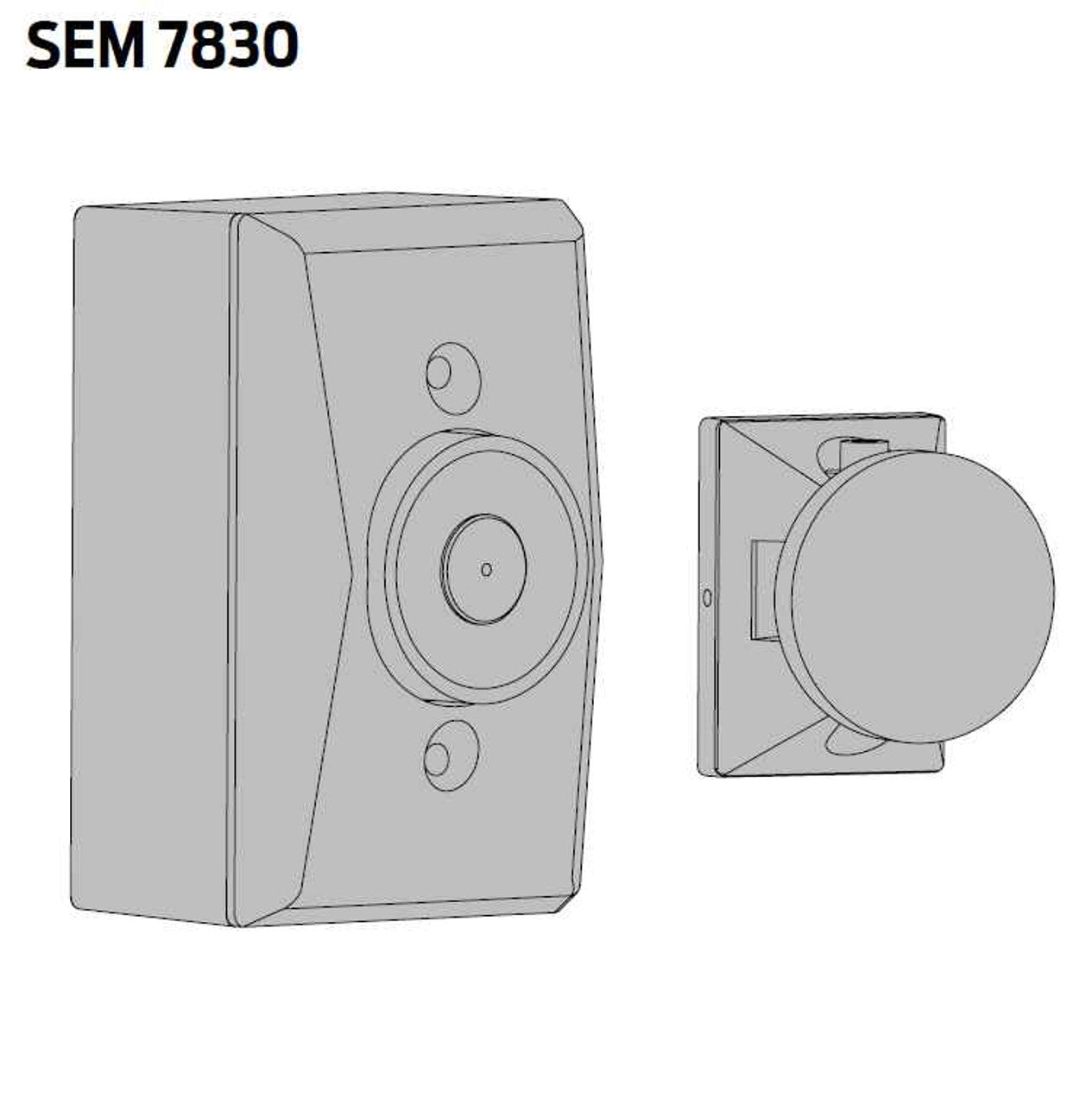

LCN SEM7830 Series, heavy duty, electrically Controlled Door Holding Magnets - Powder coat Finish

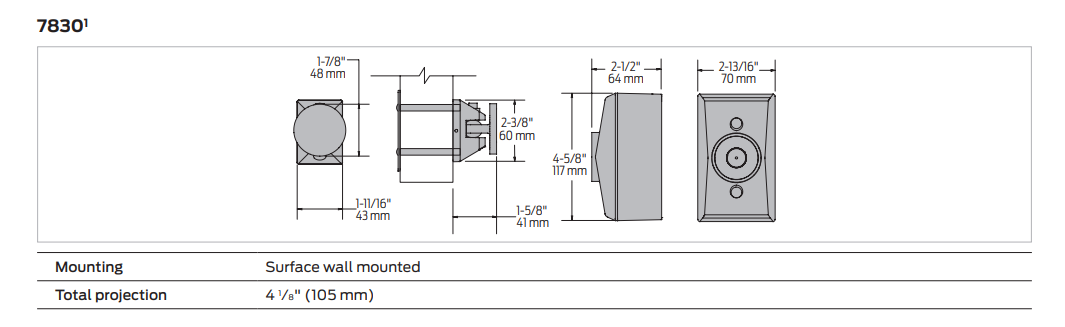

Mounting: Surface wall mounted
Total projection: 4 1⁄8" (105 mm)

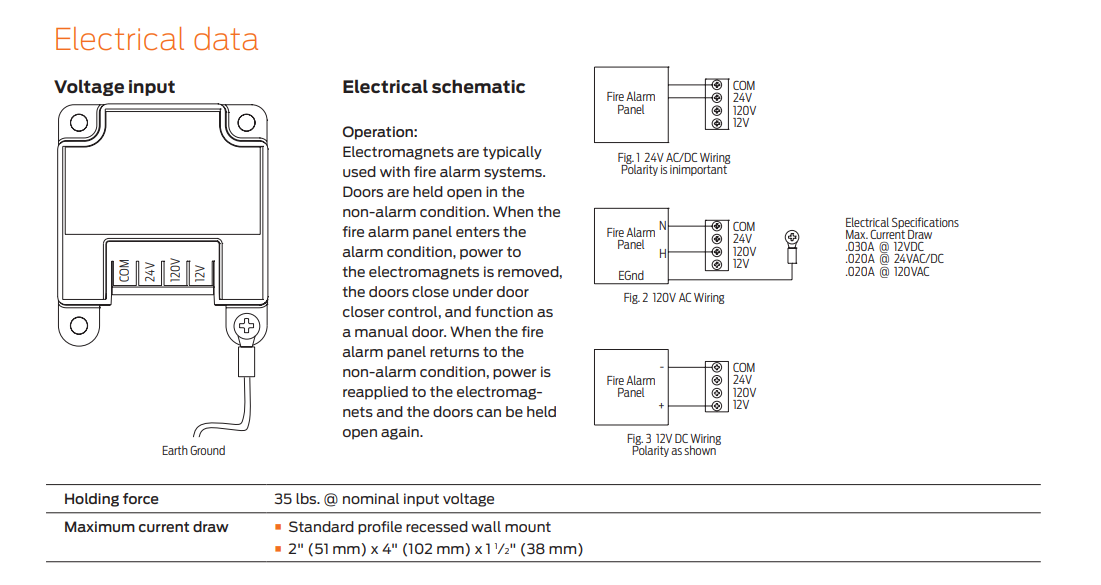

The Sentronic 7800 Series magnet releases when the fire alarm panel enters an alarm condition and the electrical current is interrupted, allowing the Door to perform manually until Power returns. The tri-voltage design provides 35 pounds of holding force. The magnet is fail-safe and will hold the Door until the current is interrupted. The SEM 7800 Series is protected by a 2-year warranty, meets ANSI/BHMA 156.15 and is UL Listed for metal smoke barrier or labeled fire doors. All magnets in the Series feature die-cast housings and are available in aluminum and dark bronze finishes. The SEM 7820 is floor-mounted, the SEM 7830 is surface wall-mounted, the SEM 7840 is low-profile recessed wall-mounted and the SEM 7850 is standard-profile recessed wall-mounted. All magnets but the SEM 7820 are suitable for pocket Door installation.
FEATURES
Body construction
- Die cast housing
- Choice of floor-mounted, recessed wall-mounted and Surface-Mounted wall magnets
- Heavy-duty design
Quality and durability
- Tri-voltage design provides 35 pounds of holding force
- Magnets are fail-safe until the electrical current is interrupted
- Performs manually under alarm conditions until Power returns
Installation
- Wood and machine screw pack fasteners

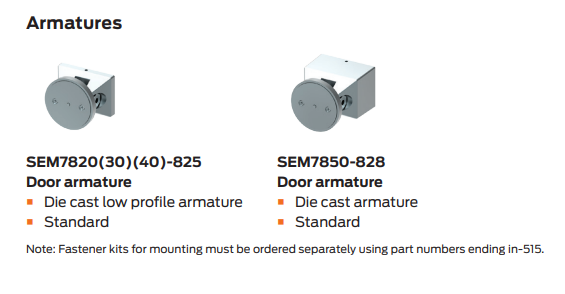

- Armature extensions available
- SEM 7830, 7840 and 7850 can be used in pocket Door installations

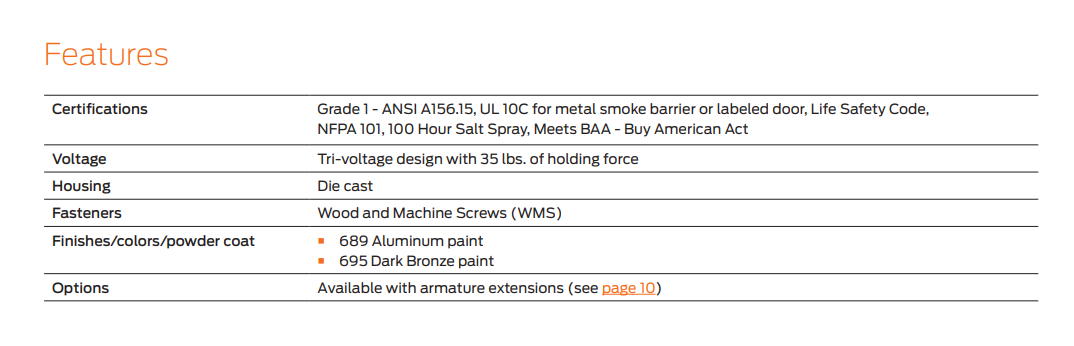

Specifications
- Tested and certified under ANSI/BHMA A156.15
- UL listed for metal smoke barrier or labeled fire doors
Designs and Finishes

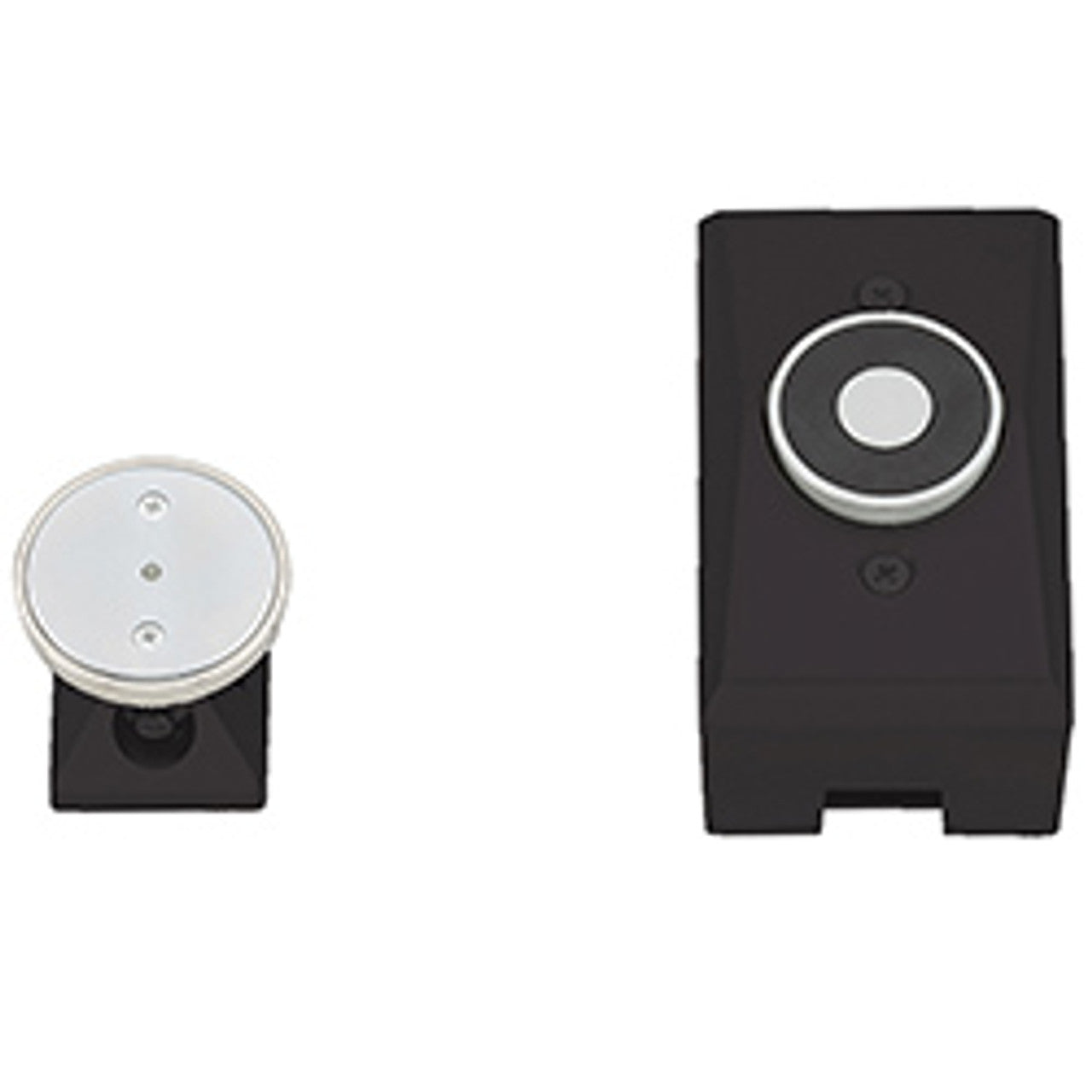

- Available in aluminum and dark bronze finishes
- Standard die-cast cover

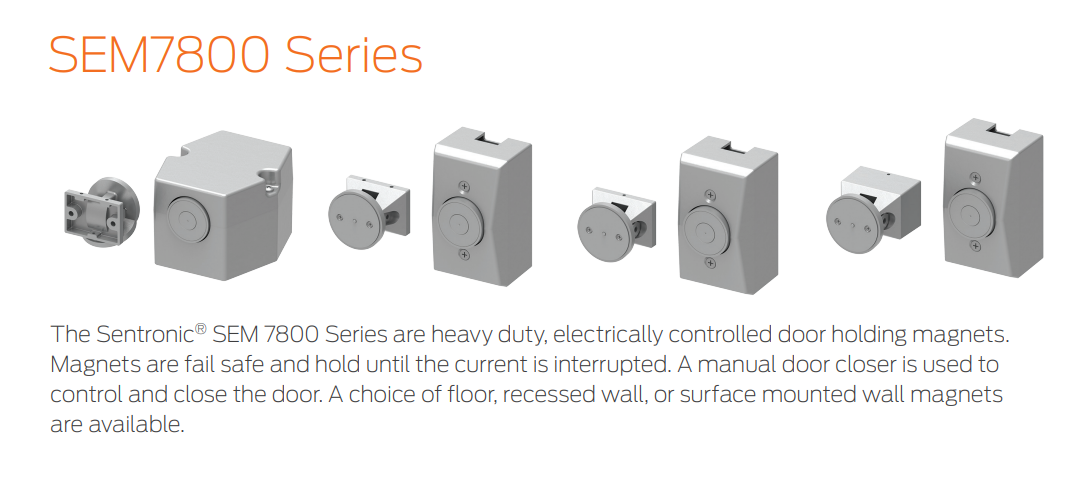

Mounting/Arm Options The SEM 7800 Series can be floor-mounted (7820), surface wall-mounted (7830), low-profile recessed wall-mounted (7840), and standard profile recessed wall-mounted (7850). View the SEM 7800 catalog pages for mounting details and accessories.
