G-U TRIPACT EUROPA ACTIVE MULTIPOINT LOCK WITH TONGUES
Part Number: 49903017-50-FG
G-U Tripact Europa Series - 3 Point Locking Gear with Tongue locks
- Series: Europa - Tripact Door Lock Gear only
- Function: Tongue version, locks horizontally at top and bottom of door panel.
- Faceplate Width: 5/8 inch (16mm)

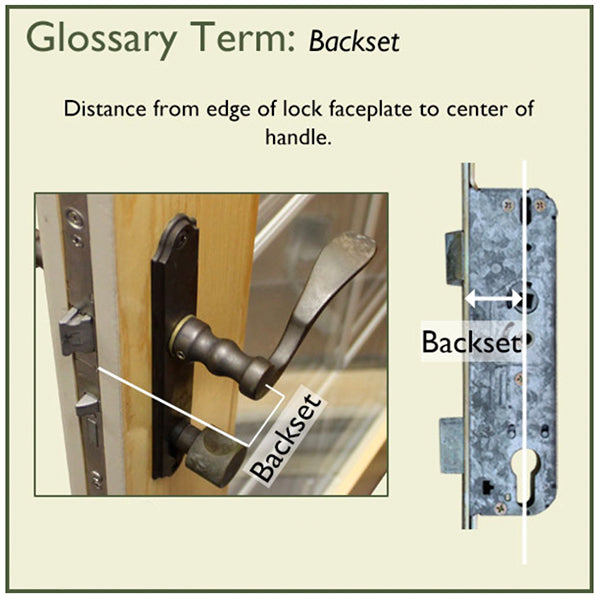

- Available Backsets: 1-3/16 in. (30mm), 1-3/8 in. (35mm), 1-9/16 in. (40mm), 1-3/4 in. (45mm), 2 in. (50mm), 2-5/32 in. (55mm)
- Handle to Cylinder Spacing (Centers): 3-5/8 inch (92mm)

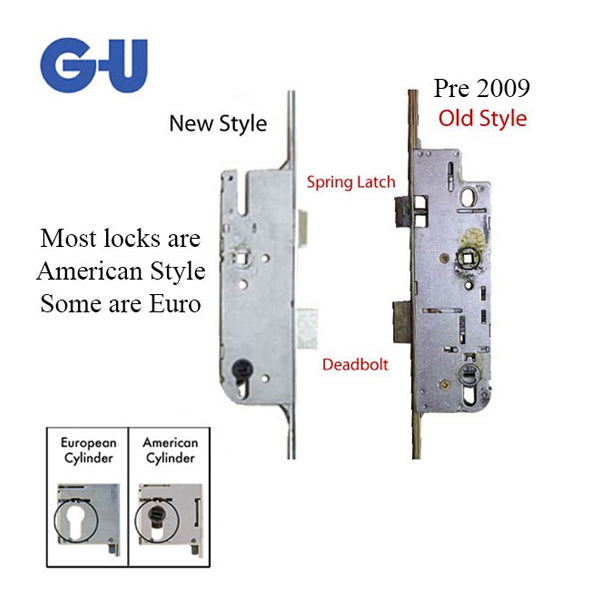

- Cylinder: US-Cylinder system with a 90 degree turn of key or thumbturn (American cylinder)
- Handle Position: Key below Handle (Europa)
- Handle Height: Normally used with 35 inch (889mm) handle height
- Faceplate Finish: Silver ferguard or black
- Spindle Size: 8mm square

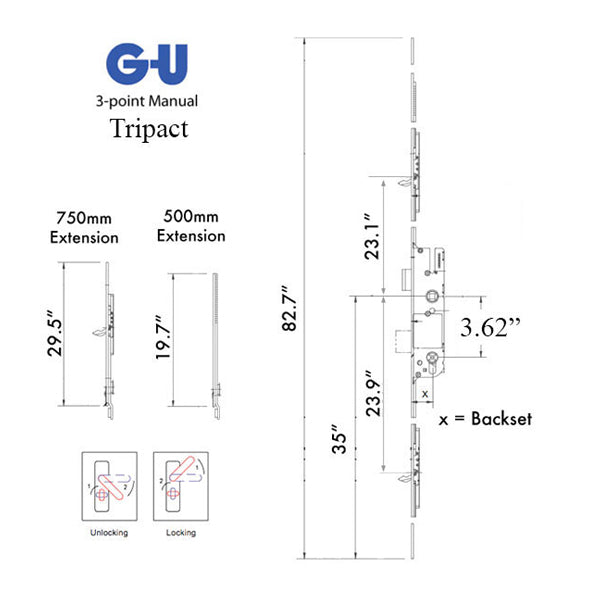

- Top Tongue Position: 23-3/16 inches (589mm) 23.18 up from handle
- Bottom Tongue Position: 23-7/8 inches (607mm) 23.87 down from handle
- Door Height: For use on doors up to 82 inches tall
- Note lock is croppable for shorter doors and can also be used with taller doors with added extensions (not included, listed below)
- G-U part number for Secury-Europa 50/92 PZ ST2 Active 6-33364-02-0-1
Related GU Parts:
- 500 mm Extension without Lock Point - G-16790-05-0-1 (our part 40325)
- 750 mm Extension w Lock Point - 6-33279-05-0-1
The Tripact 3-point locking system features heavy duty tongues for maximum security and protection against warping of the door panels.
Also featured is our 90 degree locking mechanism that incorporates a standard US cylinder offering a variety of Schlage “C” keyway systems.
Key Features:
- 3-point, height adjustable, locking system

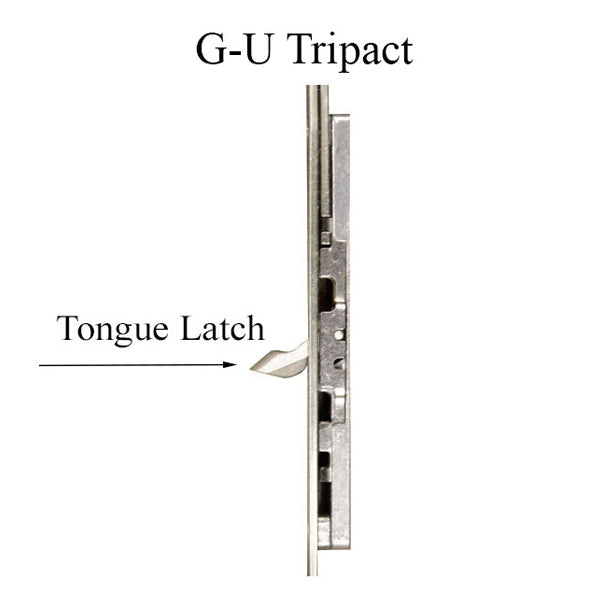

- Two tongue bolts, deadbolt and latch
- Extension with additional 750mm tongue is available for taller doors (6-33279-05-0-1)
- Lever controlled engaging and releasing of tongues, deadbolt and latch
- Locking by US-Cylinder system with a 90 degree turn of key or thumbturn
- Non-handed, latch easily reversible
- Heavy duty mortise construction with reinforced lever return spring system
- Available in standard or black matte finish
- Same hardware groove detail throughout our entire door lock program
Kit Includes:
Main lock body with tongue latches on top and bottom.
For installation screws see 6-U0050-00-0
