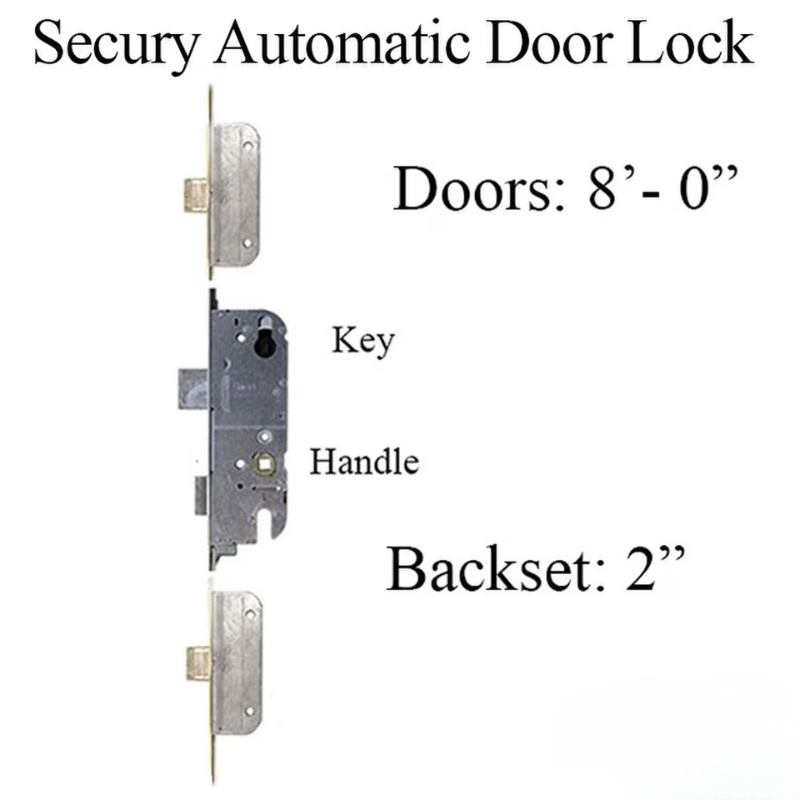

G-U / Ferco SECURY 50/92 Automatic Door Lock 8-0 Door for LEVER Handles - Stainless Steel
SKU: 6-36033-02-R-SS
G-U / Ferco SECURY 3-Point Automatic latching with 1 deadbolt and 2 Latchbolts Used with Lever type handles.
Simply Close the Door!
As soon as the door pulled shut, the Automatic latchbolts instantly throw 20mm and are secured to prevent them being forced back. By turning the key or the knob, it will engage the deadbolt and lock the top and bottom latchbolts to become a 3 dead bolt locking system.
Specifications:
- Backset: 2 inch (50mm)
- Cylinder Position: Key Above Lever
- Cylinder Type: American (uses flat tail piece)
- Faceplate Width: 5/8 inch (16mm)
- Extension End: Radius, Rounded end

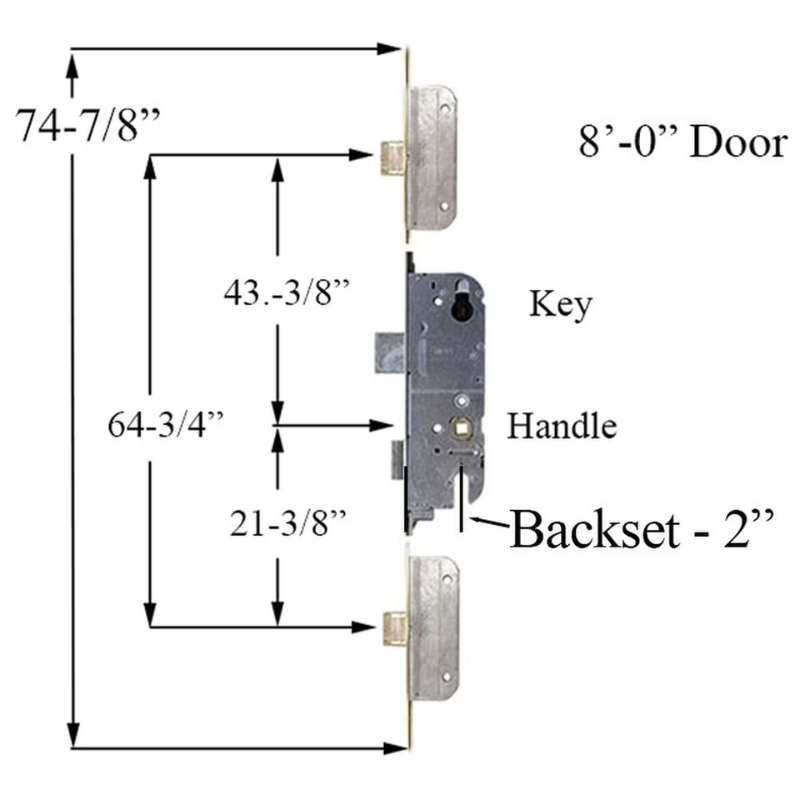

- Overall Length 8-0 Door: 74-27/32 inch (1901mm) 74.84 inch
- Upper Latchbolt: 43-3/8 inch (1102mm) 43.39 inch
- Lower Latchbolt: 21-3/8 inch (543mm) 21.38 inch
- Handle Height: Adjustable
- Deadbolt Throw: 1 inch (24.9mm) 0.984 inch
- Latchbolt Length: 3/4 inch (20mm) 0.787 inch
- Handle to Cylinder PZ: 3-5/8 inch (92mm) 3.62 inch
- Spindle Hub: 5/16 inch (8mm) 0.315 inch Square
- Material: Stainless Steel
- Hardware Trim: Levers only
Additional information :
-3-point, one piece locking system for 6' 8'' and 8' doors
-Heavy duty mortise construction with reinforced lever return spring system
-Locking by US-cylinder with 90 degrees turn of key or thumb-turn
-No lifting of handle to engage locking points

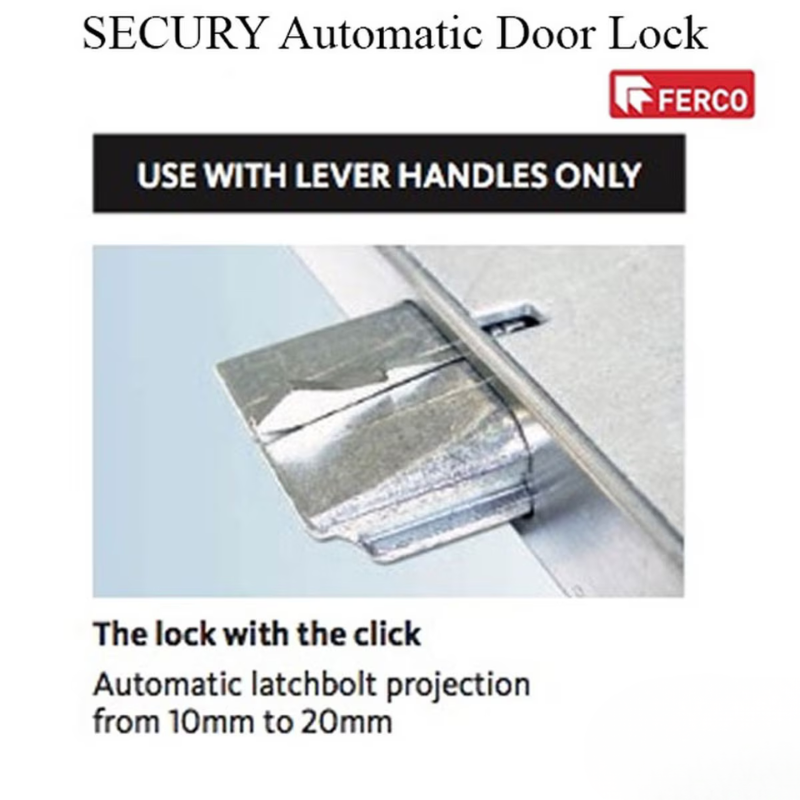

-Top and bottom Automatic latchbolts projection from 10 to 20mm:
- provide security against forced entry
- help prevent air infiltration from gasket
- protect the door panel from warping
-1'' (25mm) throw on deadbolt with baby sitting function

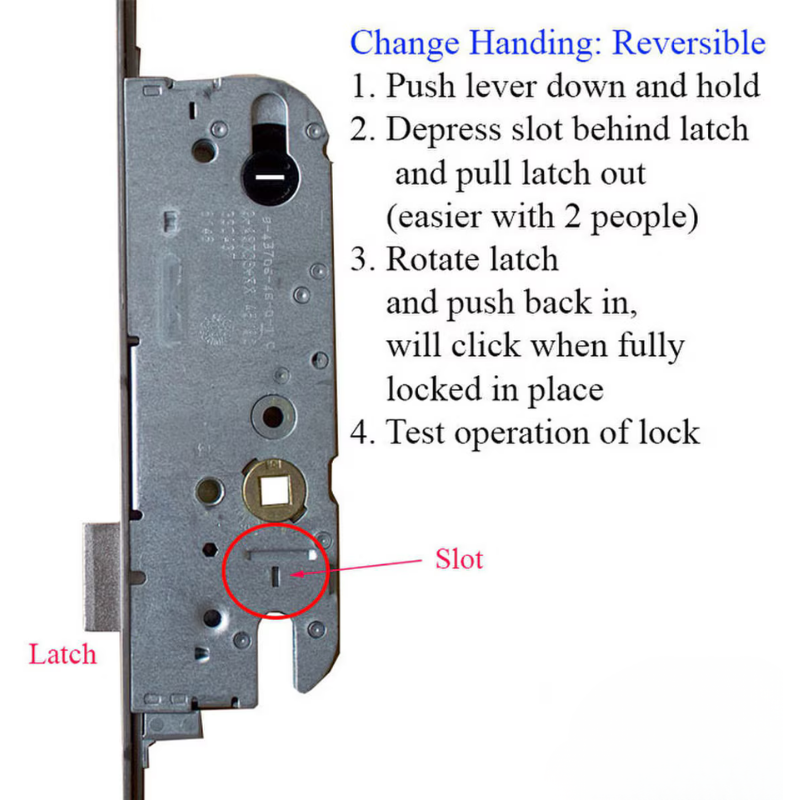

-Non handed, latch easily reversible
-Handle height variable (36'' recommended)
-16mm stainless steel faceplate with radius ends for easy installation and cleaner look
-Same hardware groove detail throughout our entire door lock program (jig, router base and bits available)
-Extension with additional lock point is available for doors taller than 8' (6-33479-04-0-8B)
-To be used with lever handle set (US-cylinder above handle).
