SKU: CRCODE203
Series: CRCODE200 Series, Grade 2

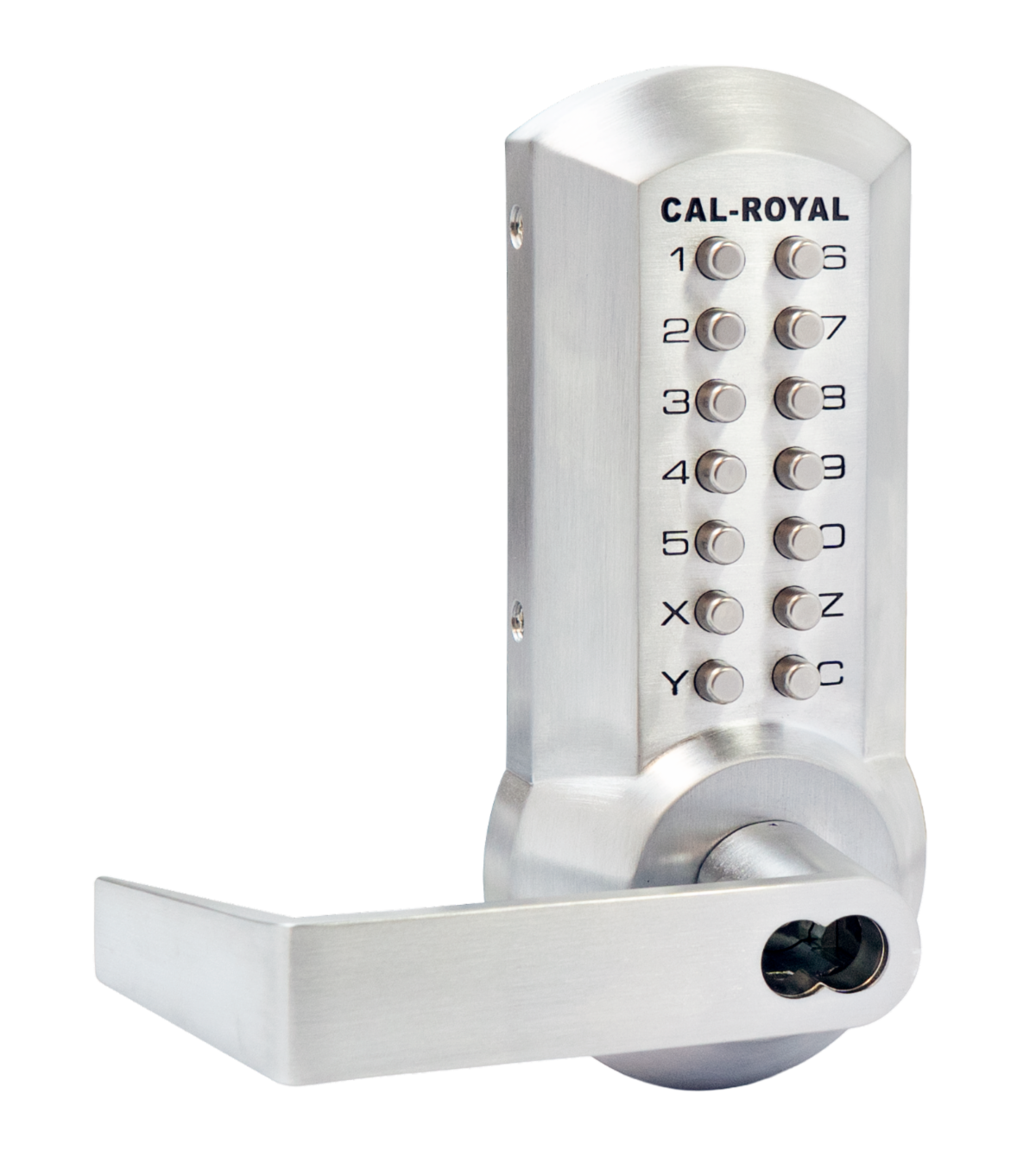

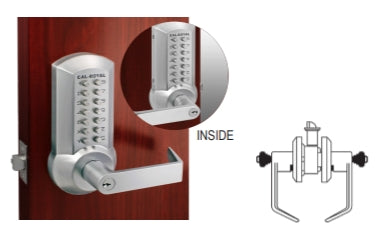

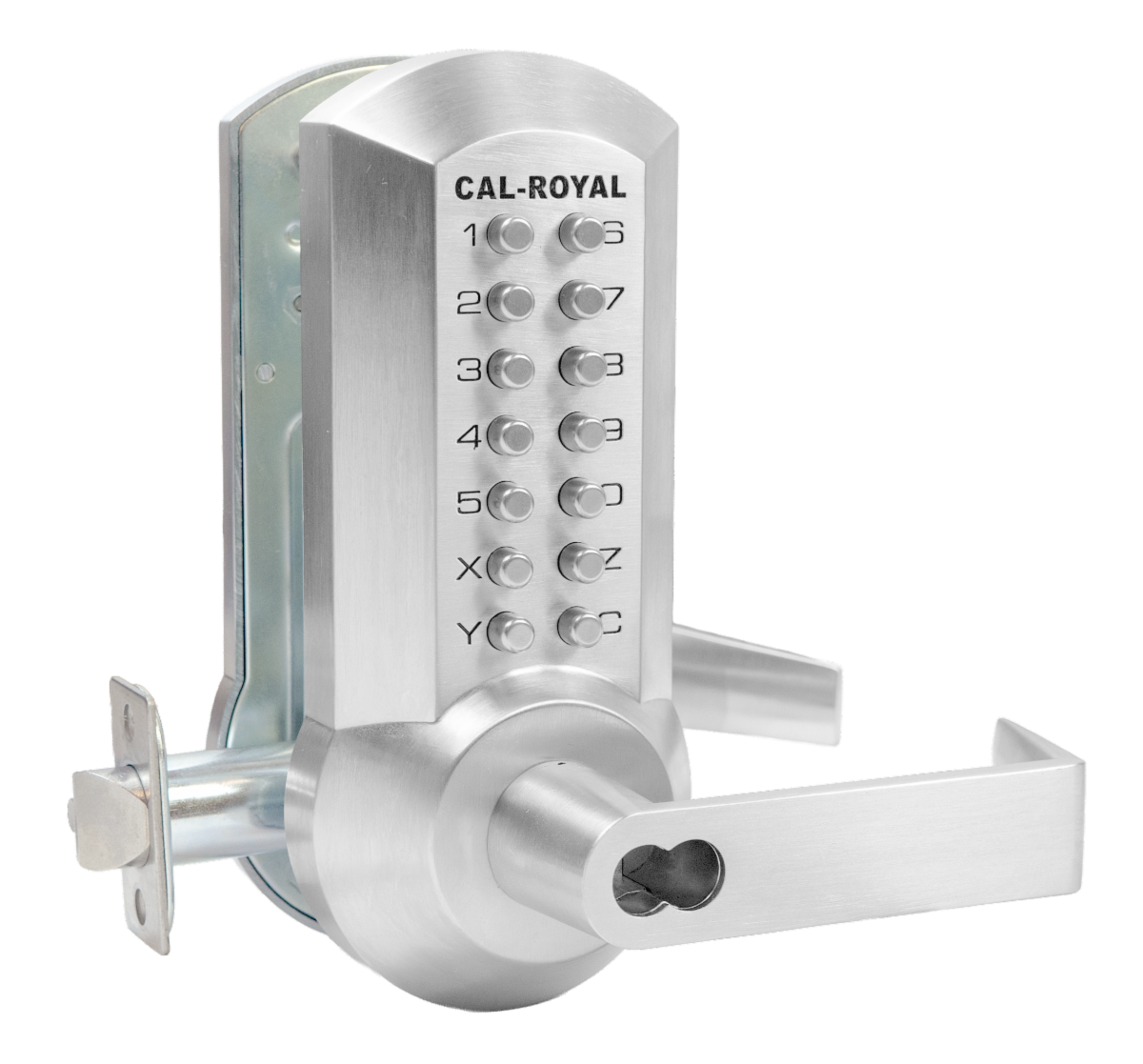

Cal-Royal CRCODE203 Institution Pushbutton Lever Lock
Latch bolt operated by lever from either side by entering a pre-programmed code on the keypad in order to retract the latch upon turning the lever. Both lever always locked, unless one or both sides are set to passage mode. If one side is set to passage, function can be storeroom. If both sides are set to code-free, function becomes passage
GENERAL:Full length 5 1/2" lever handle with 7/8" return. Escutcheon dimension 3 1/2" x 8 1/8". Key removable outside lever for all models for fast re-keying. 2 1/8" diameter bore.
BREAKAWAY LEVER DESIGN:Lever will stay at the 5 o'clock position when forced down without retracting the latch, to prevent breaking of handle and giving the impression of the handle being broken to discourage or scare off vandals.
DOOR RANGES:1 3/8" - 1 3/4"
ANSI STANDARDS:Meets or exceeds ANSI A 156.2, Series 4000 Grade 2 requirements.
LATCH FACEPLATE:Standard 2 1/4" x 1 1/8" for 2 3/4" backset
LATCH OPTIONS:2 3/4" standard, brass with 1/2" throw.
STRIKES:ASA 1 1/4" x 4 7/8" standard
CYLINDER & KEYWAYS:6 pin solid brass "C" keyway standard.
Note:for Non-Fire Application Only
Easy Installation covers 161 PREP (2 1/8" HOLE)
EASY ON-DOOR CODE CHANGE:Code can be changed without removing the lock from the door and using only a "code change" key.
1-12 DIGIT CODE:An entry code can be a combination of 1 to 12 digits long. The digits can be entered in any order. For example, if the chosen 6-digit code is "5283XZ" it can be entered as "ZX3825" or "3X8Z25" or in any other combination of the 6-digit code.
CODE-FREE OPTION (PASSAGE MODE):Once enabled, the lock remains unlocked until disable PASSAGE MODE is initiated.
WEATHER RESISTANT:Can resist above or below normal weather conditions without compromising security.
NON-HANDED:Easily field reversible handing
More than 8000 non-sequential Possible code combinations!
