Cal-Royal A7700 x ESC7705 Panic Rim Exit Device with Escutcheon Storer – Golden Locks Inc .

Cal-Royal A7700 x ESC7705 Panic Rim Exit Device with Escutcheon Storeroom Lever Trim

CAL ROYAL
Rim Exit Device
$536.80
Door Handing
Finish :
Satin Stainless Steel
Black
Length :
Fire-Rated :

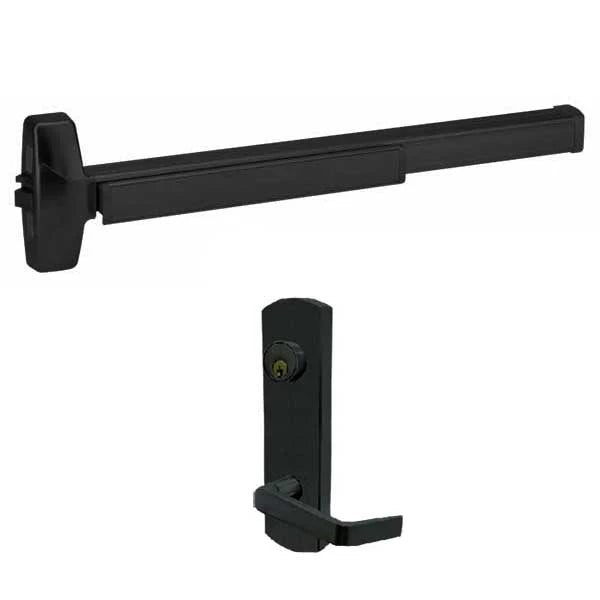

Cal-Royal A7700 & AF7700 ADA Series Grade-1 Rim Exit Device with ESC7705 Escutcheon Storeroom Lever Trim

The 7700 Series rim exit device offers uncompromising security and safety and is used in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.

  • ANSI Function 09 – (Night Latch) Rigid Storeroom, key unlocks lever, lever retracts latch bolt, otherwise always locked
  • For use with single doors or double doors with mullions
  • Non-handed and easily reversible

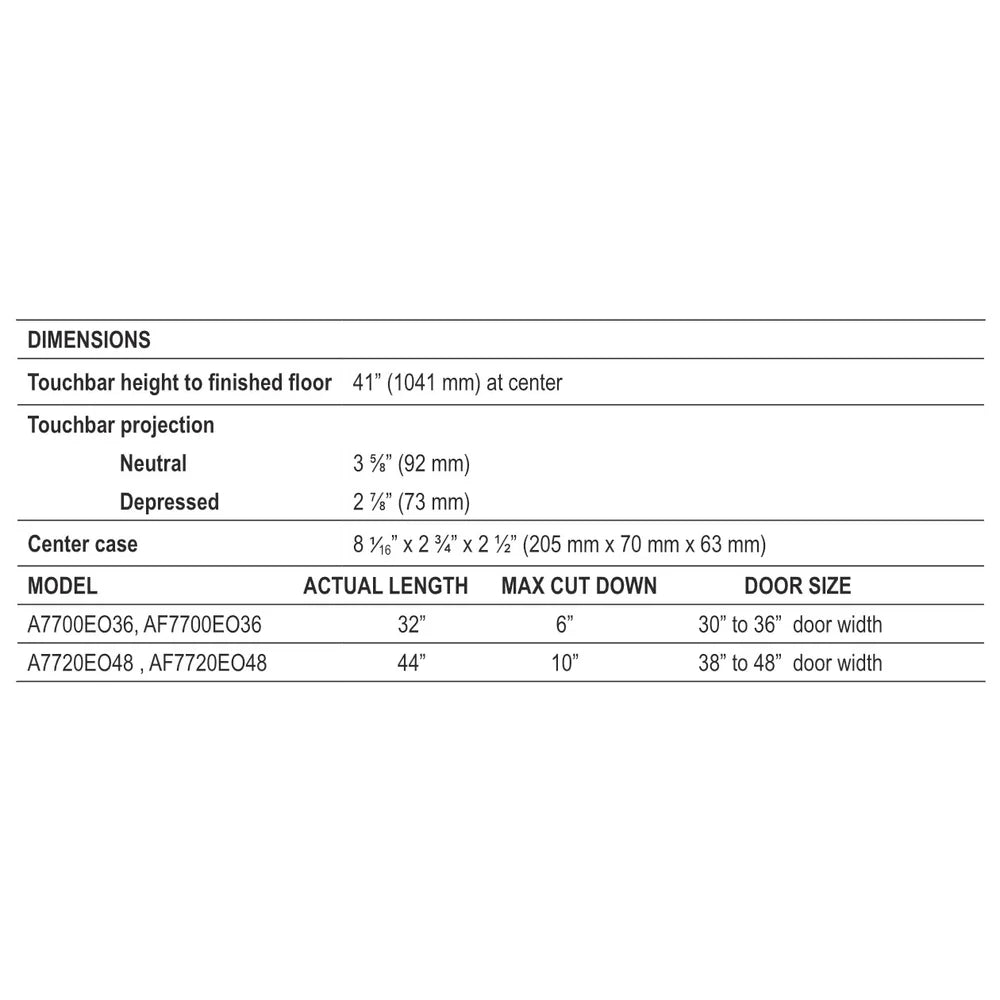

  • A7700EO36 = 32" actual length, for 30" to 36" door widths
  • A7720EO48 = 44" actual length, for 38" to 48" door widths
  • F prefix = Fire exit hardware for all types of 4’ x 8’ single doors and 8’ x 8’ double doors for up to 3-hour fire labeled installations
  • UL Listed for Panic and ULC10C, UBC 7-2-1997 codes
  • Conforms & Meets ADA Regulations.
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force
  • Retrofits Von Duprin 99 & 98 Series using 7700 escutcheon trim

ESC7705 Lever Trim

  • 2-3/4″ width x 10-1/4″ length – Lever length: 4-3/4″
  • Fits and covers 2-1/8″ 161 cutout
  • Rigid, non-clutch mechanism
  • Double heavy-duty spring support to prevent sagging and enhance operation
  • Grade 1, thru-bolted design.
  • Non-handed design – Easily field reversible
  • Hardened steel heavy-duty tailpiece
  • Includes mortise cylinder (Schlage C keyway)

    Brand

    Cal-Royal

    Finishes

    L1 Black, US32D (630) Satin Stainless Steel Device w/ US26D (626) Satin Chrome Lever

    Length

    3'0" (2'6" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

    Trim

    ESC7705

    Cylinder

    Standard 6-pin mortise cylinder included

    Keyway

    Schlage C Keyway

    Usage

    Heavy Duty

    ANSI/BHMA Standard

    ANSI A156.3, Grade 1

    Fire-Rating

    7700EO: Non-Rated - F7700EO: UL Listed 3 Hour Rated

    Dogging Feature

    Hex key dogging standard on non-fired-rated devices

    Latchbolt

    Stainless steel 3/4” throw with anti-pick feature

    Strike

    938 packed standard

    Stile Type

    Wide (Standard)

    Handing

    Non Handed – Completely Reversible

    Warranty

    Limited Lifetime Warranty
