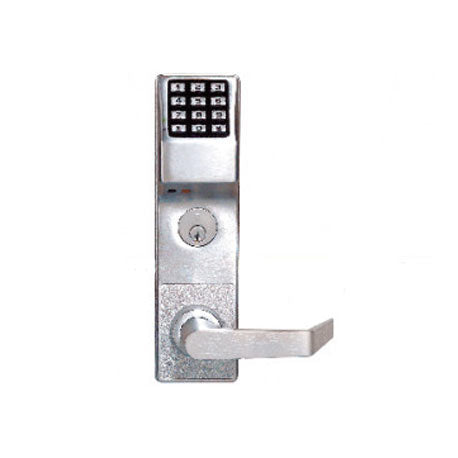

Alarm Lock DL4500 Trilogy Electronic Digital Mortise Lock, Deadbolt,Finish-Satin Chrome
DL4500DBL/26D
DETAILS: ALARM LOCK DL4500 TRILOGY ELECTRONIC DIGITAL MORTISE LOCK, DEADBOLT,FINISH-SATIN CHROME
DL4500 SERIES - Electronic battery operated digital proximity lock. Holds up to 2000 codes, Master,
Management, Supervisor & basic user. 500 event schedule, real time clock & 40,000 event audit trail. Privacy
feature will lock out all users for programmed amount of time. Residency feature-allows exiting without having
to lock the door.
Features
- Similar to the DL3200 electronic door lock features plus:
- 2000 PIN or PIN/Prox user codes; 500 scheduled events; 40,000 audit trail
- Privacy Pushbutton - Push button on inside door to temporarily lock-out keypad codes (programmable option)
- Occupied and multi-status LED indicator, flashes when privacy session is active
- Self-stick instructional signage, supplied (bilingual)
- Keypad or PC programming/reporting
- Right- or left-hand, classroom or deadbolt function models
- 1-3/8" mortise cylinder & ASA strike, matching function, supplied.
- 5AA battery-pak operated; 60,000 cycles, typ.
- 5 Architectural finishes (US3 polished brass, 26 polished chrome, 26D satin chrome, 5 antique brass, 10B duronodic)
- Weatherproof -31? to +151?F (-35? to +66?C)
Specifications
- Door Thickness
- Fits 15/8" to 1 7/8"
- Backset
- 2 3/4" standard
- Strike
- 1 1/4" s 4 718" strike Included
- Handing
- Specify RH or LH when ordering. Lock is reversible in the field
- Power
- 5 AA alkaline batteries (included)
- Keypad
- All metal, 12 button, All functions programmed through keypad
- Door Prep
- Standard ANSI A115 mortise prep, modified by adding additional through-bolt holes
- Compliances
- Steekase lock body meets BHMA specifications for Grade 1 locks UL Listed IOC Positive Pressure Specification. FCC Certified ADA compliant levers
- Functions
- Deadbolt (Unction only. Features stainless steel deadbolt with 1" (2.55cm) projection, latch bolt with 3/4" (1.91cm) projection and deadlocking latch. Deadboft may be projected from key cylinder from outside door or turn-piece from inside door.
- Cylinder
- 1 3/8" (3.5cm) mortise cylinder supplied. Will accept 13/8" to 1 1/2" (3.5 - 3.8em) mortise cylinder.
- Cams
- Supplied with cloverleaf cam. Cams for other manufacturer's cylinder are available. See 'Privacy Mortise Lock accessories' for part numbers and manufactures.
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
AVAILABLE MODEL NUMBERS AND COMBINATIONS
| Model/SKU | Attributes |
|---|---|
| DL4500DBL/26D | Left Hand |
| DL4500DBR/26D | Right Hand |
