Adams Rite 8801EL Narrow Stile Rim Exit Device - Electric Latch Retraction
Adams Rite 8801EL Narrow Stile Rim Exit Device - Electric Latch Retraction - Clear Anodized (628)
Electric Latch Retraction:
The EL option for rim exit devices uses a solenoid mounted in pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device.
Because electrical operation of device is fail-secure, this option can be used on fire-rated as well as life-safety applications. In the event of a power failure, device automatically relocks.
Rim devices with the EL option are available in 12 or 24 VDC, and can be powered with a simple transformer and rectifier or other DC power supply.

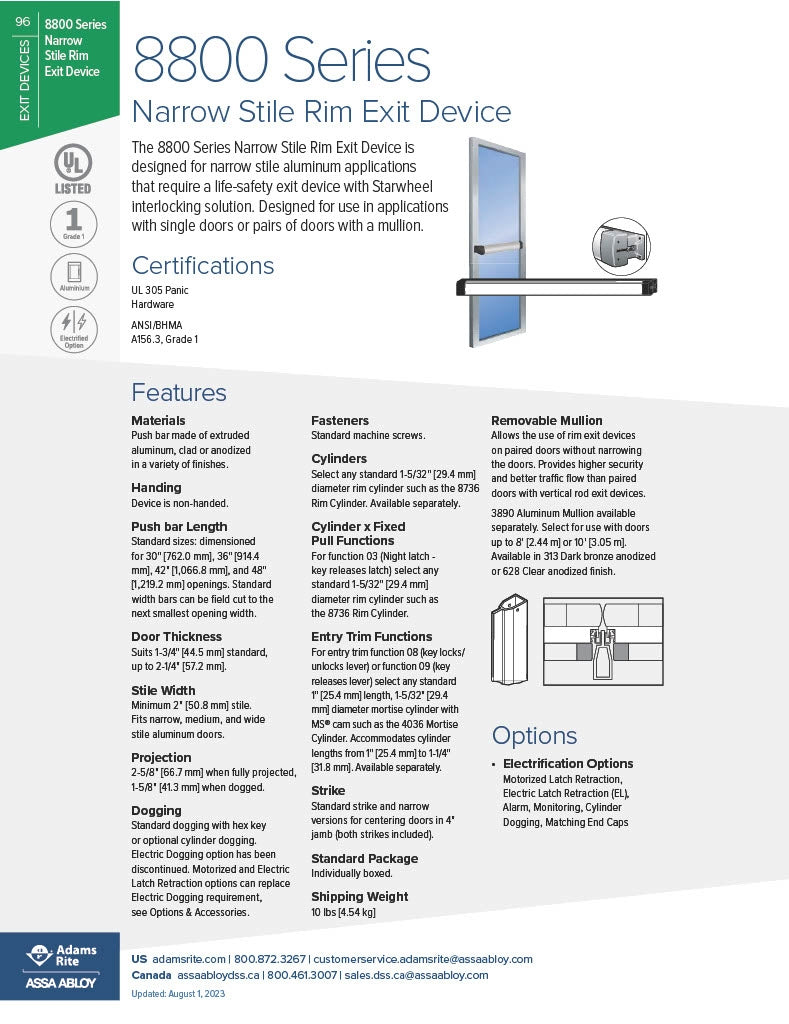

Features and description:
Patented “Starwheel" bolt interlocks door to frame
Strong, durable construction for a high level of security
Easy to install
Unobtrusive design for clean sight lines
Materials: Pushbar made of extruded aluminum
Handing: Device is non-handed. Lever Entry Trim is field reversible.
Pushbar Length: dimensioned for 30", 36" and 42" openings. Standard width bars can be field cut to the next smallest opening width.
Door Thickness: Suits 1-3/4" standard, up to 2-1/4".
Stile Width: Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors.
Projection: 2-5/8" when fully projected, 1-5/8"when dogged.
Fasteners: Standard self-tapping screws.
Cylinder x Fixed Pull: (Function 03): Accepts any standard rim cylinder.(Not Included)
3080 Entry Trim (Functions 08, 09): Accepts any standard diameter mortise cylinder with MS® cam. Accommodates cylinder lengths from 1" to 1-1/4". (Available separately).
Warranty: Five year limited.

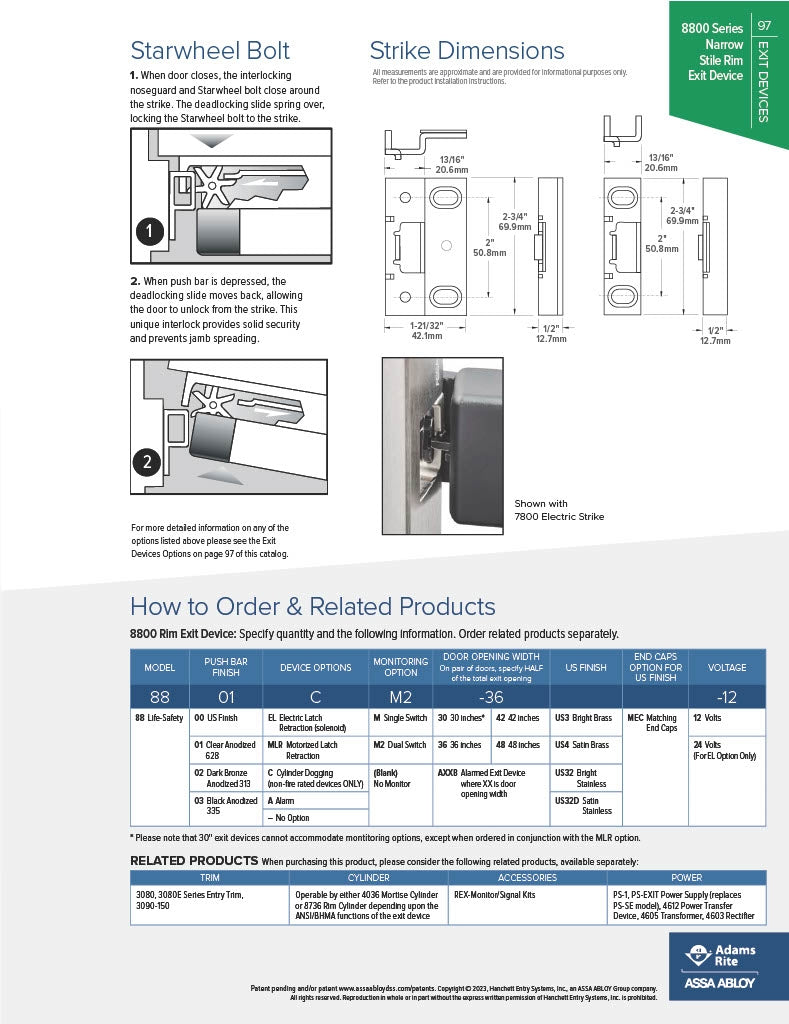

Starwheel Bolt: 1. When door closes, the interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide spring over, locking the starwheel bolt to the strike.
2. When pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading.
Strike: Made of hardened steel. Standard strike and narrow versions for centering doors in 4" jamb. (Both strikes are included).
Specifications:
UL 305 Panic Hardware
ANSI/BHMA A156.3 Grade 1
California State Fire Marshall
New York City MEA*
Model: 8801EL-36-12, 8801EL-48-12, 8801EL-42-12, 8801EL-36-24, 8801EL-48-24, 8801EL-42-24
