item # TL3500VB90, TL3500SS90

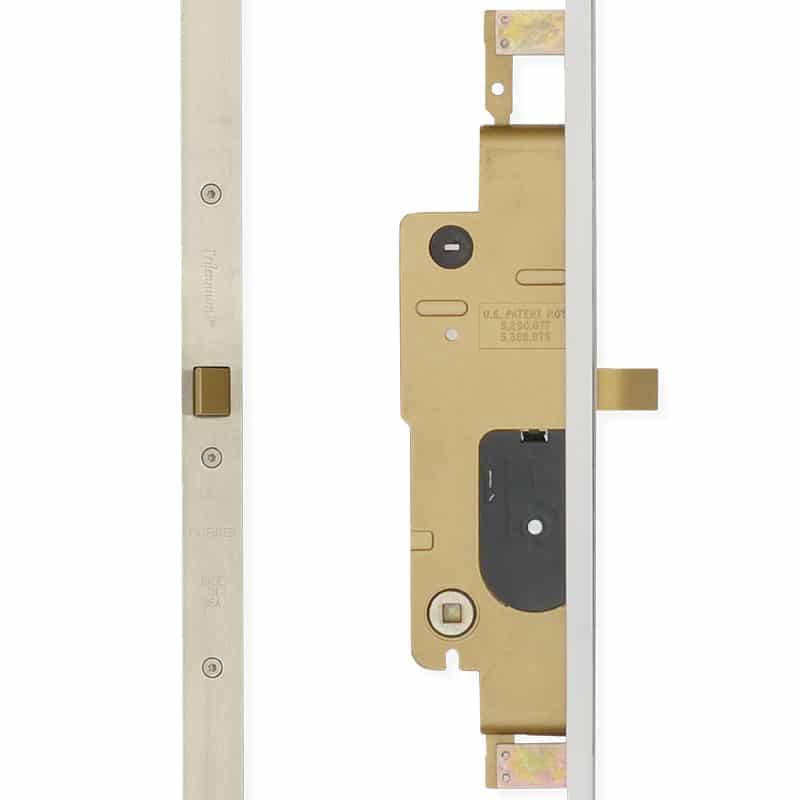

Trilennium® 3500 Series 5-Point Multi-Point Lock!
The Trilennium® 3500 Multi-Point Locking System provides you with unmatched security and peace of mind with your double door system. This locking system provides five total locking points including three deadbolts and two additional locking points at the frame header and sill. Designed for active door panels, the multi-point locking system runs the entire length of the door stile delivering maximum strength and security within the Trilennium® Lock Series. Once all Trilennium® bolts are engaged, you have a deadbolt system that cannot be compromised.
Lock Measurements
-
Backset: 2-3/8 (60 mm)
Door Height: For a 9 Foot Door
Faceplate Width: 1 inch (25.4 mm)
Faceplate Length: 75-3/8 inch (1921 mm) Radius ends
Faceplate Color: 3 Finishes; Polished Brass, Victorian Bronze (Bronze), Stainless Steel
Deadbolt Throw: 15/16 inch
Top Latching Bolt: 43-5/32 inch (measured from center bolt)
Bottom Latching Bolt: 24-1/4 inch (measured from center bolt)
Spindle Diameter: 1/4 inch ( 7 mm)
Cylinder Type: American with Flat tail piece, Not included
Country of Origin: Made in USA
Priced and sold each, Lock assembly only, no additional hardware
Note : This custom locking system provides five total locking points including three deadbolts and two additional locking points at the frame header and sill. This custom locking system works perfect for French/Double Doors and is not intended for a single door.
*Strike Kits are not included – For new installation, they must be purchased separately
