item # 20200S1G

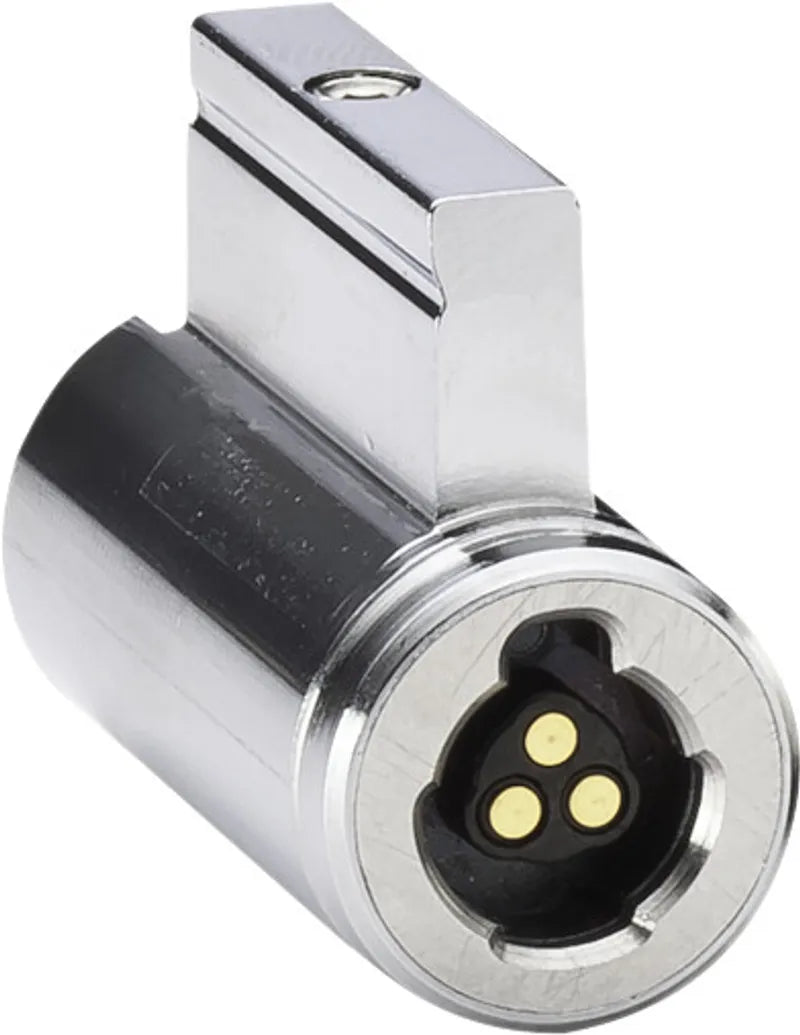

The Medeco XT Key in Knob/Lever electronic cylinder is a direct replacement for mechanical KIK/KIL cylinders and is ideal for loss and liability management. The cylinder requires no wiring to the door and is powered by the Medeco XT rechargeable key (sold separately). The cylinder is designed for interior and exterior use with an operating temperature rating of -40 degress Fahrenheit to 140 degrees Fahrenheit. Flexible authorization, auditing of use, and quick retrofit to existing hardware are all in one convenient package.

Medeco XT is a complete electronic locking system providing Controlled Access, Accountability, Physical Security, and System Management. More than just a way to protect your property, equipment, and assets, Medeco XT is also a business tool that can lead to a substantial return on investment.

Specifications :

Audit and Access Scheduling: Yes

Core Type: Fixed

Cylinder Format: Conventional

Cylinder Option: Single

Cylinder Type: Component

Device Type: Electronic

Key Retaining: Non-Key Retaining

Key System: Intelligent

Maximum Length: 3 369/500"

Minimum Length: 1 11/500"

Number of Keys: 1

Solutions: Upgrade or Retrofit

UL Listed: No

ULC Listed: No

Warranty: 2-year limited warranty

Weather Resistance: Indoor/Outdoor

Width: 1 147/1000"

Features :

• Medeco XT is a robust Intelligent Key system with access control features that retrofits mechanical cylinders and is managed by state-of-the-art software.
• The XT key provides all power to the cylinder, eliminating the need for any hard wiring or power supply.
• XT keys are electronically programmed to open only specific locks during a designated schedule, offering access control and monitoring. Grant after-hours and temporary access with electronic scheduling.
• Audit information recorded in both the lock and key shows a time-and-date stamped record of every event, including authorized accesses and unauthorized attempts. Cylinder audit shows list of keys that were used to attempt an opening, but were denied authorization.
• Remote programming lets you respond immediately to personnel changes, even if keys are not returned. Lost or stolen keys can be turned off in the system to reduce risk.
• Lost or stolen keys can be blacklisted so they will not function.
• Stand-alone or web-based software offers flexible programming, scheduled access and full audit reports.
• Keys store up to 14,000 audit events. Lock/cylinder stores up to 2,000 audit events.
• Bluetooth-enabled keys available to allow programming using any mobile device via Android or iOS app.
• Cylinder is designed for interior and exterior use with an operating temperature rating of -40 degrees Fahrenheit to 140 degrees Fahrenheit.
• Variety of retrofit cylinders for knob and lever type cylindrical locksets, padlocks, and bored type auxiliary deadlatches and deadlocks.
• Available in popular manufacturer retrofit packages containing one cylinder and a variety of different tailpieces.
• Constructed of solid machined brass components, for extreme durability.
• Can be keyed alike, keyed different, or master keyed.
• Largest retrofit capability in the industry. Medeco is able to retrofit virtually every manufacturers' key in knob/key in lever cylinders.

Benefits :

-Uses Existing Hardware: Medeco XT is a quick retrofit for existing mechanical cylinders. Simply remove the existing mechanical cylinder and install the XT cylinder. The key provides all power to the cylinder, eliminating the need for wiring or power supply.

-Monitor access to sensitive information: Identify which users have access to sensitive information, such as employee documents, healthcare records or student transcripts. Audit records in both the lock and the key easily identify which employees have accessed what areas for greater accountability.

-Physical Security: XT adds a variety of intelligent features without compromising physical security. Attack-resistant design and tamper-proof features on cylinders provide strong protection against forced entry.

-Efficient System Management: Flexible programming, scheduled access, and full audit reports are offered with the convenience of stand-alone or web-based software.

-Visual Audit Data Dashboard: The easy to read graphic display provides insight into system configuration, user activity and audit events.

-Program keys from any location: Receive updates to access and scheduling via Bluetooth enabled keys with iOS and Android App.

-Simplified Key Control: Assign employees a single key that gives them access to all the locks they need to open.

-Rechargeable Key: no need to worry about replacing batteries.

-Save Money: XT can lead to a substantial return on investment by providing electronic access control at a lower cost, and eliminating recurring rekeying or lock replacement costs.

-Solutions for Every Application: XT cylinders are available to fit nearly any application or hardware type for enhanced security and accountability.

-Save Money: Retrofits into existing hardware.

-Reduce Inventory: Packages for popular manufacturers contain one cylinder and a variety of different tailpieces, providing a greater retrofit capability.

Certifications :

-IP67 Rated Enclosure
