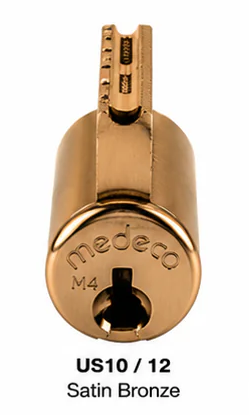

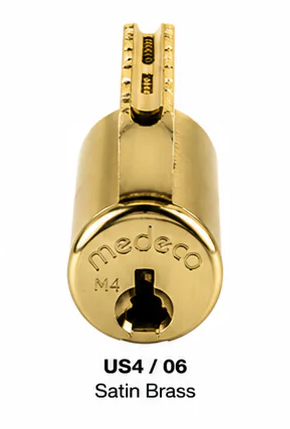

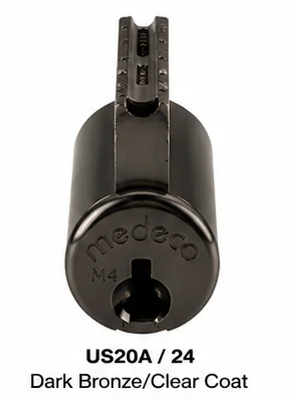

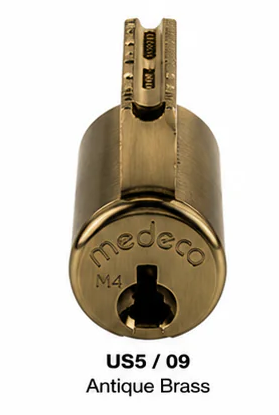

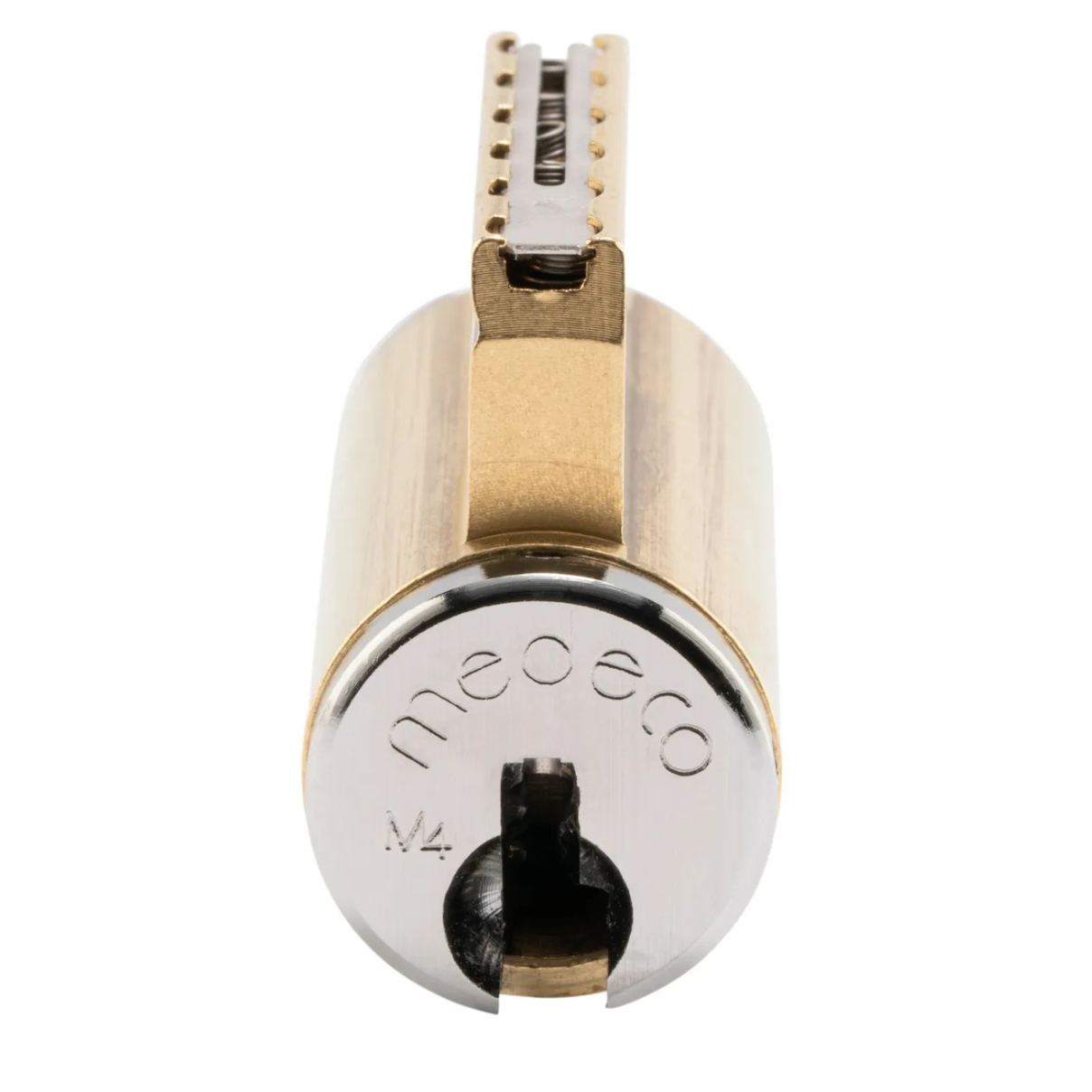

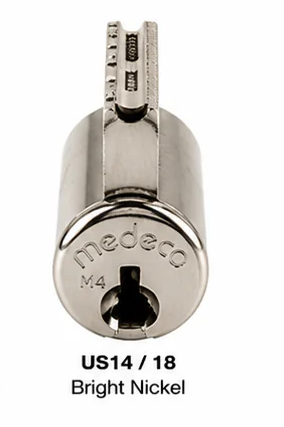

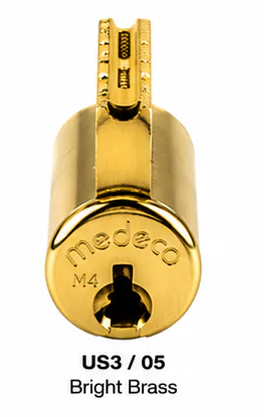

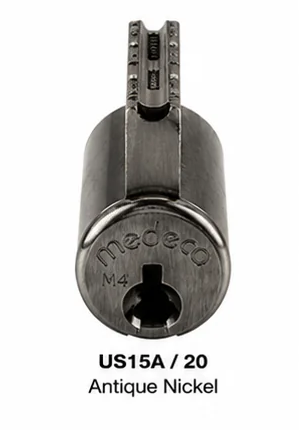

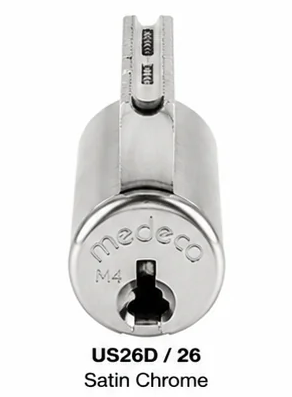

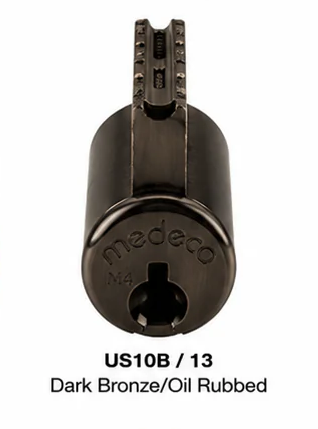

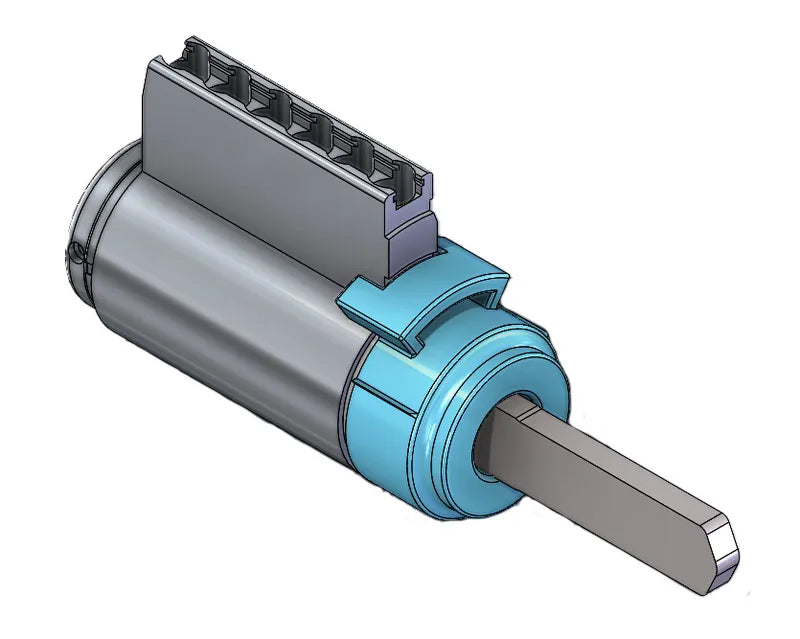

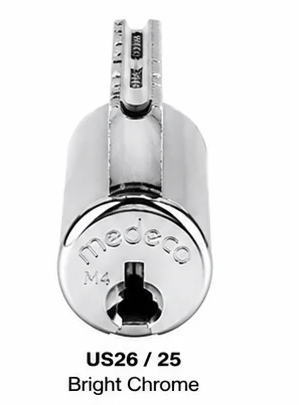

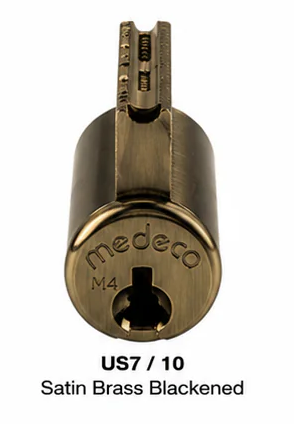

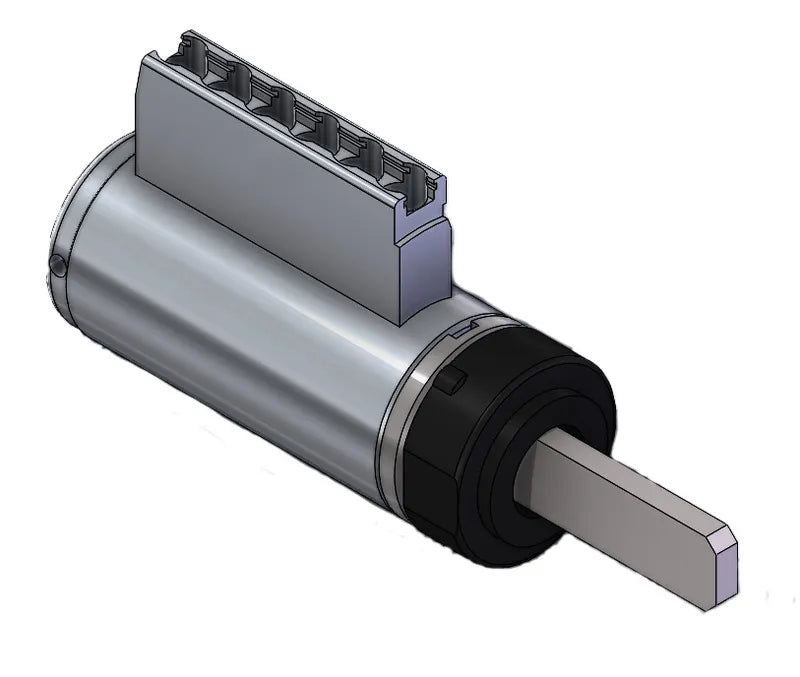

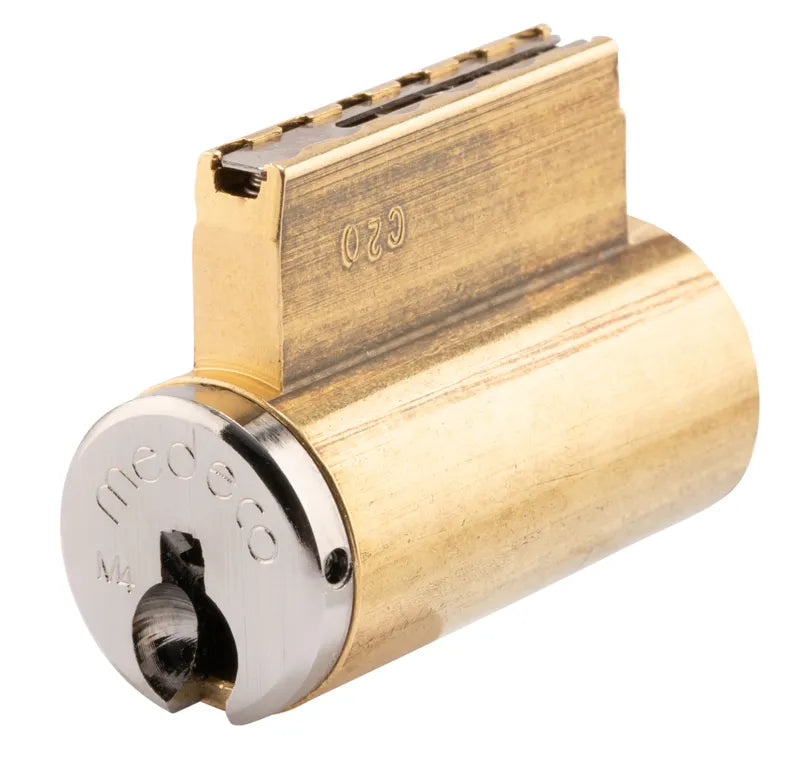

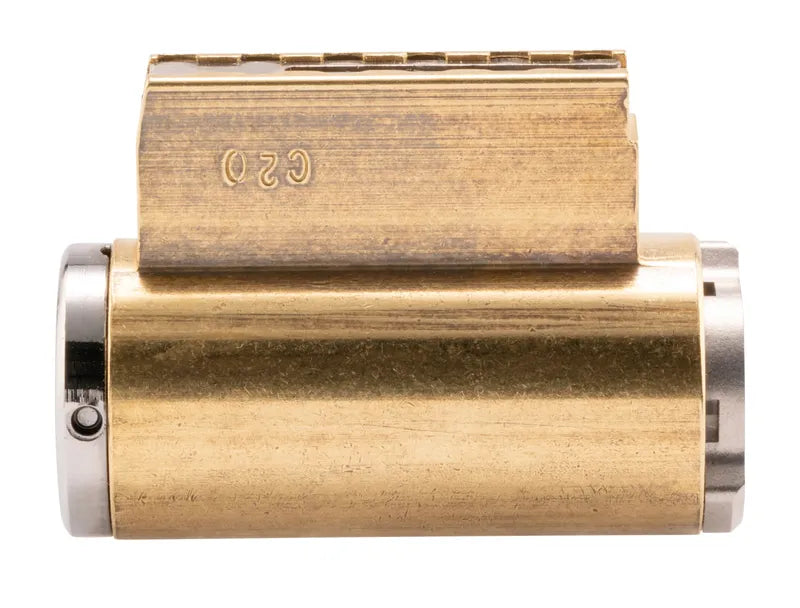

MEDECO M4 Key in knob cylinder for schlage 43 keyway - 20200S1H
item # 20200S1H
Key-in-Knob/Lever Cylinders
Specifications
-
Core Type: Fixed
-
Cylinder Format: Conventional
-
Cylinder Option: Single
-
Cylinder Pins: 5 pin, 6 pin
-
Cylinder Type: Component
-
Device Type: Mechanical
-
Grade: Grade 1
-
Key Retaining: Non-Key Retaining
-
Key System: Mechanical
-
Maximum Length: 3 369/500"
-
Minimum Length: 1 11/500"
-
Number of Keys: 2
-
Patented: Yes
-
Patent End Date: December 31, 2040
-
Security Type: High Security [UL 437], Patented
-
Solutions: Upgrade or Retrofit
-
UL Listed: Yes
-
ULC Listed: Yes
-
USA Patent Number: 11624206
-
Warranty: 2-year limited warranty
-
Weather Resistance: Indoor/Outdoor
Features :
- Medeco 4 cylinders meet or exceed ANSI/BHMA A156.30 and 156.5 Grade 1 high security criteria, which includes testing for strength, durability, and resistance to surreptitious entry along with patented key control.

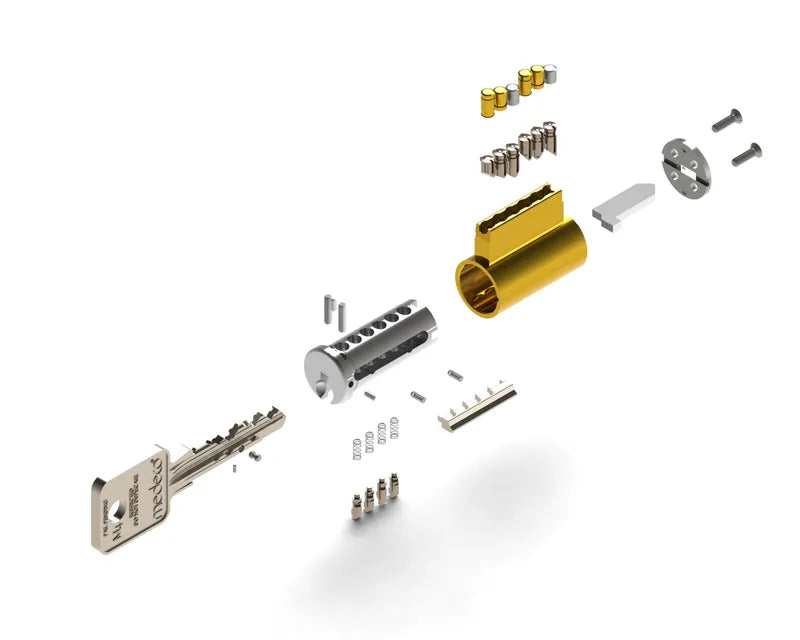

- Medeco 4's cylinder design includes 4 Side Pins made up of 3 Finger Pins and 1 Lift Pin. The Lift Pin is activated by contact with the movable element in the key, providing a high level of pick resistance.
- Patented key control provides protection against the unauthorized duplication of keys.
- UL 437 listing provides assurance that cylinders meet universal standards for endurance, drill and pick resistance, and resistance against other types of forced attack.
- Patented movable element in the key deters unauthorized 3D printed copies of keys or blanks.
- Angled cuts on the keys, along with rotating pins, provide added dimensions that dramatically increase key combinations. Secondary side pin bitings provide even greater combinations, making very large systems possible.
- Cylinder side pins and a lift pin which engage the sidebar prevent the key from turning until the elements are aligned in the correct position, protecting against bumping and picking.
- If you are able to cut Biaxial or Medeco 3 keys, you are able to cut Medeco 4 keys on the same equipment.
- Finger Pins work with Secondary Side cuts on the key to provide increased security and greater potential combinations.
- Variety of retrofit cylinders for knob and lever type cylindrical locksets, padlocks, and bored type auxiliary deadlatches and deadlocks.
- Available in popular manufacturer retrofit packages containing one cylinder and a variety of different tailpieces.

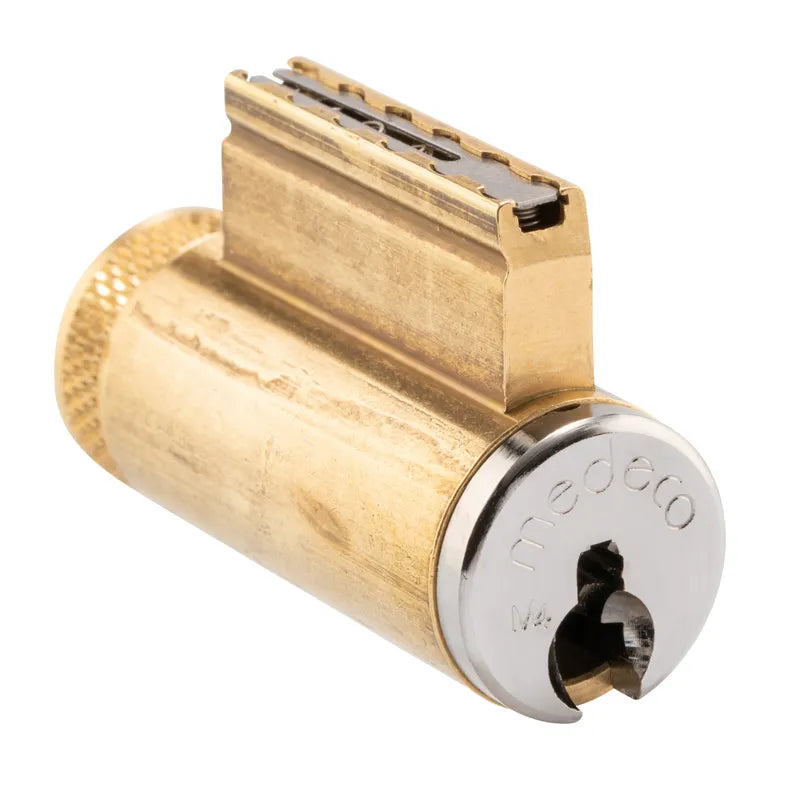

- Constructed of solid machined brass components, for extreme durability.
- Can be keyed alike, keyed different, or master keyed.
- Largest retrofit capability in the industry. Medeco is able to retrofit virtually every manufacturers' key in knob/key in lever cylinders.
Benefits
-
Maximum physical protection from attacks
Drill Protection: Offers maximum protection against drilling attack with solid-brass construction and strategically placed steel inserts.
Large retrofit capability: Available in retrofit cylinder formats to fit most popular manufacturer door hardware.
Restricted Keys: Utility patented keys are only available through authorized dealers and require a special key cutting machine and access to Medeco specific blanks.
System Flexibility: Medeco 4 integrates with M4 BiLevel for custom security level at each opening.
Masterkeying Capabilities: Secondary side pin bitings provide expanded masterkeying capabilities. Very large systems are possible.
Save Money: Retrofits into existing hardware.
Reduce Inventory: Packages for popular manufacturers contain one cylinder and a variety of different tailpieces, providing a greater retrofit capability.
