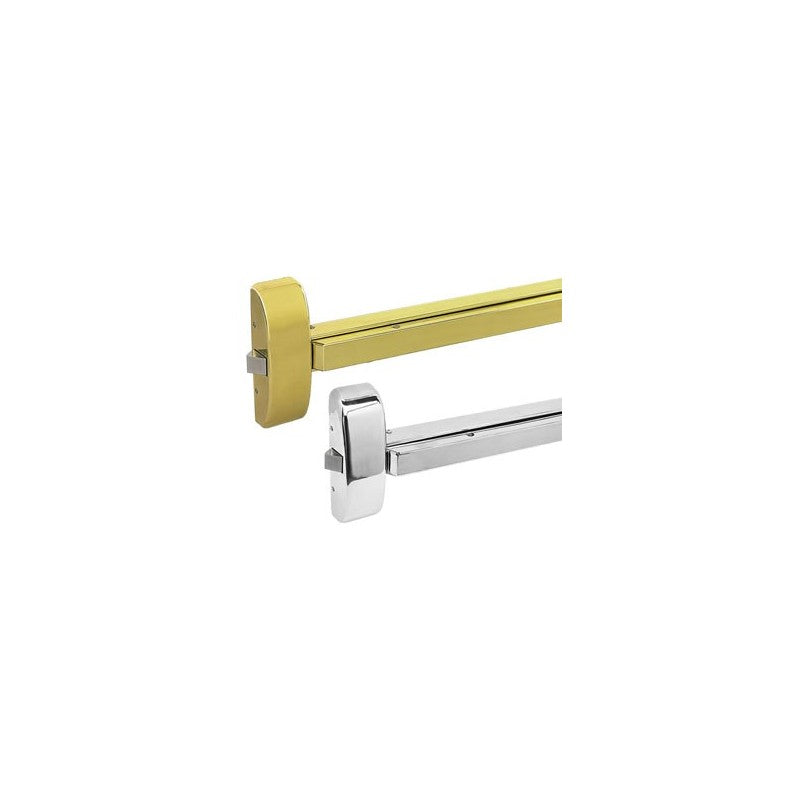

A9800EO
MUST ORDER TRIM SEPARATELY
Suggested Architect's Specifications
- All exit devices shall be of touch bar design with smooth operation and be operative over ⅔ of the door's clear opening width
- All exit devices must be listed under "Panic Hardware" in the Accident Equipment List of Underwriters' Laboratories, Inc. Where labeled doors are used as exits, they must be equipped with labeled Fire Exit Hardware and UL10C, UBC 7-2-1997 codes.
- All springs shall be of stainless steel throughout.
- All exit devices shall be of chassis mounted unit construction.
- All exit devices shall be ANSI A156.3, Grade 1.
Features & Construction
- For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.
- ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs.
- Rail assemblies and end caps are brass, bronze or stainless steel and rail travels in direction of the door swing.
- Trims are thru bolted for additional security.
- Conforms & Meets ADA Regulations.
- UL Listed for Panic and ULC10C, UBC 7-2-1997 codes.
- UL Listed for Fire Exit Hardware. 3 hours.
- (A) label rating on pairs of doors up to 8'0" × 8'0" swinging in same or opposite directions.
- Uncompromising security and safety in single and double fire exit doors.
- Chassis mounted unit construction. Rim and vertical rod devices are nonhanded and easily reversible.
- Available in many different functions. Lever and escutcheon trims are Grade 1 construction with clutch on rose trims. Escutcheon trims are rigid and covers 161 cut out.
Alarm Exit Hardware
Features
- Alarm unit has an internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and breached.
- The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off.
- The key switch to turn the alarm off is a standard 1¼" cylinder with "C" keyway. The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal.
- Alarmed units are supplied with a switch that monitors push rail only.
- Unit includes "Emergency Exit Only. Alarm will sound." decal for application on door or unit.
Finishes
| CAL-ROYAL | DESCRIPTION | BHMA | US FINISH | MATERIAL |
|---|---|---|---|---|
| P | Primecoat | 600 | USP | Steel |
| 3 | Polished Brass, Clear Powder Coat | 605 | US3 | Brass |
| 4 | Satin Brass, Clear Powder Coat | 606 | US4 | Brass |
| 9 | Polished Bright Bronze | 611 | US9 | Bronze |
| 10 | Satin Bronze Clear Powder Coat | 612 | US10 | Bronze |
| 10B | Oil Rubbed Bronze | 613 | US10B | Bronze |
| 26 | Polished Bright Chrome | 625 | US26 | Brass |
| 26D | Satin Chrome | 626 | US26D | Brass |
| 32 | Polished Bright Stainless | 628 | US32 | Stainless Steel |
| 32D | Satin Stainless | 630 | US32D |
Stainless Steel |
Comparison Chart
| RIM EXIT DEVICE CONVERSIONS | RIM | VERTICAL ROD | RIM | VERTICAL ROD |
|---|---|---|---|---|
| ARROW | S1200 | S1100 | S3800 | S3700 |
| CAL-ROYAL | 2200 | 2260 | 9800 | 9860 |
| CORBIN/RUSSWIN | ED8200 | ED8400 | ED5400 | ED4750 |
| DETEX | V4000 | -- | 10 | 20 |
| DORMA | 8300 | 8400 | 9300 | 9400 |
| PRECISION | 5100 | 5200 | 2100 | 2200 |
| SARGENT | 2828 | 2727 | 8800 | 8700 |
| VON DUPRIN | 22 | 2227 | 98 | 9827 |
| YALE | 2100 | 2110 | 7100 | 7110 |
| RIM EXIT DEVICE CONVERSIONS | RIM | VERTICAL ROD | RIM | VERTICAL ROD |
|---|---|---|---|---|
| ARROW | -- | -- | 1800 | -- |
| CAL-ROYAL | 7700 | 7760 | 4400 | -- |
| CORBIN/RUSSWIN | -- | -- | ED6000 | -- |
| DETEX | -- | -- | -- | -- |
| DORMA | -- | -- | -- | -- |
| PRECISION | -- | -- | 100 | 200 |
| SARGENT | -- | -- | 9898 | -- |
| VON DUPRIN | 99 | 9927 | -- | -- |
| YALE | -- | -- | 1500 | 1510 |
9800 EXIT DEVICE TRIM OPTIONS:
