Cal-Royal
|
Corbin Russwin
|
Dorma
|
Dor-O-Matic
|
Global
|
Hager
|
Lcn
|
Norton
|
Pdq
|
Parker
|
Sargent
|
Taylor
|
Yale
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 900 FULL COVER | DC3200 | 8600FC | SC80FC | TC600 | 5200 | 1460FC | 8501 | 5100/5500 | --- | 1431 | 1900 | 3501 |
| CR441 | DC3000/DC6200 | 8900 | SC70 | TC4300 | 5100 | 4041 | 9500 | 7100 | 441BC | 281/350 | --- | 4400 |
| CR801S SLIM COVER | DC3200 X M76 | 8600 | SC80 | TC500 | 5200SLC | 1460-72 | 8301 | --- | --- | 1430 | --- | 3301 |
| CR801 FULL COVER | DC3200 | 8600FC | SC80FC | TC400 | 5200FC | 1460FC | 8501 | 5300 | --- | 1431 | --- | 3501 |
| 300 | --- | 640/7300/7400 | --- | --- | 5300 | 1070/1370 | 1600 | 3100 | 900 | 1130 | --- | 50 |
| 500 | --- | 640/7300/7400 | --- | --- | 5300 | 1070/1370 | 1600 | --- | 900 | 1130 | --- | 50 |
| 700 | 4600 | 640 | --- | TC2200 | 5400 | --- | 9300 | --- | 500 | --- | 600 | 2300 |
| 400 | 4600 | 640 | --- | TC300 | 5400 | --- | 9300 | --- | 500 | --- | 500 | 2300 |

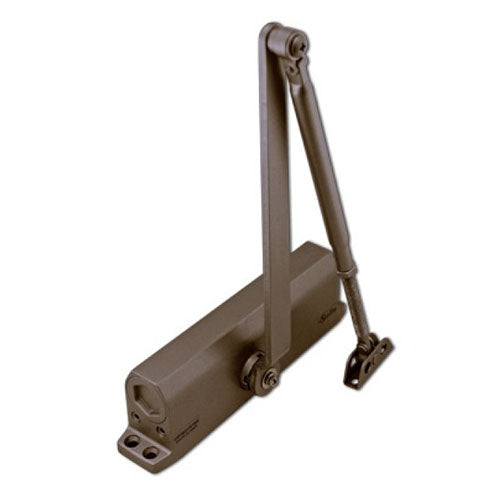

Cal-Royal 500PBF 500 Series Grade 1 ADA / Barrier Free Door Close
DETAILS: CAL-ROYAL 500PBF 500 SERIES GRADE 1 ADA / BARRIER FREE DOOR CLOSE
- Meets and Exceeds ANSI Standard 156.4 Grade 1
- Universal Hole Pattern Offering Versatility and Precision Engineering for New and Retrofit Market
- Hydraulic Door Closer with Standard Back-Check
- Optional Slim Plastic Cover and Full 32D Cover
- Adjustable Multi Size Commercial Door Closer Sizes 1 thru 5 meeting Barrier Free Applications
Features
- Factory Tested to Meet or Exceed ANSI Standard 156.4 Grade 1
- 500PBF: Non-Sized, Fully Adjustable 1 thru 5, (Barrier Free ADA) Interior Doors. For 30-260 lbs Door Weight
- Hydraulic Door Closer with Standard Adjustable Back-Check Valve
- Optional Slim Plastic Cover (2" W × 3" H × 10-5/8" L), PART# 500COV
- Optional Stainless Steel Full Cover, PART# 500COV 32D
- Universal Mounting - Standard Size #4 Mounting Holes ( 9 1/16")
- Finishes Available: Alum and Dark Bronze (Duro)
- Dual Valve, Closing and Latching Speed Controlled by Two Separate Regulating Valves
Specifications
- Length of Closer Body
- 9 3/4"
- Horizontal Mounting Holes
- 9 1/16"
- Vertical Mounting Holes
- 3/4"
- Height of Closer Body
- 1 3/4"
- Projection from Door
- 2 7/8"
Applications
- 500 Series closers fulfill all requirements for ADA for interior and exterior doors. Complies with building and barrier free codes
- Ideal for new construction and renovations, including:
- Office and Retail
- Hotels
- Commercial and Industrial
- Health Care
- Religious
CAL-ROYAL DOOR CLOSERS CROSS REFERENCES CHART
CAL-ROYAL LEED STATEMENT CHART
| POST-CONSUMER RECYCLED CONTENT | PRE-CONSUMER RECYCLED CONTENT | TOTAL LEED RECYCLED CONTENT PERCENTAGE | |
|---|---|---|---|
| ALUMINUM DOOR CLOSERS | |||
| CR801S, CR801, N900PBF, N900PBFDA, CR441SERIES, 300 SERIES, 700 SERIES, S-430P | 48% | 0% | 48% |
| EXIT DEVICES | |||
| EXIT DEVICES | 61% | 0% | 61% |
| TRIMS | |||
| 8000L Series | 16.7% | 24.7% | 29.1% |
| 8000K Series | 28.7% | ||
| LOCKSETS | |||
| NM SERIES | |||
| Rose & Lever in Brass | 10% | 0% | 10% |
| Escutcheon & Lever in Brass | 5% | 0% | 5% |
| Rose & Lever in Stainless Steel | 0% | 0% | 0% |
| Escutcheon & Lever in Stainless Steel | 0% | 0% | 0% |
| SL Series | 12.52% | 4.5% | 17.02% |
| XP Series | 11.4% | 3.5% | 14.9% |
| SG Series | 11.96% | 4.0% | 15.96% |
| ULT360 Series | 25% | 16% | 28% |
| ULT362 Series | 28% | 15% | 29% |
| BA Series | 13% | 17% | 23% |
| Genesys Series | 66% | 0% | 66% |
| Omega Series | 66% | 0% | 66% |
| DOOR HARDWARE | |||
| AUTOFLM-1 | 0% | 5% | 5% |
| AUTOFLW-22 | 0% | 8% | 8% |
DOOR CLOSER ARM AND MOUNTING REFERENCE
| MODEL | ARM | MOUNTING | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HOLD OPEN | REGULAR | PARALLEL | SUPER RIGID | TRACK | TRACK (HOLD-OPEN) | REGUALR ARM (PULL SIDE) | PARALLEL ARM (PUSH SIDE) | TOP JAMB (PUSH SIDE) | ||||||||
| N900PBFA | O | Y | O | O | O | O | Y | Y | Y | |||||||
| N900PBFDA | ||||||||||||||||
| CR441 | O | Y | O | O | O | O | Y | Y | Y | |||||||
| CR441/TNDM | ||||||||||||||||
| CR441DA | ||||||||||||||||
| CR441DABC | ||||||||||||||||
| CR441EHO | STD | STD | STD | |||||||||||||
| CR801S | O | Y | O | O | O | O | Y | Y | Y | |||||||
| CR801SDA | ||||||||||||||||
| CR801 | ||||||||||||||||
| CR801DA | ||||||||||||||||
| 300PCOV | O | Y | O | n/a | n/a | n/a | Y | Y | Y | |||||||
| 300PBFCOV | ||||||||||||||||
| 300PBFDACOV | ||||||||||||||||
| 500PBF | O | Y | O | n/a | n/a | n/a | Y | Y | Y | |||||||
| 720 | O | Y | O | n/a | n/a | n/a | Y | Y | Y | |||||||
| 730 | ||||||||||||||||
| 730BC | ||||||||||||||||
| 740 | ||||||||||||||||
| 740BC | ||||||||||||||||
| 750 | ||||||||||||||||
| 750BC | ||||||||||||||||
| 420-P | O | Y | O | n/a | n/a | n/a | Y | Y | Y | |||||||
| SM430-P | ||||||||||||||||
| 430-P | ||||||||||||||||
| 430-PBC | ||||||||||||||||
| 440-P | ||||||||||||||||
| O - Optional | Y - Yes/Available | STD - Standard | *Not BHMA Certified | ||||||||||||||||
AVAILABLE MODEL NUMBERS AND COMBINATIONS
| Model/SKU | Attributes |
|---|---|
| 500PBF ALUM | Not Included, |
| 500PBF DURO | Not Included, Duranodic |
