900 FULL COVER | DC3200 | 8600FC | SC80FC | TC600 | 5200 | 1460FC | 8501 | 5100/5500 | --- | 1431 | 1900 | 3501 |
CR441 | DC3000/DC6200 | 8900 | SC70 | TC4300 | 5100 | 4041 | 9500 | 7100 | 441BC | 281/350 | --- | 4400 |
CR801S SLIM COVER | DC3200 X M76 | 8600 | SC80 | TC500 | 5200SLC | 1460-72 | 8301 | --- | --- | 1430 | --- | 3301 |
CR801 FULL COVER | DC3200 | 8600FC | SC80FC | TC400 | 5200FC | 1460FC | 8501 | 5300 | --- | 1431 | --- | 3501 |
300 | --- | 640/7300/7400 | --- | --- | 5300 | 1070/1370 | 1600 | 3100 | 900 | 1130 | --- | 50 |
500 | --- | 640/7300/7400 | --- | --- | 5300 | 1070/1370 | 1600 | --- | 900 | 1130 | --- | 50 |
700 | 4600 | 640 | --- | TC2200 | 5400 | --- | 9300 | --- | 500 | --- | 600 | 2300 |
400 | 4600 | 640 | --- | TC300 | 5400 | --- | 9300 | --- | 500 | --- | 500 | 2300 |

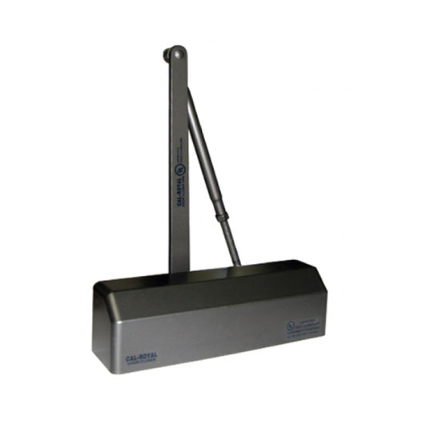

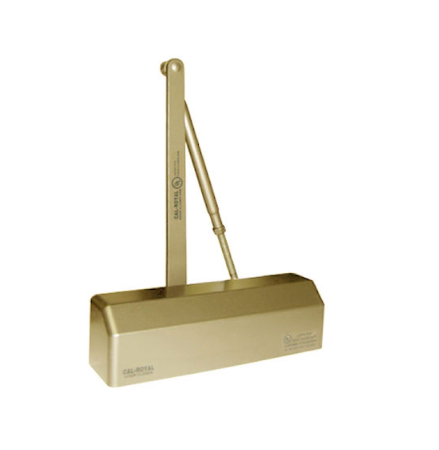

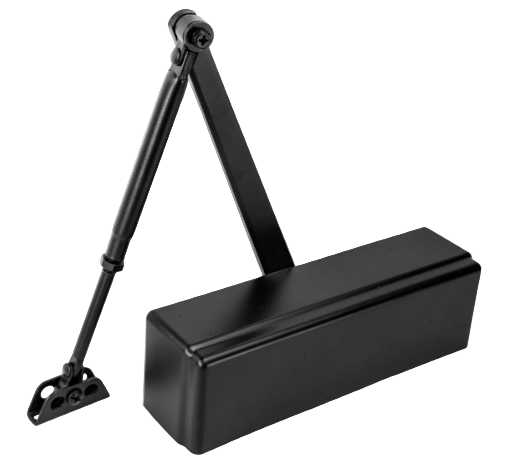

Cal-Royal 300P 300 Series Grade 1 ADA / Barrier Free Adjustable Door Closer With Full Cover
DETAILS: CAL-ROYAL 300P 300 SERIES GRADE 1 ADA / BARRIER FREE ADJUSTABLE DOOR CLOSER WITH FULL COVER
The Cal Royal 300 PCOV door closer is great for an interior and exterior applications alike. Being adjustable for power sizes 3- 6 for exterior and 1- 4 for interior, this door closer can be used for all standard applications. Beyond that, the Cal Royal 300 PCOV has a standard back check and a heavy duty rack and pinion, which is the gear mechanism of the closer. Here are some more features of the device.
Features
- Meets and Exceeds ANSI Standard 156.4 Grade 1
- Universal Hole Pattern Offering Versatility And Precision Engineering For New And Retrofit Market
- Multi Size Adjustable Commercial Door Closer
- Sizes 1 Thru 4 and 3 Thru 6
- Meeting Barrier Free Applications
- Hydraulic Door Closer with Standard Back Check
- Full Plastic Cover Is Standard Feature
- Optional Adjustable Delayed Action For Handicapped Or Elderly
- Full Cover Multi-size
- Full Feature Closer
- UL Listed, Conforms to Standards UL10C and UBC7- 2- 1997
- Lifetime Warranty
- Factory tested to meet or exceed ANSI Â Standard 156.4, Grade 1
- 300 PBFCOV: Non-sized, fully adjustable 1 through 4, (Barrier Free ADA) interior doors. Full cover. For 30- 185 lbs door weight.
- 300 PCOV: Non-sized, fully adjustable 3 through 6, exterior doors. Full cover. For 85- 260 lbs door weight.
- Standard adjustable back check intensity valve
- Hydraulic door closer with standard adjustable back-check valve
- Standard full plastic cover (2 5/8" W × 3" H × 10 1/8" L) COV/400
- Universal Mounting - standard size #4 Mounting Holes. (9 - 1/16")
- Finishes available: Alum, Dark Bronze (Duro), Gold, and US3
- Dual valve, closing and latching speed controlled by two separate regulating valves
- Universal application, non-handed, designed for all standard installations
- Reinforced type adjustable tube arm
- Rack and pinion operation contained in a high tensile precision cast with needle bearing aluminum housing for the highest quality
- High quality hydraulic fluid for high lubricity and constant lubrication
- The streamlined design permits installation on most commercial and residential applications without adaptors
- Power adjustment bracket on regular arms (15% adjustments, ± 7 1/2%)
- Hold open arm optional (Part #301/302) for regular & parallel installations
- Can be used for retrofit of Norton 1600 and Yale 50
Specifications
- Length of Closer Body
- 9- 3/4"
- Horizontal Mounting Holes
- 9- 1/16"
- Vertical Mounting Holes
- 3/4"
- Height of Closer Body
- 1- 3/4"
- Projection from Door
- 2- 7/8"
Style and Finish Availability
- 300PCOV
- Aluminum, Duranodic, Gold, and US3
- 300PBFCOV
- Aluminum, Duranodic, Gold, US15, US26D, US3, and US4
- 300PBFDACOV
- Aluminum, Duranodic, Gold, and US3
Cal-Royal has focused on providing 'Innovative and Value Added' hardware products and accessories to the builders industry since 1983. In accepting this charter Cal-Royal has continued to be the leader in import hardware. Their product offering is designed to comply with the Americans with Disabilities Act (ADA) and to encompass all levels of ANSI classification Grades 1 2 and 3 as well as UL requirements. They offer a complete line of mortise locks exit devices door closers hinges and many other hardware and trim products.
Exterior (and Vestibule) Door Width | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
24" | 30" | 36" | 42" | 48" | ||||||||||
300 Series |
|<— | Size 3 | —>| | |||||||||||
|<— | Size 4 | —>| | ||||||||||||
|<— | Size 5 | —>| | ||||||||||||
|<— | Size 6 | —>| | ||||||||||||
Minimum door Width |
Interior Door Width | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
24" | 34" | 38" | 48" | 54" | 60" | ||||||||||||
300 Series |
|<— | Size 2 | —>| | ||||||||||||||
|<— | Size 3 | —>| | |||||||||||||||
|<— | Size 4 | —>| | |||||||||||||||
|<— | Size 5 | —>| | |||||||||||||||
|<— | Size 6 | —>| | |||||||||||||||
Minimum door Width | Adjustable 1 thru 6 |
CAL-ROYAL DOOR CLOSERS CROSS REFERENCES CHART
DOOR CLOSER ARM AND MOUNTING REFERENCE
MODEL | ARM | MOUNTING | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HOLD OPEN | REGULAR | PARALLEL | SUPER RIGID | TRACK | TRACK (HOLD-OPEN) | REGUALR ARM (PULL SIDE) | PARALLEL ARM (PUSH SIDE) | TOP JAMB (PUSH SIDE) | ||||||||
N900PBFA | O | Y | O | O | O | O | Y | Y | Y | |||||||
N900PBFDA | ||||||||||||||||
CR441 | O | Y | O | O | O | O | Y | Y | Y | |||||||
CR441/TNDM | ||||||||||||||||
CR441DA | ||||||||||||||||
CR441DABC | ||||||||||||||||
CR441EHO | STD | STD | STD | |||||||||||||
CR801S | O | Y | O | O | O | O | Y | Y | Y | |||||||
CR801SDA | ||||||||||||||||
CR801 | ||||||||||||||||
CR801DA | ||||||||||||||||
300PCOV | O | Y | O | n/a | n/a | n/a | Y | Y | Y | |||||||
300PBFCOV | ||||||||||||||||
300PBFDACOV | ||||||||||||||||
500PBF | O | Y | O | n/a | n/a | n/a | Y | Y | Y | |||||||
720 | O | Y | O | n/a | n/a | n/a | Y | Y | Y | |||||||
730 | ||||||||||||||||
730BC | ||||||||||||||||
740 | ||||||||||||||||
740BC | ||||||||||||||||
750 | ||||||||||||||||
750BC | ||||||||||||||||
420-P | O | Y | O | n/a | n/a | n/a | Y | Y | Y | |||||||
SM430-P | ||||||||||||||||
430-P | ||||||||||||||||
430-PBC | ||||||||||||||||
440-P | ||||||||||||||||
O - Optional | Y - Yes/Available | STD - Standard | *Not BHMA Certified |
AVAILABLE MODEL NUMBERS AND COMBINATIONS
Model/SKU | Attributes |
---|---|
300PBFCOV ALUM | |
300PBFCOV DURO | Duranodic, |
300PBFCOV GOLD | Gold, |
300PBFDACOV AL | |
300PBFDACOV DU | Duranodic, |
300PBFDACOV GO | Gold, |
300PCOV ALUM | |
300PCOV DURO | Duranodic, |
300PCOV GOLD | Gold, |
300PBFCOV US3 | |
300PBFDACOV US3 | |
300PCOV US3 |
