Cal-Royal 300-PBFDACOV , Multi-sized 1 - 4, Full Cover Door Closer – Golden Locks Inc .

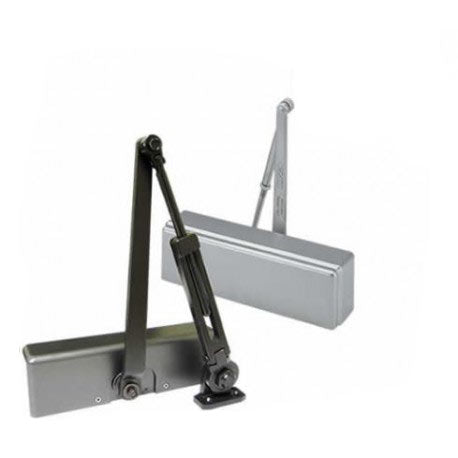

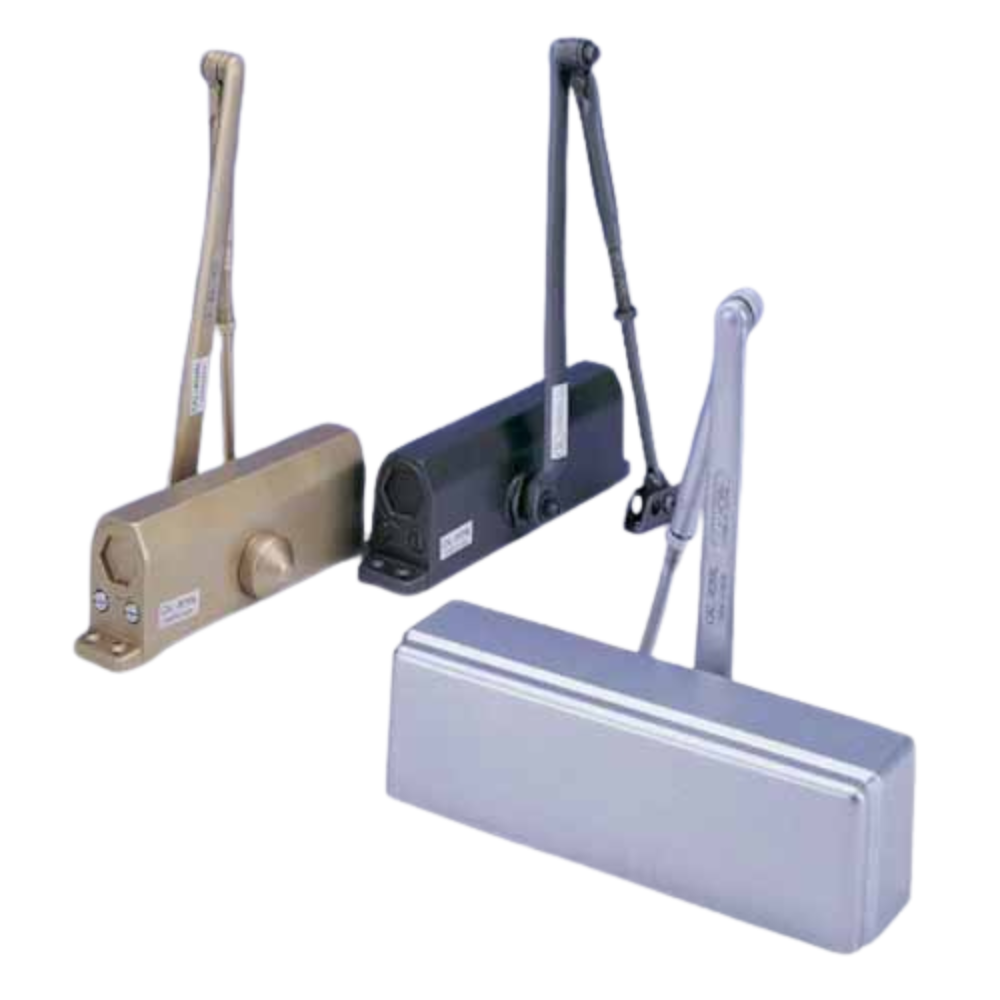

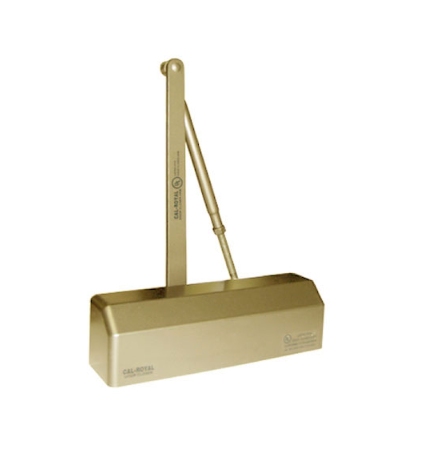

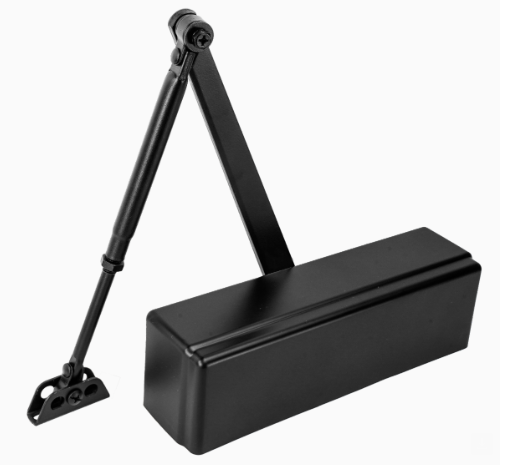

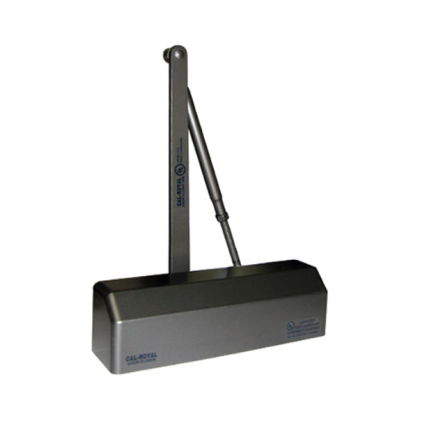

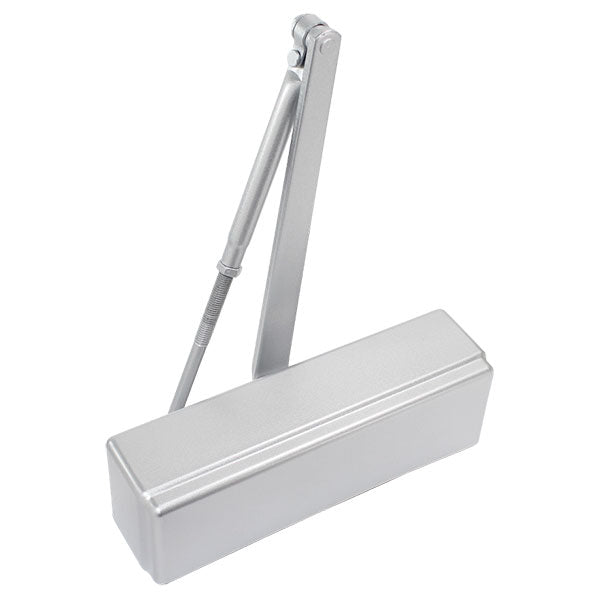

Cal-Royal 300-PBFDACOV , Multi-sized 1 - 4, Full Cover Door Closer

CAL ROYAL
Door Closers
$95.80
Door Handing
Finish :
Aluminum
Gold
Bright Brass
Duro- Dark Bronze
L1 (BLACK)

DETAILS: CAL-ROYAL 300PBFCOV SERIES GRADE 1 ADA / BARRIER FREE ADJUSTABLE DOOR CLOSER WITH FULL COVER

The Cal Royal 300 PCOV door closer is great for an interior and exterior applications alike. Being adjustable for power sizes 3- 6 for exterior and 1- 4 for interior, this door closer can be used for all standard applications. Beyond that, the Cal Royal 300 PCOV has a standard back check and a heavy duty rack and pinion, which is the gear mechanism of the closer. Here are some more features of the device.

Features

  • Meets and Exceeds ANSI Standard 156.4 Grade 1
  • Universal Hole Pattern Offering Versatility And Precision Engineering For New And Retrofit Market
  • Multi Size Adjustable Commercial Door Closer
  • Sizes 1 Thru 4 and 3 Thru 6
  • Meeting Barrier Free Applications
  • Hydraulic Door Closer with Standard Back Check
  • Full Plastic Cover Is Standard Feature
  • Optional Adjustable Delayed Action For Handicapped Or Elderly
  • Full Cover Multi-size
  • Full Feature Closer
  • UL Listed, Conforms to Standards UL10C and UBC7- 2- 1997
  • Lifetime Warranty
  • Factory tested to meet or exceed ANSI  Standard 156.4, Grade 1
  • 300 PBFCOV: Non-sized, fully adjustable 1 through 4, (Barrier Free ADA) interior doors. Full cover. For 30- 185 lbs door weight.
  • 300 PCOV: Non-sized, fully adjustable 3 through 6, exterior doors. Full cover. For 85- 260 lbs door weight.
  • Standard adjustable back check intensity valve
  • Hydraulic door closer with standard adjustable back-check valve
  • Standard full plastic cover (2 5/8" W × 3" H × 10 1/8" L) COV/400
  • Universal Mounting - standard size #4 Mounting Holes. (9 - 1/16")
  • Finishes available: Alum, Dark Bronze (Duro), Gold, and US3
  • Dual valve, closing and latching speed controlled by two separate regulating valves
  • Universal application, non-handed, designed for all standard installations
  • Reinforced type adjustable tube arm
  • Rack and pinion operation contained in a high tensile precision cast with needle bearing aluminum housing for the highest quality
  • High quality hydraulic fluid for high lubricity and constant lubrication
  • The streamlined design permits installation on most commercial and residential applications without adaptors
  • Power adjustment bracket on regular arms (15% adjustments, ± 7 1/2%)
  • Hold open arm optional (Part #301/302) for regular & parallel installations
  • Can be used for retrofit of Norton 1600 and Yale 50

Specifications

Length of Closer Body
9- 3/4"
Horizontal Mounting Holes
9- 1/16"
Vertical Mounting Holes
3/4"
Height of Closer Body
1- 3/4"
Projection from Door
2- 7/8"

Style and Finish Availability

300PCOV
Aluminum, Duranodic, Gold, and US3,L1 (BLACK)
300PBFCOV
Aluminum, Duranodic, Gold, US15, US26D, US3, and US4 , L1 (BLACK)
300PBFDACOV
Aluminum, Duranodic, Gold, and US3, L1 (BLACK)

Cal-Royal has focused on providing 'Innovative and Value Added' hardware products and accessories to the builders industry since 1983. In accepting this charter Cal-Royal has continued to be the leader in import hardware. Their product offering is designed to comply with the Americans with Disabilities Act (ADA) and to encompass all levels of ANSI classification Grades 1 2 and 3 as well as UL requirements. They offer a complete line of mortise locks exit devices door closers hinges and many other hardware and trim products.

Exterior (and Vestibule) Door Width
24" 30" 36" 42" 48"
300
Series
|<— Size 3 —>|
|<— Size 4 —>|
|<— Size 5 —>|
|<— Size 6 —>|
Minimum door Width

Interior Door Width
24" 34" 38" 48" 54" 60"
300
Series
|<— Size 2 —>|
|<— Size 3 —>|
|<— Size 4 —>|
|<— Size 5 —>|
|<— Size 6 —>|
Minimum door Width Adjustable 1 thru 6

CAL-ROYAL DOOR CLOSERS CROSS REFERENCES CHART

Cal-Royal
Corbin Russwin
Dorma
Dor-O-Matic
Global
Hager
Lcn
Norton
Pdq
Parker
Sargent
Taylor
Yale
900 FULL COVER DC3200 8600FC SC80FC TC600 5200 1460FC 8501 5100/5500 --- 1431 1900 3501
CR441 DC3000/DC6200 8900 SC70 TC4300 5100 4041 9500 7100 441BC 281/350 --- 4400
CR801S SLIM COVER DC3200 X M76 8600 SC80 TC500 5200SLC 1460-72 8301 --- --- 1430 --- 3301
CR801 FULL COVER DC3200 8600FC SC80FC TC400 5200FC 1460FC 8501 5300 --- 1431 --- 3501
300 --- 640/7300/7400 --- --- 5300 1070/1370 1600 3100 900 1130 --- 50
500 --- 640/7300/7400 --- --- 5300 1070/1370 1600 --- 900 1130 --- 50
700 4600 640 --- TC2200 5400 --- 9300 --- 500 --- 600 2300
400 4600 640 --- TC300 5400 --- 9300 --- 500 --- 500 2300

DOOR CLOSER ARM AND MOUNTING REFERENCE

MODEL ARM MOUNTING
HOLD OPEN REGULAR PARALLEL SUPER RIGID TRACK TRACK (HOLD-OPEN) REGUALR ARM (PULL SIDE) PARALLEL ARM (PUSH SIDE) TOP JAMB (PUSH SIDE)
N900PBFA O Y O O O O Y Y Y
N900PBFDA
CR441 O Y O O O O Y Y Y
CR441/TNDM
CR441DA
CR441DABC
CR441EHO STD STD STD
CR801S O Y O O O O Y Y Y
CR801SDA
CR801
CR801DA
300PCOV O Y O n/a n/a n/a Y Y Y
300PBFCOV
300PBFDACOV
500PBF O Y O n/a n/a n/a Y Y Y
720 O Y O n/a n/a n/a Y Y Y
730
730BC
740
740BC
750
750BC
420-P O Y O n/a n/a n/a Y Y Y
SM430-P
430-P
430-PBC
440-P
O - Optional | Y - Yes/Available | STD - Standard | *Not BHMA Certified

AVAILABLE MODEL NUMBERS AND COMBINATIONS

Model/SKU Attributes
300PBFCOV ALUM
300PBFCOV DURO Duranodic,
300PBFCOV GOLD Gold,
300PBFDACOV AL
300PBFDACOV DU Duranodic,
300PBFDACOV GO Gold,
300PCOV ALUM
300PCOV DURO Duranodic,
300PCOV GOLD Gold,
300PBFCOV US3
300PBFDACOV US3
300PCOV US3
