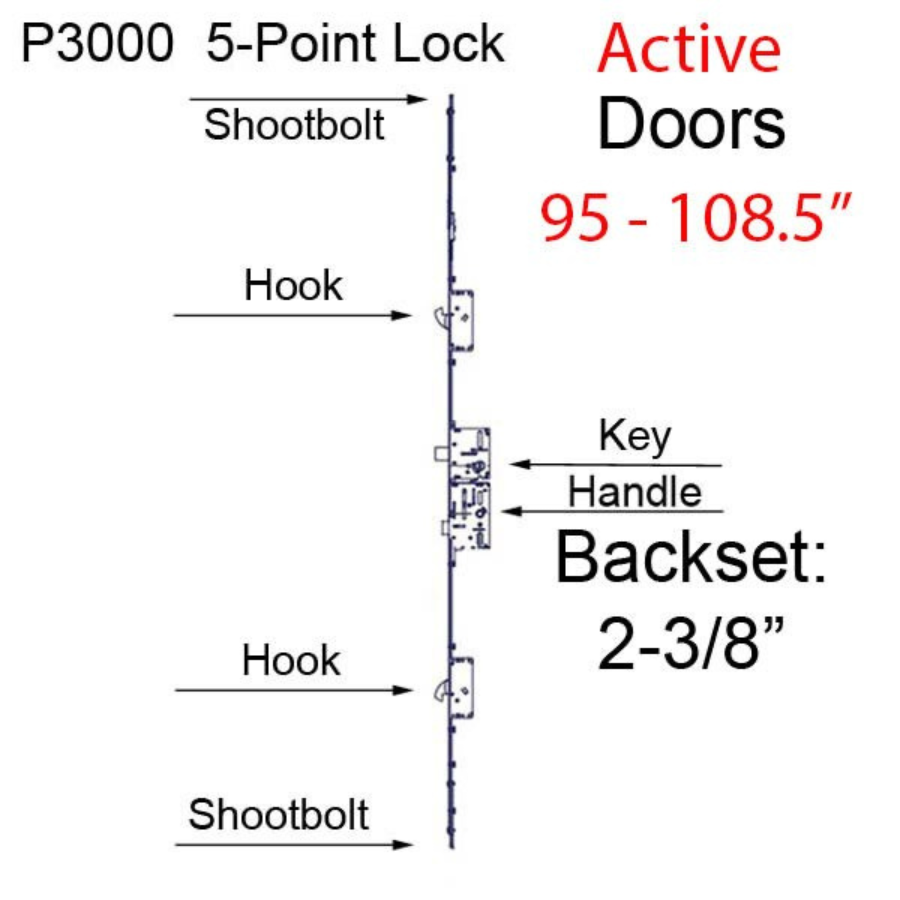

Amesbury Multi-Point Lock P3000 Active 5-Point Rhino Hook and Shootbolts 60mm Backset

Active Rhino hook and Shootbolts fit Doors from 95 to 108-1/2 in height.
Top Shootbolt Tip: #20-3467 (not included with lock - must be ordered separately)

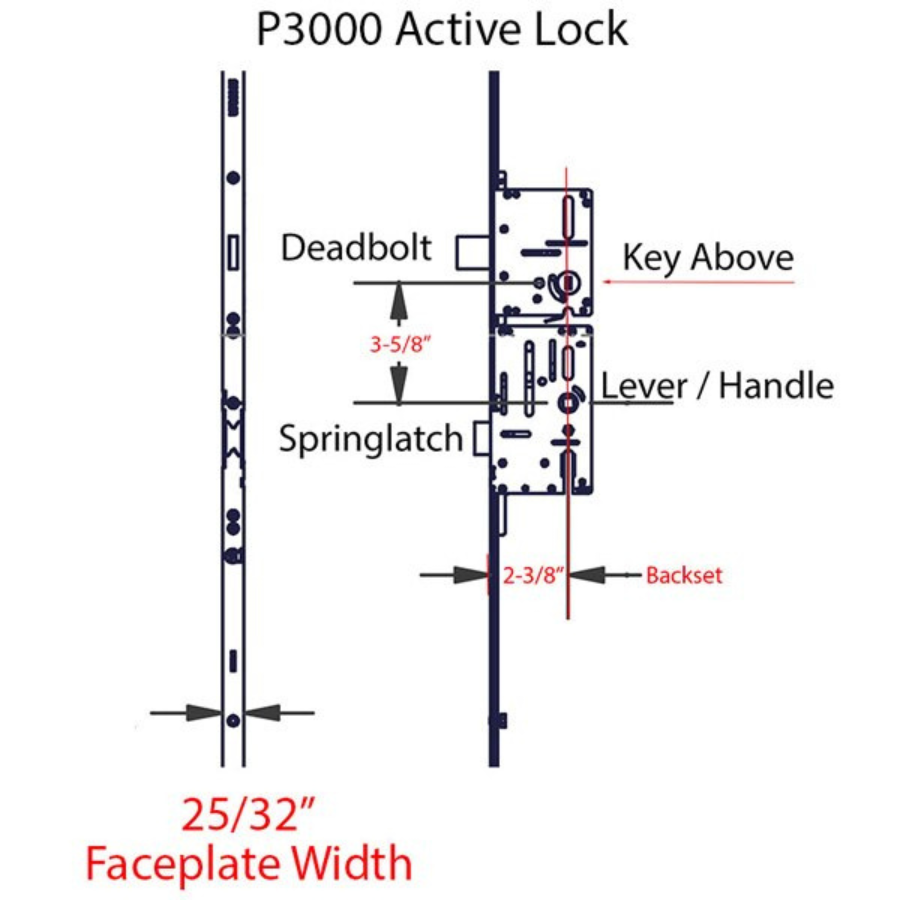

Cylinder Type: American, Key Above Lever
Faceplate Width: 25/32 inch (20mm)
Backset : 2-3/8 inch (60mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height: 36 inches (914.4mm)
Handle PZ - Cylinder spacing: 3-5/8 inch (92mm)
Spindle Hub: 5/16 inch (8mm)

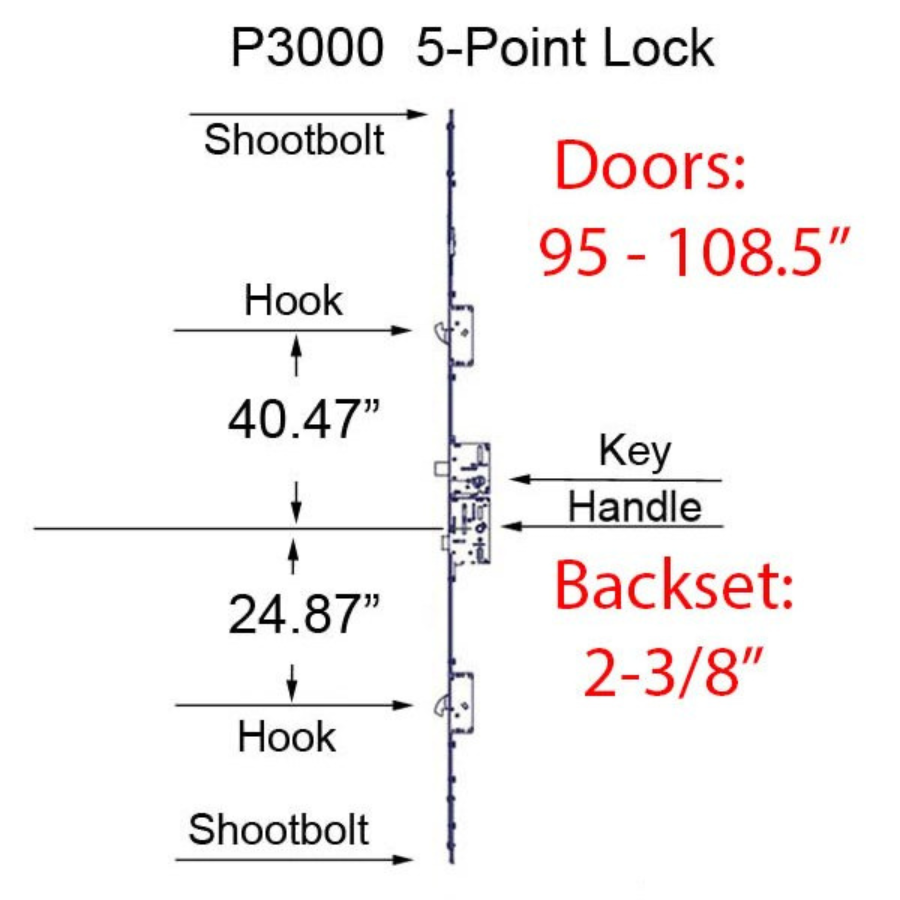

Lower Hook Position: 24.87 inches (631.698mm)
Upper Hook Position: 40.47 inches (1,027.938mm)
Top Shootbolt Tip: # 3467 (not included with lock)
Lower Assembly Only: 20-
Upper Assembly Only: A
Markings: 32023
Tongue versions are used with Astragals. The Rhino Hook and Shootbolt can be used with or without astragal.
How To Operate P3000 Lock - This is a different design than most Multipoint Locks
Sometimes referred to as babysitter lock because the deadbolt can be locked without engaging the other locking devices.
1. To Lock the Door: Throw the deadbolt, then, if desired lift the handle to engage the Additional Locks
2. To Unlock Door: Retract the deadbolt and push the lever down to open
This lock is Deadbolt activated, use the deadbolt first to lock or unlock the door.

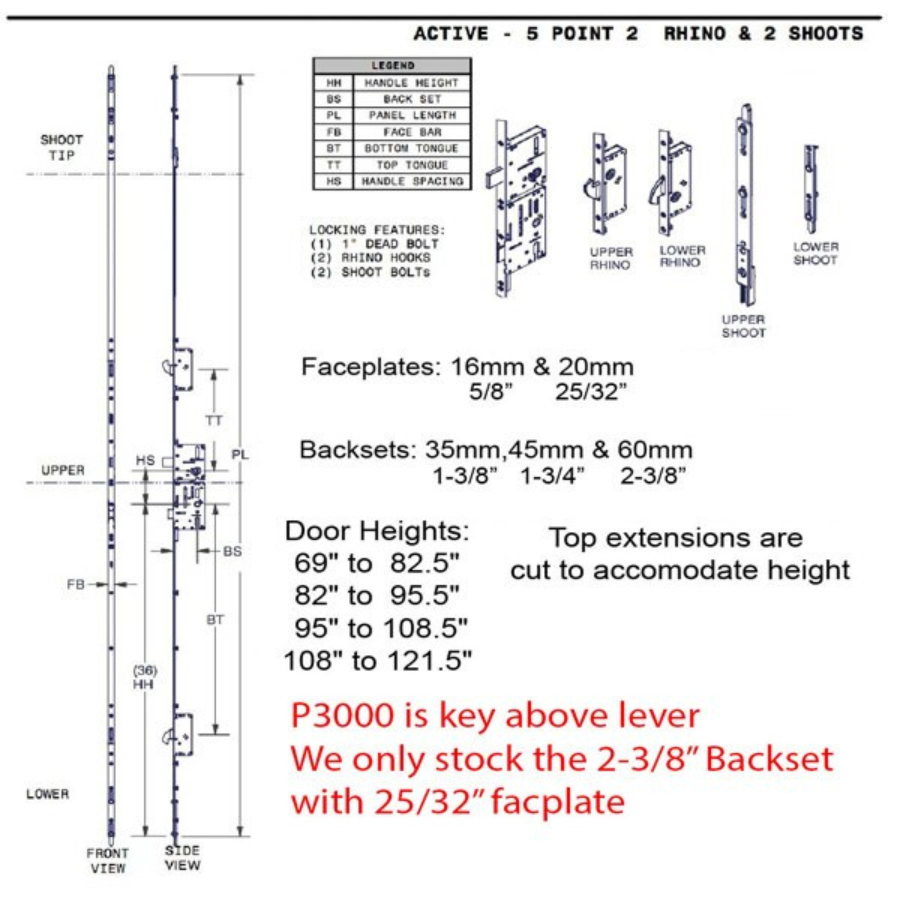

Related P3000 20mm Active Rhino 60/92 Complete Assembly, less top shootbolt tip:
676032021 20mm Active 5-point hook, 60/92 69.0 - 82.5"
676032022 20mm Active 5-point hook, 60/92 82.0" - 95.5”
676032023 20mm Active 5-point hook, 60/92 95.0” - 108.5"
676032024 20mm Active 5-point hook, 60/92 108.0 - 121.5"
Related P3000 20mm Passive Rhino 60/92 Complete Assembly, less top shootbolt tip:
656032013 20mm Passive 60/92 69.0 - 82.5"
656032014 20mm Passive 60/92 82.0" - 95.5”
656032015 20mm Passive 60/92 95.0” - 108.5"
656032016 20mm Passive 60/92 108.0 - 121.5"
Related P3000 Hardware:
20-3467: Shootbolt Tip
3475-82: Latch and Deadbolt strike plate for doors with T-astragal
398005 - Latch Ramp, Custom - SS (1) 1x $ 23.50
2098911- Flat Shootbolt Strike, Top & Bottom (4) 4 x $ 7.50
