Alarm Lock PL6500/PL6600 Networx Mortise Lock, Prox Only,Finish-Satin – Golden Locks Inc .
Sale

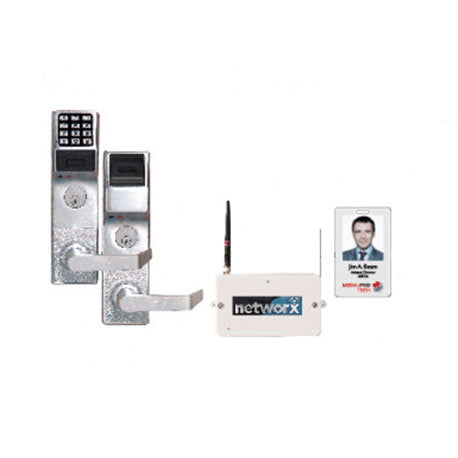

Alarm Lock PL6500/PL6600 Networx Mortise Lock, Prox Only,Finish-Satin Chrome

Alarm Lock
Alarm Lock MORTISE LOCKS
$2,500.00 $2,301.65
Door Handing
Door Position Switch :
Handing :

PL6500CRL/26D

DETAILS: ALARM LOCK PL6500/PL6600 NETWORX MORTISE LOCK, PROX ONLY,FINISH-SATIN CHROME

PDL6500/PL6500/PDL6600 - Prox and Digital mortise lock supporting 5,000 PIN user codes (3-6 digits) and HID

Proximity cards. 500 scheduled events and 35,000 event audit log.

Features

  • Trilogy Networx Locks communicate wirelessly via Ethernet or 802.11B/G
  • Unsurpassed 5-year+ battery life
  • Trilogy Networx and gateway modules have an integral transceiver for highly-efficient 900MHz bidirectional communications
  • In 10 seconds, activate emergency global lockdown/unlock from the Networx PC or any Networx lock activated from any lock, with or without the PC online by any authorized user with global permissions
  • System-wide free-passage enable or disable
  • Locks support up to 5000 users with 3-6 digit numeric PIN codes and PDL-Series also support prox ID card users
  • On demand, in seconds, wirelessly change users, schedules, lock features or retrieve 35,000 events/lock from any networked PC
  • Unattended programming updates or event log retrievals can be scheduled to run automatically
  • Seamless upgrade path for original Trilogy users
  • Secure 128bit AES PC encryption and proprietary RF-link lock-to-Gateway communication encryption
  • Remote System Management
  • Wireless locks are fully keypad programmable
  • Free Alarm Lock DL-WINDOWS software doesn't require a dedicated computer or a special computer network or costly server software licenses
  • Minimizing hardware & installation costs, a single gateway module can interface between the PC network and up to 63 Networx locks
  • Wall- or ceiling-mountable, compact gateway modules and are available in wireless/hardwired and wired-only versions
  • Networx Gateways' wireless coverage performance equals or surpasses that of 802.11
  • Up to 50 wall- or ceiling-mountable, compact gateway modules can be used per account and are available in wireless/hardwired and wired-only versions
  • For the fastest most reliable networked system, in discovery setup mode, the system will locate and DL-WINDOWS will display each lock's signal strength at each installed gateway
  • Lock programming, user- and usage-data are stored locally at the battery-powered lock

Specifications

Door Thickness
Fits 15/8" to 1 7/8"
Backset
2 3/4" standard
Strike
1 1/4" x 4 7/8" strike included
Handing
Specify RH or LH when ordering. Lock is reversible in the field.
Power
4 C-Cell batteries (included)
Keypad
All metal, 12 button. Basic functions programmed through keypad
Door Prep
Standard ANSI A115 mortise prep, modified by adding additional through-bolt holes
Compliances
Steelcase lock body meets 131131A specifications for Grade 1 locks UL Listed 10C Positive Pressure Specification. FCC Certified ADA compliant levers
Functions
Classroom function features stainless steel latch bolt With 3/4" (1.91cm) projection and deadlocking latch.
Cylinder
1 3/8" (3.5cm) mortise cylinder supplied. Will accept 13/8" to 1 1/2" (3.5 - 3.8cm) mortise cylinder.
Cams
Classroom function supplied with straight earn. Cams for other manufacturer's cylinder are available. See 'Mortise Lock accessories' for part numbers & manufacturers.

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

AVAILABLE MODEL NUMBERS AND COMBINATIONS

Model/SKU Attributes
PL6500CRL/26D Left Hand, Not Included
PL6500CRR/26D Right Hand, Not Included
PL6600CRL/26D Left Hand, Included
PL6600CRR/26D Right Hand, Included
